XR510

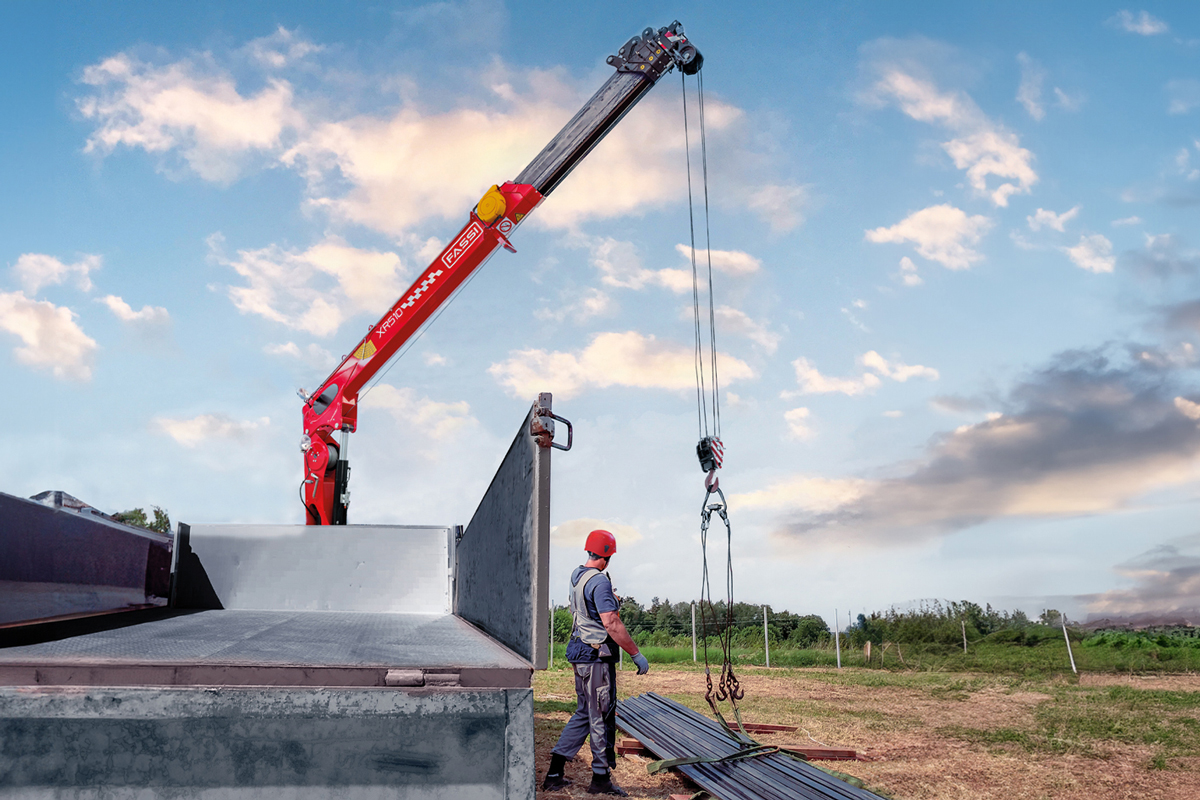

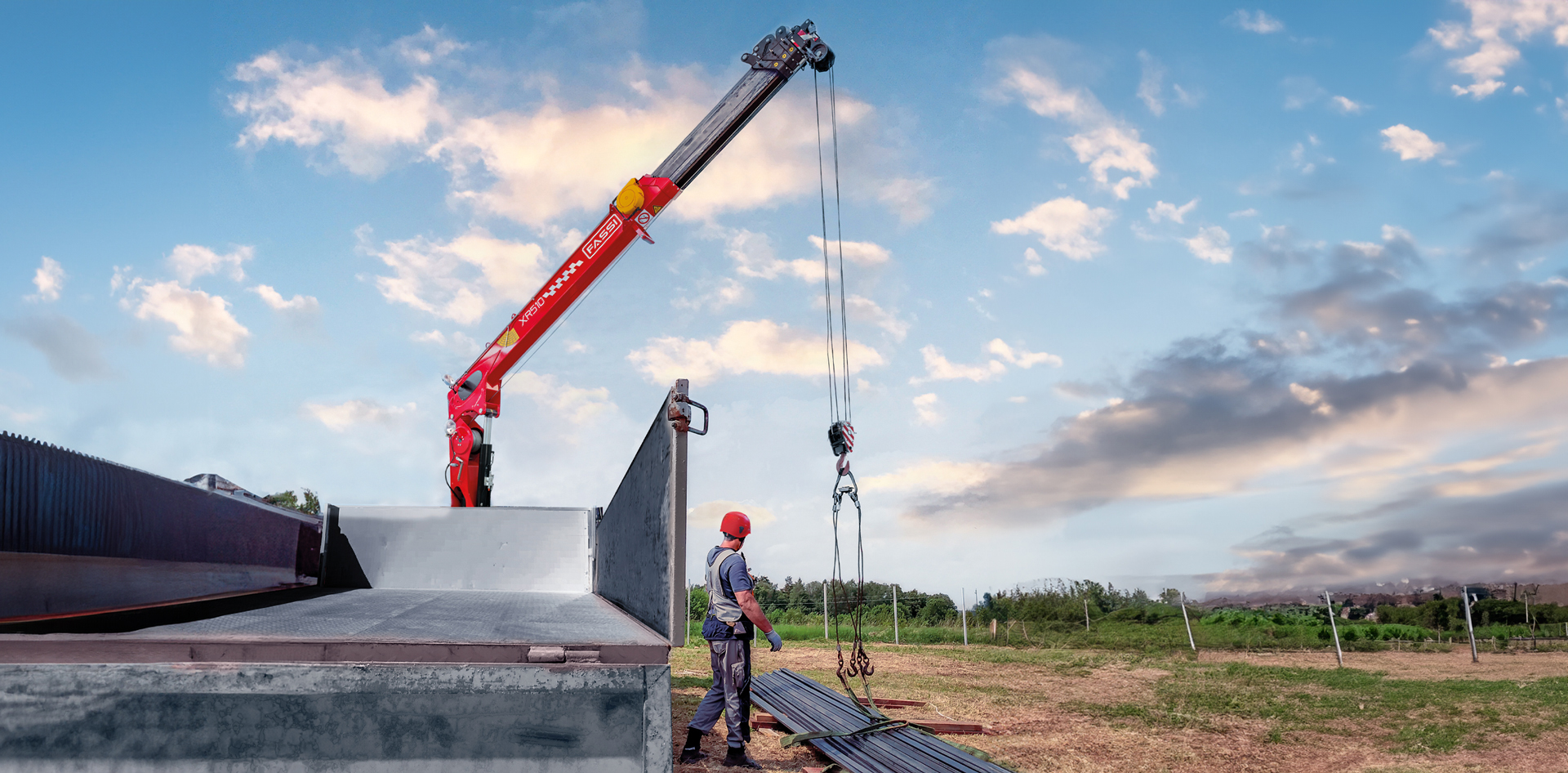

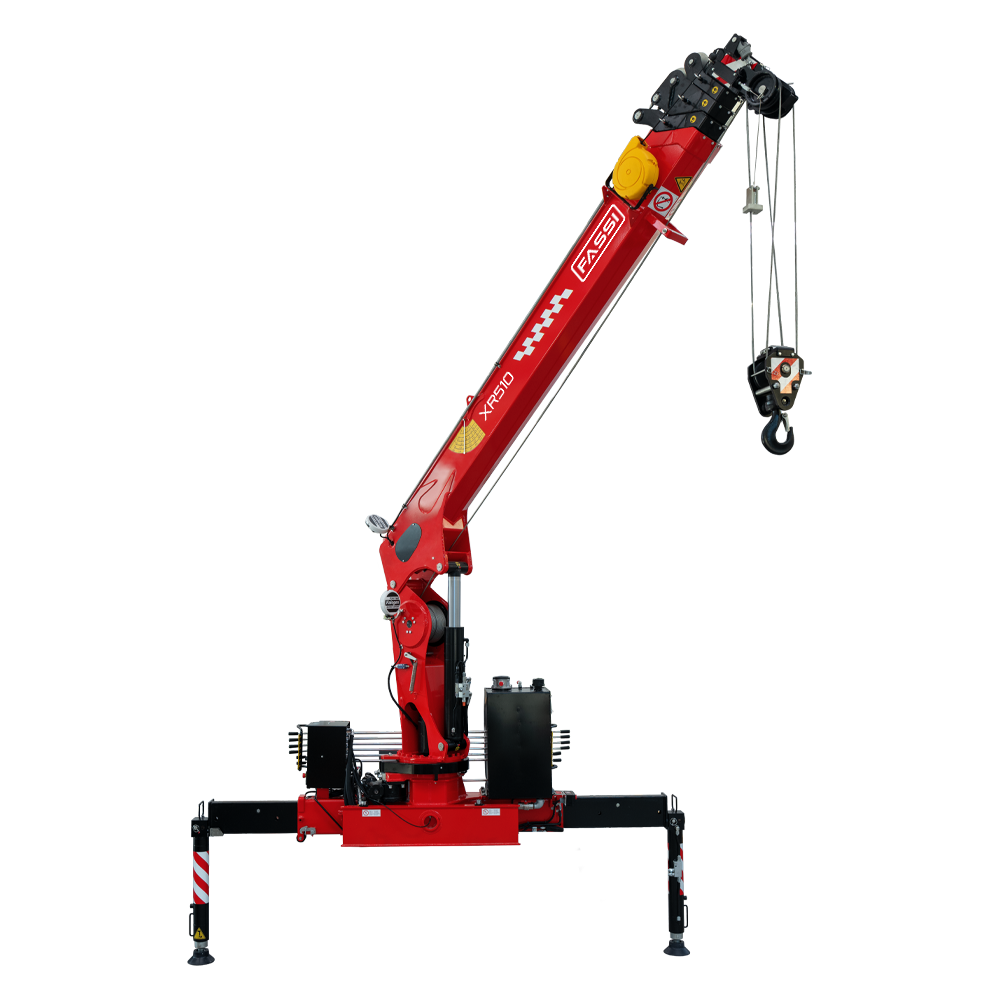

The Fassi XR510 is a single-boom crane from the XR series, designed to lift exclusively by means of a winch, a fundamental element of the machine, which is positioned inside the column. With a maximum lifting capacity of 5.10 tm and an outreach of up to 13.26 m, it combines robustness, versatility and innovative technology.

The hexagonal telescopic arm made of ultra high-strength steel guarantees impressive load capacity while maintaining lightness and smooth motion, supported by a valve that reduces friction and increases precision. Continuous 360° rotation on a compact slew ring ensures smooth and precise movement even on uneven terrain, with a wide and constant operating angle.

The FX200 electronic system monitors load conditions and includes an automatic block in the event of overload, ensuring complete safety for operator and machine. The hydraulic stabilisers, with optional rotation, facilitate fittings to vehicles, while the control levers with advanced valves provide extremely responsive control.

Model specifications

Modello	Lifting capacity	Hydraulic outreach	Telescopic extension speed	Telescopic boom retraction speed	Lifting speed	Angle of rotation	Rotation speed	Working pressure	Pump capacity	Direct lifting winch	Hydraulic winch speed	Extension of stabilisers	Oil tank capacity	Weight of crane with stabilisers
XR513	5.100 kg at 2,50 m	retracted 3,50 m ~ extended 8,30 m	extension 4,8 m / 20 sec	retraction 4,8 m / 23 sec	1 to 78° = 10 sec	360° continuous	7,2°/ sec	22,0 MPa	60 l/m	1.250 daN	53 meters per minute (single pull)	min 2190 mm ~ max 5100 mm	130 l with level indicator	2085 kg
XR514	5.100 kg at 2,45 m	retracted 3,58 m ~ extended 10,78 m	extension 7,2 m / 20 sec	retraction 7,2 m / 23 sec	1 to 78° = 10 sec	360° continuous	7,2°/ sec	22,0 MPa	60 l/m	1.250 daN	53 meters per minute (single pull)	min 2190 mm ~ max 5100 mm	130 l with level indicator	2225 kg
XR515	5.100 kg at 2,40 m	retracted 3,64 m ~ extended 13,26 m	extension 9,6 m / 20 sec	retraction 9,6 m / 23 sec	1 to 78° = 10 sec	360° continuous	7,2°/ sec	22,0 MPa	60 l/m	1.250 daN	53 meters per minute (single pull)	min 2190 mm ~ max 5100 mm	130 l with level indicator	2300 kg

Modello	Lifting capacity	Hydraulic outreach	Telescopic extension speed	Telescopic boom retraction speed	Lifting speed	Angle of rotation	Rotation speed	Working pressure	Pump capacity	Direct lifting winch	Winch lifting speed	Extension of stabilisers	Oil tank capacity	Weight of crane with stabilisers
XR513	11243 lbs at 8’2”	retracted 11’6” ~ extended 27’3”	extension 15’9” / 20 sec	retraction 15’9” / 23 sec	1 to 78° = 10 sec	360° continuous	7,2°/ sec	3191 psi	15,9 gal/min	3528 lbf	151 feet per minute (single pull)	min 7’2” ~ max 16’9”	34,3 gal with level indicator	4595 lbs
XR514	11243 lbs at 8’	retracted 11’9” ~ extended 35’4”	extension 23’7” / 20 sec	retraction 23’7” / 23 sec	1 to 78° = 10 sec	360° continuous	7,2°/ sec	3191 psi	15,9 gal/min	3528 lbf	151 feet per minute (single pull)	min 7’2” ~ max 16’9”	34,3 gal with level indicator	4905 lbs
XR515	11243 lbs at 7’10”	retracted 12’ ~ extended 43’6”	extension 31’6” / 20 sec	retraction 31’6” / 20 sec	1 to 78° = 10 sec	360° continuous	7,2°/ sec	3191 psi	15,9 gal/min	3528 lbf	151 feet per minute (single pull)	min 7’2” ~ max 16’9”	34,3 gal with level indicator	5070 lbs

Safety device: FX200 load limiter, visual indication of lifting capacity at 90% and 100%, acoustic warning device, overload alarm, hydraulic safety valves, status valves and non-return valves, spirit level indicator
