XR310

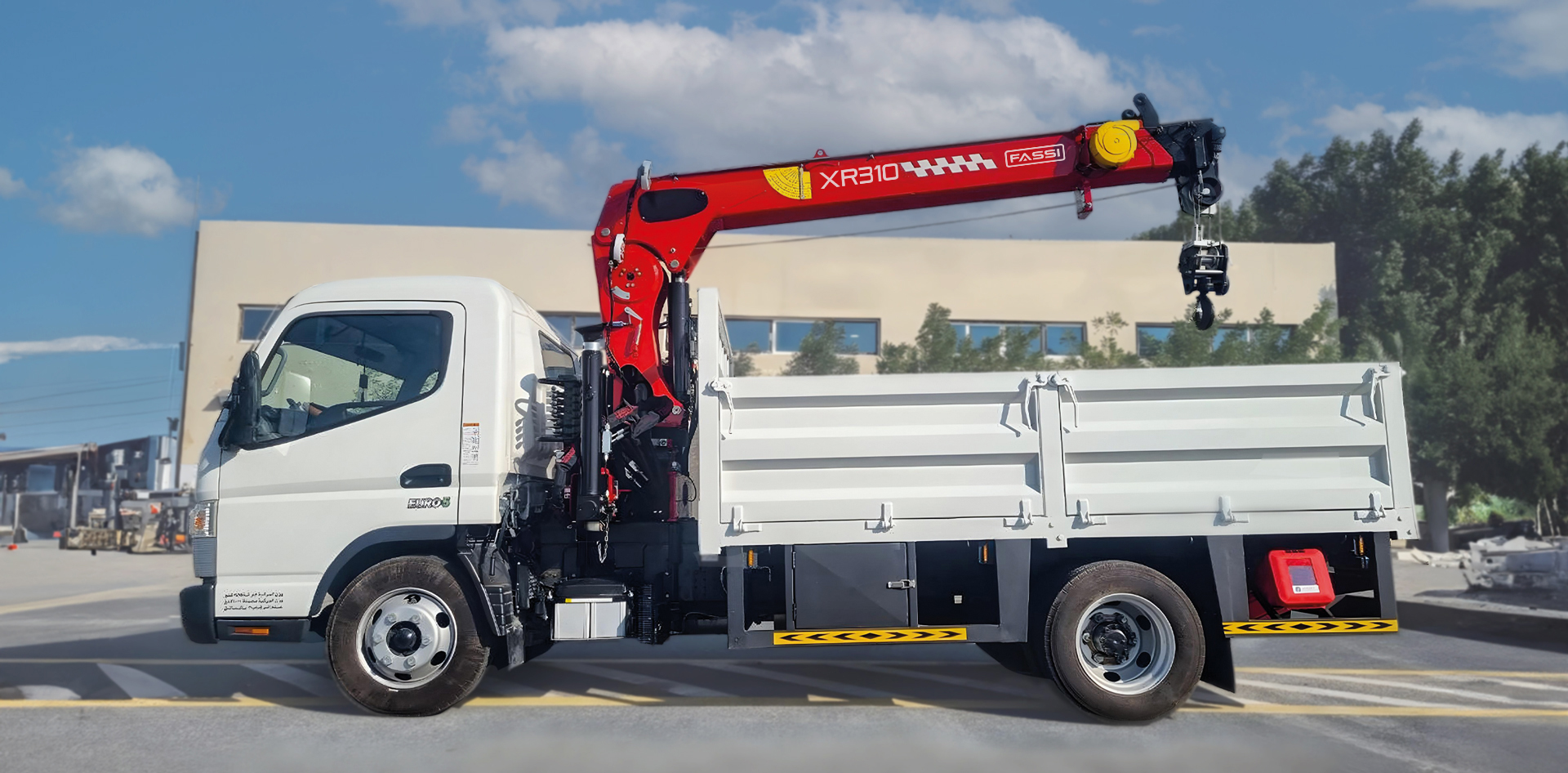

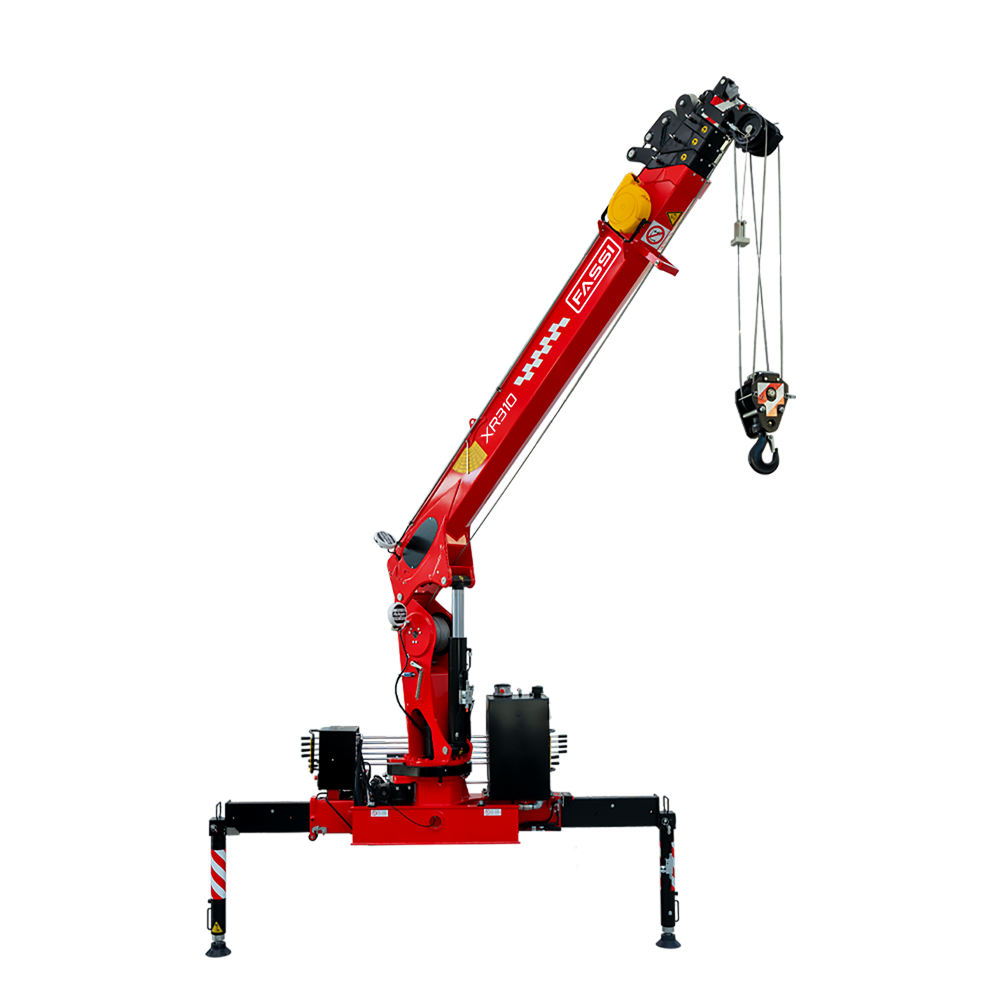

The Fassi XR310 is a compact and functional single-boom crane designed for applications requiring ease of use and reliability. With a lifting capacity of 3.10 tm up to 2.55 m and a maximum outreach of 12.25 m, it delivers solid performance and compact dimensions.

It is equipped with the FX200 control unit and a modern and efficient stability system, capable of handling both the crane's outrigger rams and any supplementary stabilisers. The winch, positioned inside the column, ensures safe and precise lifting, while continuous 360° rotation guarantees ample freedom of movement in any operating environment.

Model specifications

Modello	Lifting capacity	Hydraulic outreach	Telescopic extension speed	Telescopic boom retraction speed	Lifting speed	Angle of rotation	Rotation speed	Working pressure	Pump capacity	Direct lifting winch	Winch lifting speed	Extension of stabilisers	Oil tank capacity	Weight of crane with stabilisers
XR313	3100 kg at 2,55 m	retracted 3,28 m ~ extended 7,68 m	extension 4,40 m / 20 sec	retraction 4,40 m / 16 sec	1 to 76° = 8 sec	360 continuous	7,2°/ sec	21,5 MPa	40 l/min	1.000 daN	67,7 meters per minute	min 1970 mm ~ max 4450 mm	100 l with level indicator	1485 kg
XR314	3.100 kg at 2,50 m	retracted 3,36 m ~ extended 9,96 m	extension 6,60 m / 20 sec	retraction 6,60 m / 16 sec	1 to 76° = 8 sec	360 continuous	7,2°/ sec	21,5 MPa	40 l/min	1.000 daN	67,7 meters per minute	min 1970 mm ~ max 4450 mm	100 l with level indicator	1580 kg
XR315	3.100 kg at 2,45 m	retracted 3,45 m ~ extended 12,25 m	extension 8,80 m / 20 sec	retraction 8,80 m / 16 sec	1 to 76° = 8 sec	360 continuous	7,2°/ sec	21,5 MPa	40 l/min	1.000 daN	67,7 meters per minute	min 1970 mm ~ max 4450 mm	100 l with level indicator	1650 kg

Modello	Lifting capacity	Hydraulic outreach	Telescopic extension speed	Telescopic boom retraction speed	Lifting speed	Angle of rotation	Rotation speed	Working pressure	Pump capacity	Direct lifting winch	Winch lifting speed	Extension of stabilisers	Oil tank capacity	Weight of crane with stabilisers
XR313	6834 lbs at 8 ft 4 in	retracted 10 ft 9 in ~ extended 25 ft 2 in	extension 14 ft 5 in / 20 sec	retraction 14 ft 5 in / 16 sec	1 to 76° = 8 sec	360° continuous	7,2°/ sec	3118 psi	10,6 gal/min	2248 lbf	222 feet per minute	min 6 ft 6 in ~ max 14 ft 7 in	26,4 gallons with level indicator	3274 lbs
XR314	6834 lbs at 8 ft 2 in	retracted 11 ft ~ extended 32 ft 8 in	extension 21 ft 8 in / 20 sec	retraction 21 ft 8 in / 16 sec	1 to 76° = 8 sec	360° continuous	7,2°/ sec	3118 psi	10,6 gal/min	2248 lbf	222 feet per minute	min 6 ft 6 in ~ max 14 ft 7 in	26,4 gallons with level indicator	3483 lbs
XR315	6834 lbs at 8 ft	retracted 11 ft 4 in ~ extended 40 ft 2 in	extension 28 ft 10 in / 20 sec	retraction 28 ft 10 in / 16 sec	1 to 76° = 8 sec	360° continuous	7,2°/ sec	3118 psi	10,6 gal/min	2248 lbf	222 feet per minute	min 6 ft 6 in ~ max 14 ft 7 in	26,4 gallons with level indicator	3638 lbs
