F335A e-dynamic

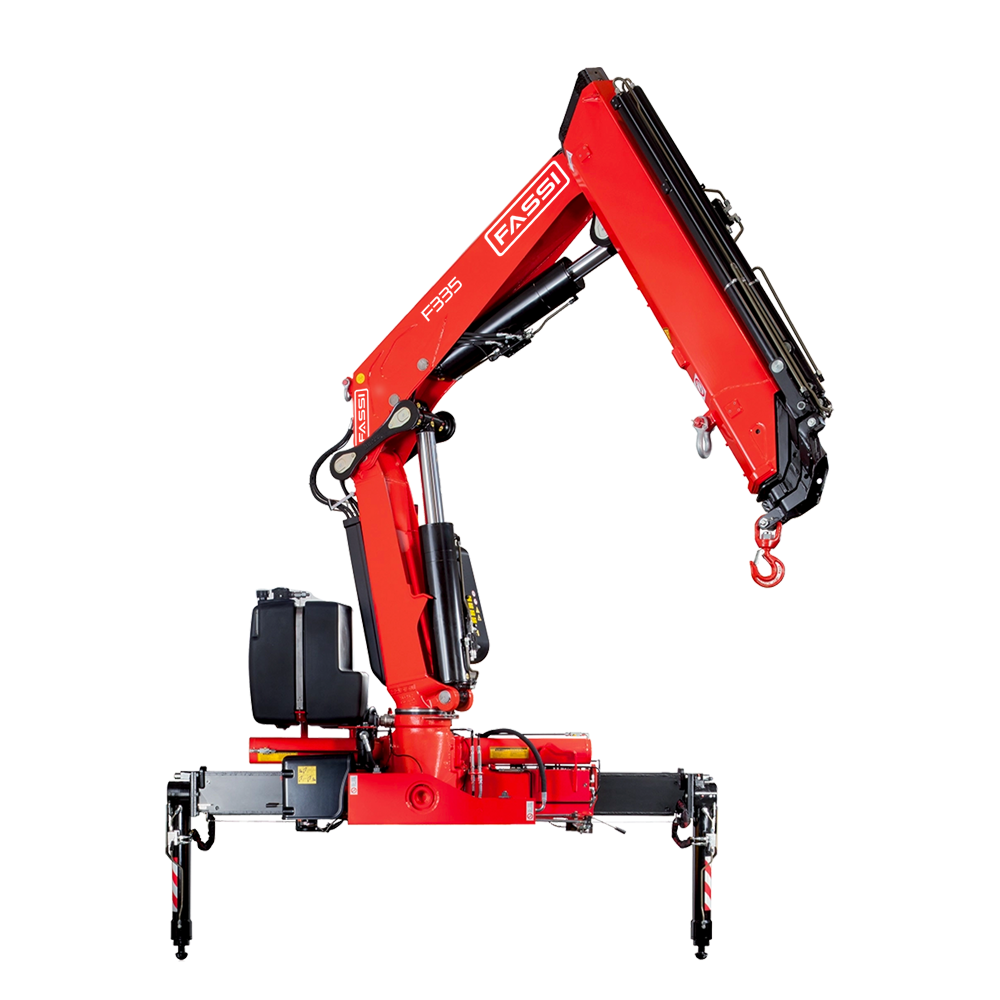

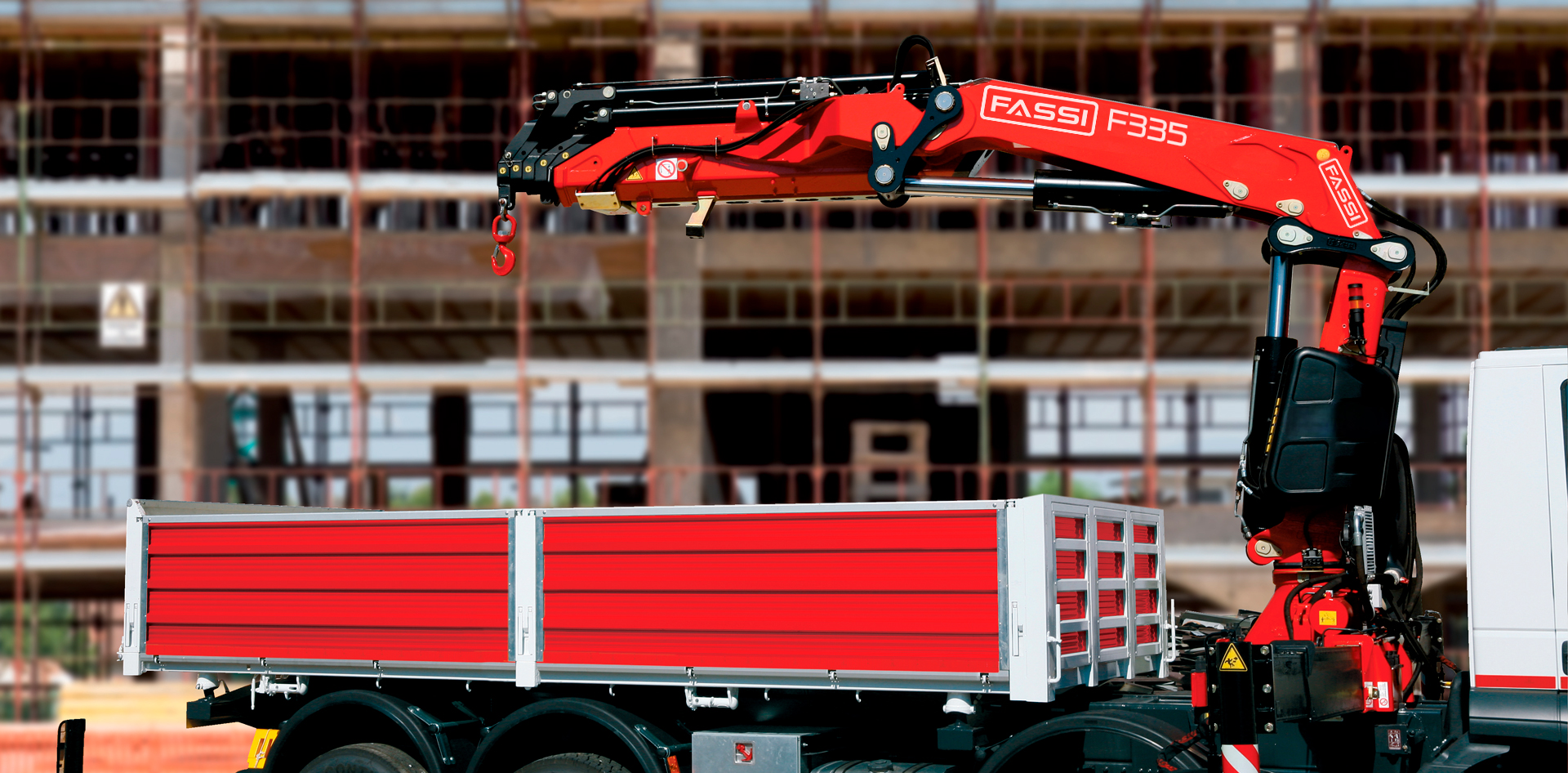

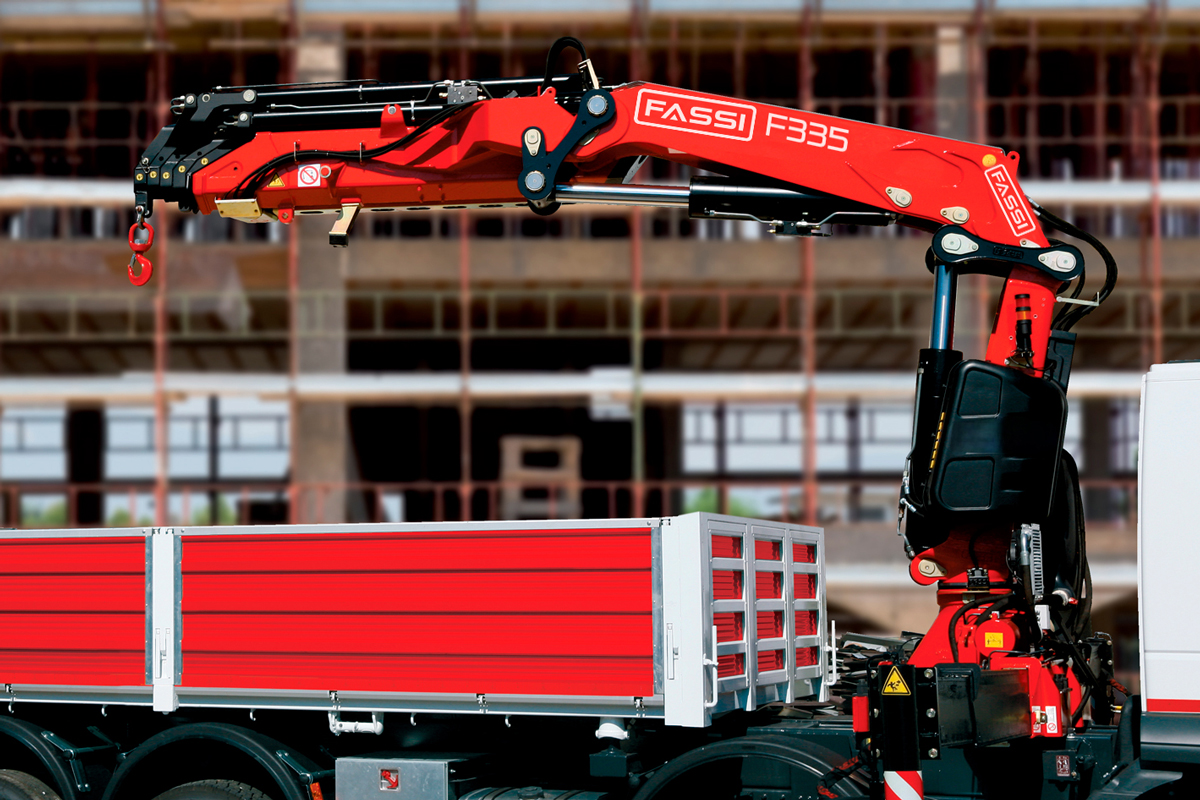

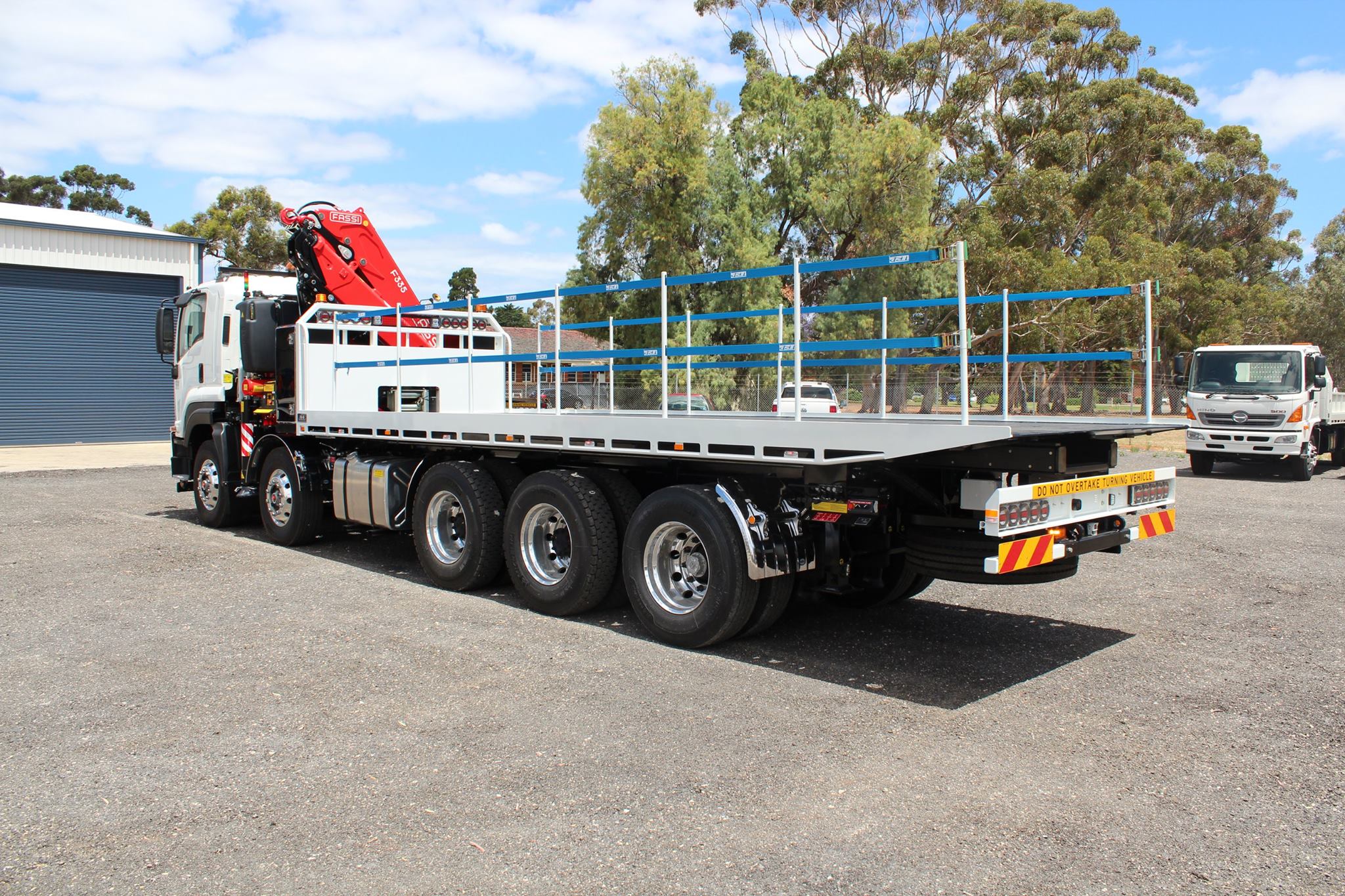

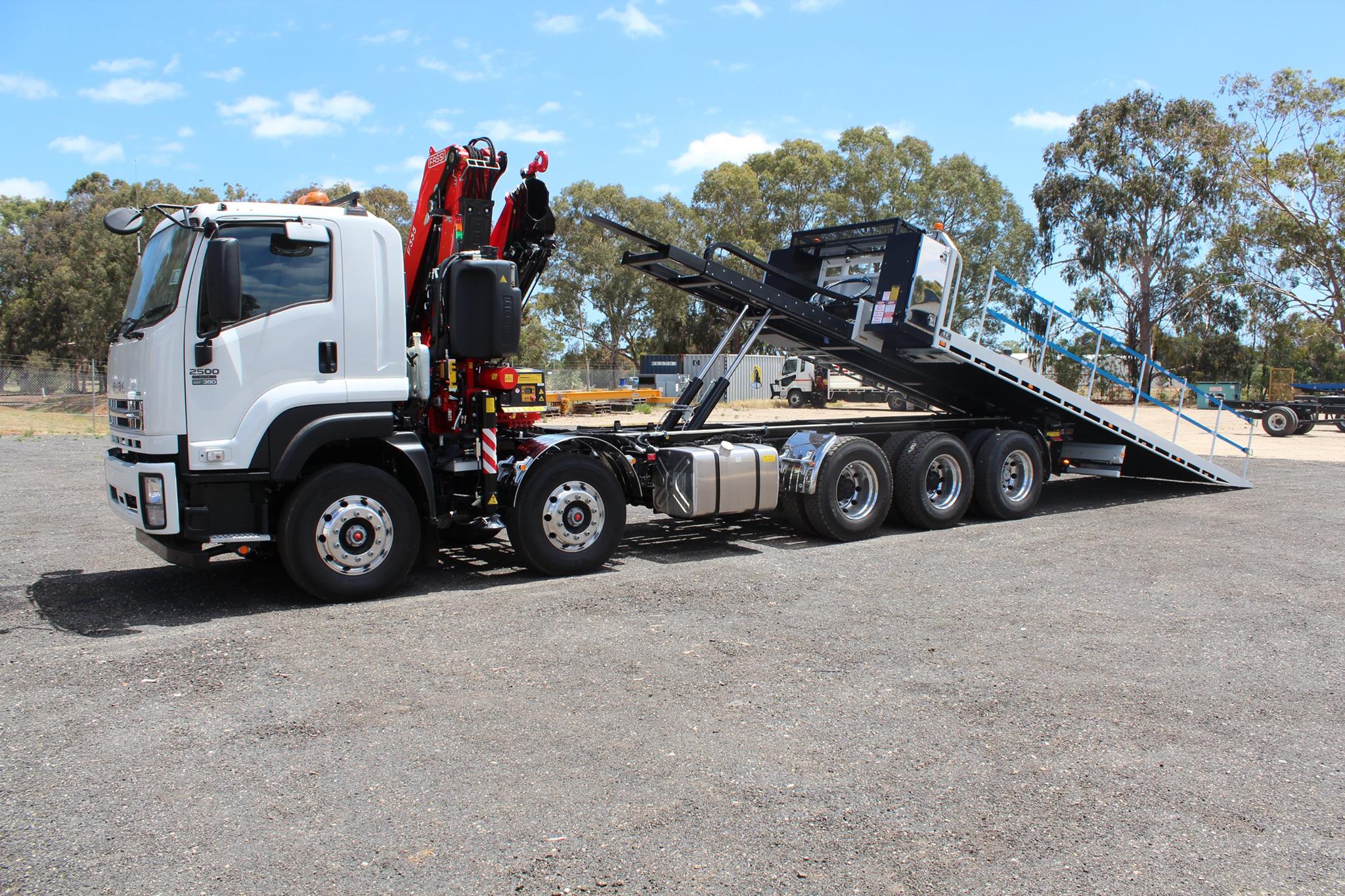

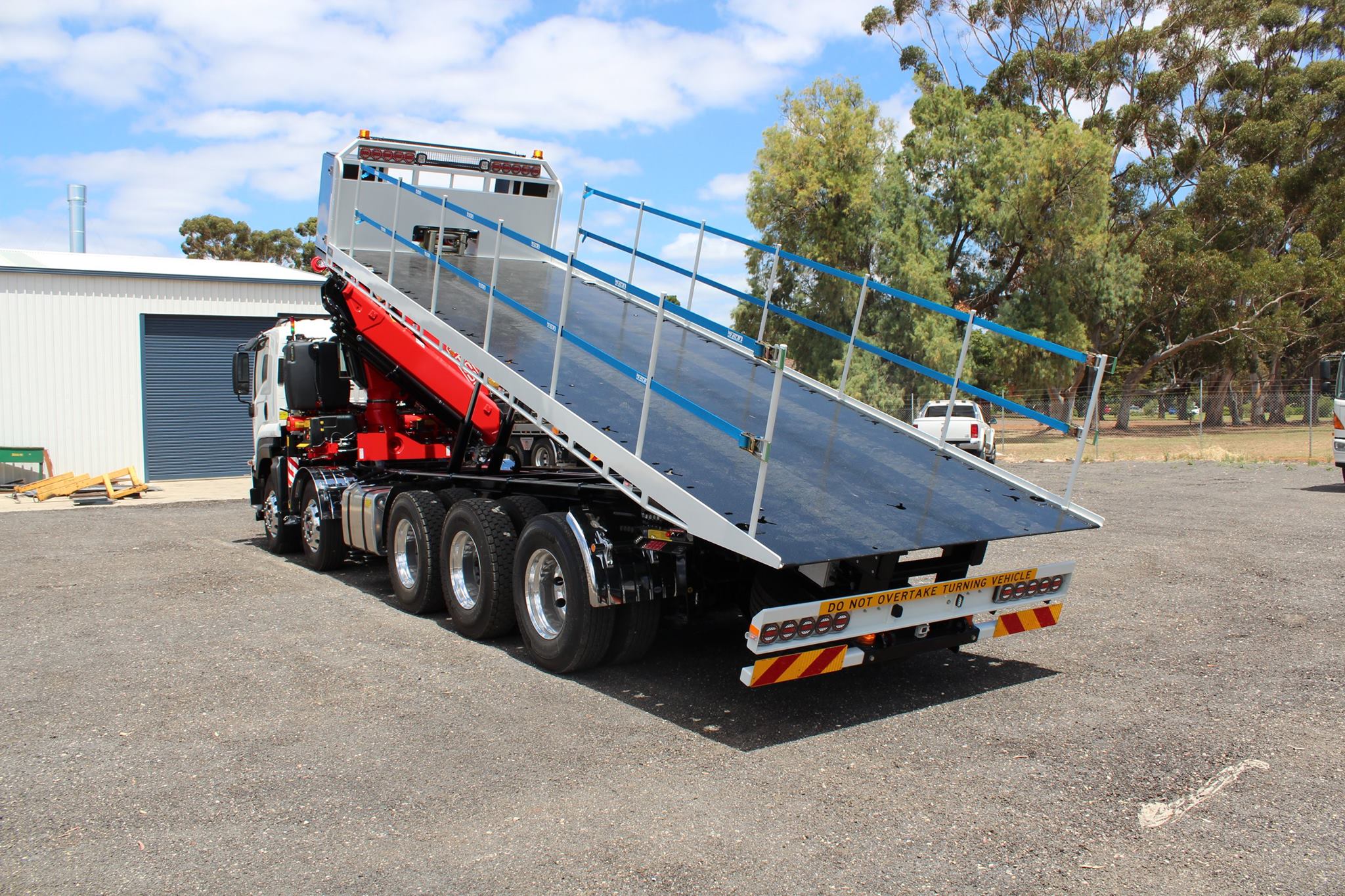

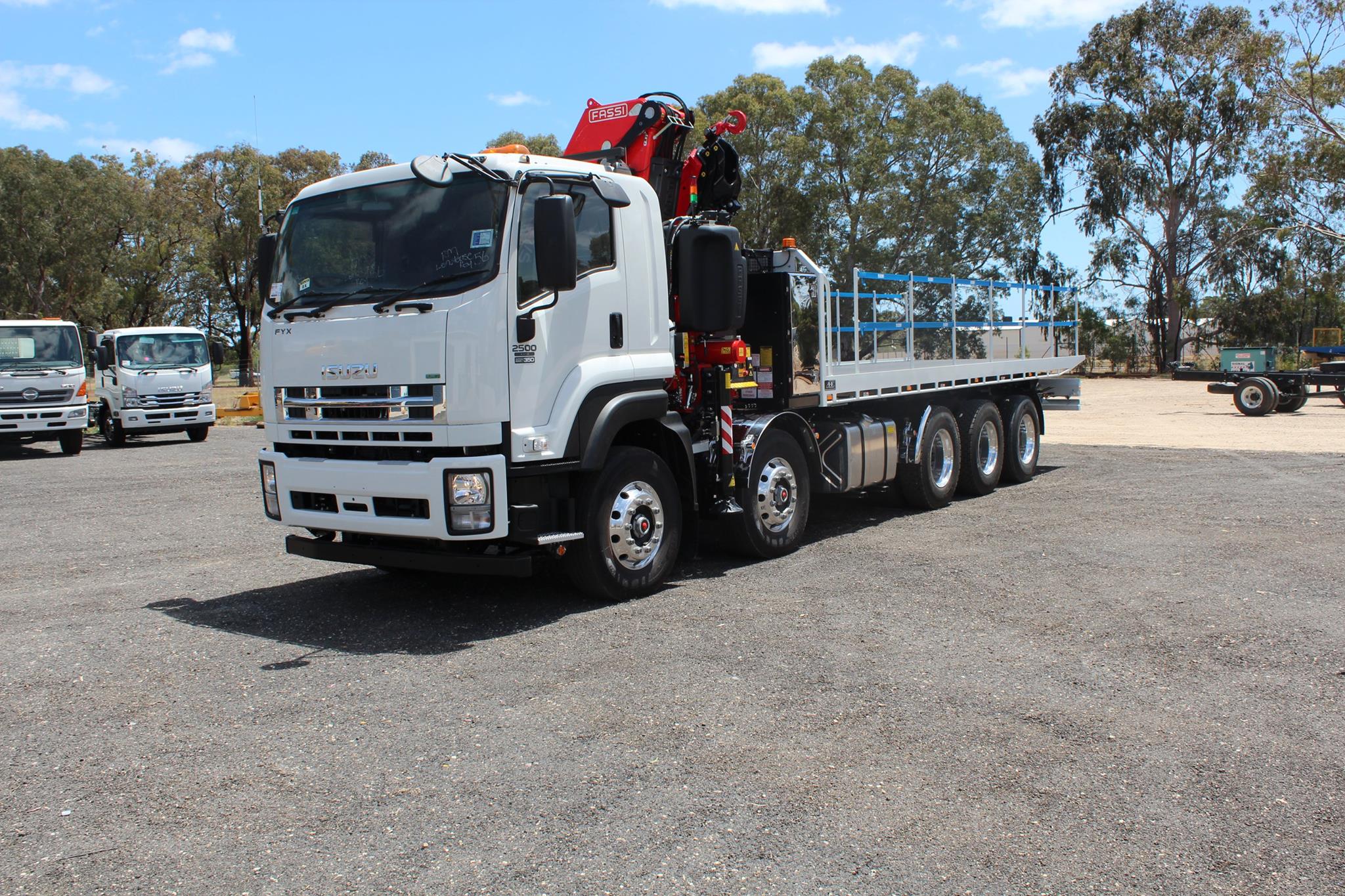

The F335A e-dynamic is a reliable and versatile crane, with lifting capacity of up to 31.7 tm and a maximum hydraulic outreach of 26.70 m with jib. The on-board electronics include the FX500, the D850 digital distributor, RCH/RCS radio controller and ADC dynamic control with flow sharing, for safe and smooth motion.

The Dynamic version includes linkage, the ProLink double linkage system and 400° rotation with rack and pinion, guaranteeing consistent performance for any application.

Model specifications

kg/m	kNm	tm	m	m	°	kNm	MPa	l/min	l	kg	mm	mm	mm
F335A.2.22*	311	31,70	8,15	3,80	400	47,5	31	60-80	190	3350	2510	1055	2460
F335A.2.23*	304	30,99	10,20	5,80	400	47,5	31	60-80	190	3580	2510	1110	2460
F335A.2.24*	299	30,48	12,30	7,80	400	47,5	31	60-80	190	3800	2510	1110	2460
F335A.2.25*	294	29,97	14,60	10,00	400	47,5	31	60-80	190	4000	2510	1110	2460
F335A.2.26*	286	29,15	16,70	12,00	400	47,5	31	60-80	190	4200	2510	1110	2460
F335A.2.27*	281	28,64	18,85	14,10	400	47,5	31	60-80	190	4380	2510	1175	2460
F335A.2.28*	277	28,24	20,90	16,15	400	47,5	31	60-80	190	4500	2535	1175	2460
F335AC.2.24	300	30,58	10,65	7,00	400	47,5	31	60-80	190	3710	2510	1110	2460
F335AC.2.26	295	30,07	15,05	11,20	400	47,5	31	60-80	190	4110	2510	1110	2460
F335A.2.24/L323	299	30,48	20,05	12,60	400	47,5	31	60-80	190	4700	2535	1285	2720
F335A.2.24/L324	299	30,48	22,00	14,40	400	47,5	31	60-80	190	4800	2535	1285	2720
F335A.2.25/L323	294	29,97	22,25	14,80	400	47,5	31	60-80	190	4900	2535	1285	2720
F335A.2.25/L324	294	29,97	24,15	16,60	400	47,5	31	60-80	190	5000	2535	1285	2720
F335A.2.26/L212	286	29,15	22,80	15,55	400	47,5	31	60-80	190	4850	2535	1285	2755
F335A.2.26/L213	286	29,15	24,80	17,50	400	47,5	31	60-80	190	4930	2535	1285	2755
F335A.2.26/L214*	286	29,15	26,70	19,30	400	47,5	31	60-80	190	5000	2535	1285	2755
F335AC.2.24/L323	300	30,58	18,45	11,80	400	47,5	31	60-80	190	4465	2535	1285	2720
F335AC.2.24/L324	300	30,58	20,35	13,60	400	47,5	31	60-80	190	4565	2535	1285	2720

Modello	lbs.ft	ft	ft	°	lbs.ft	psi	gpm	oil (gal)	lbs	ft	ft	ft
F335A.2.22	229286	26’8”	12’5”	400	35044	4500	16 – 21	50	7275	8’2”	3’5”	8’0”
F335A.2.23	224151	33’5”	19’0”	400	35044	4500	16 – 21	50	7649	8’2”	3’7”	8’0”
F335A.2.24	220462	40’4”	25’9”	400	35044	4500	16 – 21	50	8212	8’2”	3’7”	8’0”
F335A.2.25	216773	47’10”	32’9”	400	35044	4500	16 – 21	50	8697	8’2”	3’7”	8’0”
F335A.2.26	210842	54’9”	39’0”	400	35044	4500	16 – 21	50	9104	8’2”	3’7”	8’0”
F335A.2.27	207153	61’10”	45’10”	400	35044	4500	16 – 21	50	9656	8’2”	3’10”	8’0”
F335A.2.28	204260	68’6”	52’11”	400	35044	4500	16 – 21	50	9768	8’3”	3’10”	8’0”
F335A.2.23/L323	224151	59’3”	34’9”	400	35044	4500	16 – 21	50	9876	8’3”	4’2”	8’11”
F335A.2.24/L323	220462	65’9”	41’2”	400	35044	4500	16 – 21	50	10361	8’3”	4’2”	8’11”
F335A.2.25/L322	216773	67’7”	42’11”	400	35044	4500	16 – 21	50	10582	8’3”	4’2”	8’11”
F335AC.2.22*	221556	34’11”	22’11”	400	35044	4500	16 – 21	50	8179	8’2”	3’7”	8’0”
F335AC.2.26*	218095	49’4”	36’8”	400	35044	4500	16 – 21	50	9060	8’2”	3’7”	8’0”
F335A.2.24/L324*	220462	72’2”	47’2”	400	35044	4500	16 – 21	50	10582	8’3”	4’2”	8’11”
F335A.2.25/L323*	216773	72’1”	46’3”	400	35044	4500	16 – 21	50	11082	8’3”	4’2”	8’11”
F335A.2.25/L324*	216773	79’2”	54’5”	400	35044	4500	16 – 21	50	11023	8’3”	4’2”	9’0”
F335A.2.26/L212*	210842	74’9”	51’0”	400	35044	4500	16 – 21	50	10692	8’3”	4’2”	9’0”
F335A.2.26/L213*	210842	81’4”	57’4”	400	35044	4500	16 – 21	50	10868	8’3”	4’2”	9’0”
F335A.2.26/L214*	210842	87’7”	63’3”	400	35044	4500	16 – 21	50	11023	8’3”	4’2”	9’0”
F335AC.2.24/L323*	221556	60’6”	38’3”	400	35044	4500	16 – 21	50	9843	8’3”	4’2”	8’11”
F335AC.2.24/L324*	221556	66’9”	44’7”	400	35044	4500	16 – 21	50	10063	8’3”	4’2”	8’11”

* GB / Load diagram into the brochure - IT / Diagramma di carico nel depliant - FR / Abaque de charge dans le dépliant - DE / Lastdiagramm im Prospekt - ES / Diagrama de carga en el catálogo - NL / Draagvermogen grafiek in het prospectus

Legend

Crane Height

Lifting capacity

Oil tank capacity

Rotational torque (lbs)

Rotational torque (mt)

Hydraulic boom extension

Mounting width

Crane Width

Maximum hydraulic outreach

Crane weight

Pump flow rate (gpm)

Pump flow rate (l/min)

Flow rate (gpm)

Pump flow rate (l/min)

Operating pressure (MPa)

Operating pressure (psi)

Rotation

Strengths

ADC – Automatic Dynamic Control

A control system developed by Fassi automatically controlling the dynamics of all the crane functions maximizing the speed of movement depending on the handled load, allowing only controlled movements and minimizing the structural stress on both the crane and the frame/sub frame of the vehicle.

D850 – Digital Multifunction Distributor Bank

Multifunction hydraulic distributor bank with digital anti-saturation system that manages the oil delivered by the pump proportionally among all the functions that require it, thereby ensuring a perfect multifunction and proportional operation.

RCH/RCS – Radio Remote Control

The new-generation digital radio remote control, exclusively compatible with the Fassi product, with wide graphic display to remotely control the functions of the crane and, optionally, the vehicle and the outriggers. It automatically researches the available frequency and allows for continuous interaction between operator and crane.

FX500 – Fassi Electronic Control

A system that electronically controls the load conditions of the crane, of the hydraulic and manual extensions and of the winch, manages the lifting moment with the possibility to activate different work sectors, in relation to the stability condition of the vehicle/crane unit. In addition, it transmits and records the working data.

FSC – Fassi Stability Control

A Fassi system that continuously monitor and ensure the ideal crane working conditions versus the vehicle/crane stability, based on the position of the lateral extension supports of the outriggers. The system is available in 3 versions: L (Low), M (Medium) and S (Super) characterized by different design and functionality to suite all possible configuration of all the different crane models.

CPM – Crane Position Monitoring

A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.

FS – Flow Sharing

A system that proportionally distributes the oil from the pump to all manoeuvres simultaneously. It allows the operation of more functions at the same time by distributing the available oil flow proportionally to the desired functions and at the desired speed guaranteeing the perfect multifunction ability of the hydraulic distributor.

XF – Extra Fast

A Fassi system that, through dedicated pilot operated check valves in conjunction with the multifunction distributor, allows smoothly, precisely and sensitively movements with less oil heating and higher speeds of operation.

MPES – Multi Power Extension System

A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.

PROLINK – Progressive Link

Exclusive Fassi system, built up by a longer outer lifting ram in conjunction with the linkage system, allowing to increase the working angle of the crane above the horizontal line from 10° to 15° according to the model, still maintaining in this configuration the nominal lifting performances. Prolink find application as well on the articulation ram of the jibs, with an increase of the working angle of the jib above the horizontal line from 10° to 20°.

UHSS – Ultra High Stregth Steel

Ultra high strength steel used for the construction of the Fassi structural components, with a high elastic limit, increases structural strength and resistance of the components and at the same time reduces the weight of the crane, to the benefit of the loading capacity of the vehicle which increases.

FWD – Fewer Welds Design

Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.

CQ – Cast Quality

Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components: less weldings, higher performance to fatigue cycles.

RPS – Rack and Pinion System

Exclusive Fassi rack and pinion rotation system with gravity self centering rack guide shoe; no need of external adjustment. Low friction anti-seizure techno-polymer rotation top bush for an extra strong rotation power.

Optional

D900 – Digital Multifunction Distributor Bank

High performances multifunction compensated hydraulic distributor bank with digital anti-saturation system thereby ensuring a superlative multifunction and proportional operation. Coupled with the Fassi XF (Extra Fast) system, it guarantees an extraordinary fluidity and speed of action.

ME – Manual Extension

Fassi designed, developed and patented system which, combined with the electronic systems FX500 and FX800, uses a dedicated software to decide whether the load applied to the manual extension can be lifted or not, with reference to the foreseen loads. The system also provides the evaluation of the applied load.

OTC – Oil Temperature Control

Temperature control device electronically controlled, thanks to the analogic temperature sensor fitted inside the oil cooler, is capable of maintaining an optimal temperature of the hydraulic system even in the most stressful condition of use. The temperature value is shown on the user control panel and radio control handle display.

GAS – Grab Automatic Shake

Automatic and adjustable shake system which enables the gradual emptying of the grab by operating through radio remote control. This gradual operation is fulfilled even at high speeds thanks to the automatic control of the grab opening and closing. Moreover, the system efficacy is guaranteed also in case of multiple manoeuvres and it is not affected by Flow Sharing or dynamics.

FL – Full Lift

A system that allows you to select, based on operational needs, “FAST” (recycling valve activated) or “POWER” (recycling valve deactivated) while telescoping the booms. Selection is both via radio control thanks to the icon on the display or on the push button of the main control panel.

OHT – Outrigger Hydraulic Tilt

System which enables the tilt of hydraulically tiltable outriggers through hydraulic servomotor or servoram. Operating the specific tap, oil flow is diverted from the outrigger to the actuator and the ram manoeuvre is easily controlled by the operator, without the need to apply any force.

IMC – Integral Machine Control

It is the digital brain of the Fassi cranes which, through sophisticated electronics, in addition to the crane control systems, manages the best operating conditions to ensure the optimal machine performance and control applicable to all the work conditions. It uses a Can bus communication system between the peripheral sensors.
