F295A.2

The F295A.2 is a compact and powerful solution, delivering a lifting capacity of up to 28.3 tm and a maximum outreach of 26.70 m with jib. A versatile crane designed for those looking for reliability and high performance in a range of working environments.

Equipped with the S900 digital hydraulic distributor, it ensures precise and smooth motion, while the dynamic version (.2) with linkage optimises operating efficiency. 400° rotation with rack and pinion guarantees a wide operating range and manoeuvrability.

Model specifications

kg/m	kNm	tm	m	m	°	kNm	MPa	l/min	l	kg	mm	mm	mm
F295A.2.22	278	28,34	8,15	3,80	400	41	31	60-80	190	3300	2510	1055	2460
F295A.2.23	272	27,73	10,20	5,80	400	41	31	60-80	190	3470	2510	1110	2460
F295A.2.24	264	26,91	12,30	7,80	400	41	31	60-80	190	3725	2510	1110	2460
F295A.2.25	259	26,40	14,60	10,00	400	41	31	60-80	190	3945	2510	1110	2460
F295A.2.26	253	25,79	16,70	12,00	400	41	31	60-80	190	4130	2510	1110	2460
F295A.2.27	248	25,28	18,85	14,10	400	41	31	60-80	190	4300	2510	1175	2460
F295A.2.28	244	24,87	20,90	16,15	400	41	31	60-80	190	4431	2535	1175	2460
F295A.2.26/L214	253	25,79	26,70	19,30	400	41	31	60-80	190	4745	2535	1280	2755
F295AC.2.24	268	27,32	10,65	7,00	400	41	31	60-80	190	3635	2510	1110	2460
F295AC.2.25	265	27,01	12,95	9,15	400	41	31	60-80	190	3855	2510	1110	2460
F295AC.2.26	262	26,71	15,20	11,20	400	41	31	60-80	190	4040	2510	1110	2460
F295A.2.23/L323	272	27,73	18,05	10,60	400	41	31	60-80	190	4225	2535	1285	2720
F295A.2.24/L323	264	26,91	20,05	12,60	400	41	31	60-80	190	4480	2535	1285	2720
F295A.2.24/L324	264	26,91	22,00	14,40	400	41	31	60-80	190	4580	2535	1285	2720
F295A.2.25/L213	259	26,40	21,10	13,85	400	41	31	60-80	190	4525	2535	1285	2710
F295A.2.25/L214	259	26,40	24,60	17,25	400	41	31	60-80	190	4595	2535	1285	2710
F295A.2.25/L323	259	26,40	22,25	14,80	400	41	31	60-80	190	4705	2535	1285	2720
F295A.2.25/L324	259	26,40	24,15	16,60	400	41	31	60-80	190	4805	2535	1285	2720
F295A.2.26/L212	253	25,79	22,80	15,55	400	41	31	60-80	190	4590	2535	1285	2755
F295A.2.26/L213	253	25,79	24,80	17,50	400	41	31	60-80	190	4675	2535	1285	2755
F295AC.2.24/L323	268	27,32	18,45	11,80	400	41	31	60-80	190	4390	2535	1285	2720
F295AC.2.24/L324	268	27,32	20,35	13,60	400	41	31	60-80	190	4490	2535	1285	2720

Legend

Crane Height

Lifting capacity

Oil tank capacity

Rotational torque (lbs)

Rotational torque (mt)

Hydraulic boom extension

Mounting width

Crane Width

Maximum hydraulic outreach

Crane weight

Pump flow rate (gpm)

Pump flow rate (l/min)

Flow rate (gpm)

Pump flow rate (l/min)

Operating pressure (MPa)

Operating pressure (psi)

Rotation

Strengths

XF – Extra Fast

A Fassi system that, through dedicated pilot operated check valves in conjunction with the multifunction distributor, allows smoothly, precisely and sensitively movements with less oil heating and higher speeds of operation.

MPES – Multi Power Extension System

A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.

UHSS – Ultra High Stregth Steel

Ultra high strength steel used for the construction of the Fassi structural components, with a high elastic limit, increases structural strength and resistance of the components and at the same time reduces the weight of the crane, to the benefit of the loading capacity of the vehicle which increases.

FWD – Fewer Welds Design

Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.

CQ – Cast Quality

Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components: less weldings, higher performance to fatigue cycles.

RPS – Rack and Pinion System

Exclusive Fassi rack and pinion rotation system with gravity self centering rack guide shoe; no need of external adjustment. Low friction anti-seizure techno-polymer rotation top bush for an extra strong rotation power.

S900 – Multifunction Distributor Bank

High performances multifunction compensated distributor bank with very high “load-sensing” proportional multifunction ability; all crane functions are perfectly controlled, proportional and smooth. Ideal for the application on heavy range cranes.

Gallery

Fassi-F295A.2-gruas-hidraulicas-articuladas

Download area

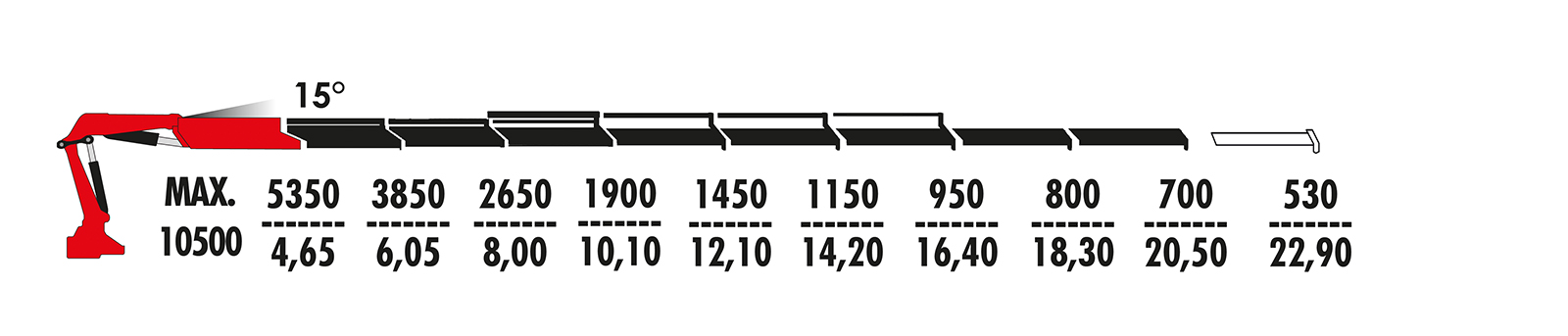

Maximum hydraulic reach

F295A.2.28-NC

Download the complete data sheet where you will find all versions and configurations.

Download data sheet
