F240ASXP
F240ASXP

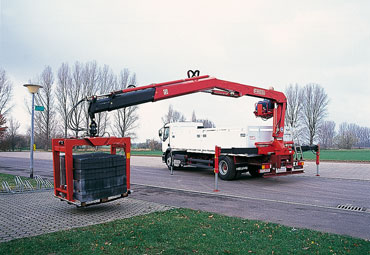

The F240ASXP is a compact and powerful crane, with a lifting capacity of up to 23.85 tm and a maximum outreach of 16.15 m. Equipped with the FX800 control unit, Walvoil SD8 modular distributor and seated control station, it combines ease of use and operational efficiency. 420° rotation with rack and pinion guarantees manoeuvrability, while the non-folding behind-the-cab structure makes it ideal for specific configurations.
At the heart of the F240ASXP lies the XP – Extra Power system, which provides additional energy when needed: by reducing the speed of movement, it increases lifting capacity and allows even the most demanding operations to be completed in safety. A form of technology that combines maximum power with extreme precision, allowing the operator to reliably handle even the most complex situations.
Model specifications
| Modello | tm | m | m | ° | kNm | MPa | l/min | oil (l) | kg |
|---|---|---|---|---|---|---|---|---|---|
| F240ASXP22 | 23,85 | 11,10 | 4,90 | 420 | 33,5 | 32,5 | 50+50 | 240 | 2980 |
| F240ASXP23 | 23,04 | 13,65 | 7,35 | 420 | 33,5 | 32,5 | 50+50 | 240 | 3180 |
| F240ASXP24 | 22,22 | 16,15 | 9,80 | 420 | 33,5 | 32,5 | 50+50 | 240 | 3380 |
Legend
Crane Height
Lifting capacity
Oil tank capacity
Rotational torque (lbs)
Rotational torque (mt)
Hydraulic boom extension
Mounting width
Crane Width
Maximum hydraulic outreach
Crane weight
Pump flow rate (gpm)
Pump flow rate (l/min)
Flow rate (gpm)
Pump flow rate (l/min)
Operating pressure (MPa)
Operating pressure (psi)
Rotation
