F215AZ dynamic
F215AZ dynamic

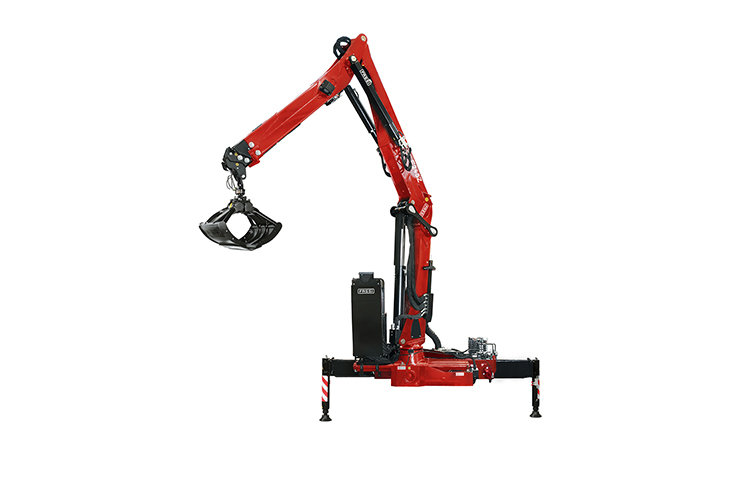

The F215AZ dynamic is a crane from the Z series, designed to be compact and efficient, with a maximum moment of 21.50 tm / 210 kNm. Equipped with the FX500 control unit and the S800 multifunctional hydraulic distributor, it offers ease of use and reliability. 425° rotation with rack and pinion ensures manoeuvrability, making it suitable for applications requiring practicality and versatility.
It can be equipped with optional extras such as the raised control station and the GAS – Grab Automatic Shake – system, for increased comfort and efficiency in operations with the bucket.
Model specifications
| kg/m | kNm | tm | m | m | ° | kNm | MPa | l/min | l | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| F215AZ.1.22 | 196 | 20,0 | 8,55 | 2,85 | 425 | 29,3 | 28,0 | 50 | 175 | 2700 |
Legend
Crane Height
Lifting capacity
Oil tank capacity
Rotational torque (lbs)
Rotational torque (mt)
Hydraulic boom extension
Mounting width
Crane Width
Maximum hydraulic outreach
Crane weight
Pump flow rate (gpm)
Pump flow rate (l/min)
Flow rate (gpm)
Pump flow rate (l/min)
Operating pressure (MPa)
Operating pressure (psi)
Rotation
Strengths
S800 – Multifunction Distributor Bank
Multifunction distributor bank ideal for the application on small-medium range cranes, with specific spools set up in relation with the characteristics of the crane functions.
S800 – Multifunction Distributor Bank
Multifunction distributor bank ideal for the application on small-medium range cranes, with specific spools set up in relation with the characteristics of the crane functions.
Optional
S900 – Multifunction Distributor Bank
High performances multifunction compensated distributor bank with very high “load-sensing” proportional multifunction ability; all crane functions are perfectly controlled, proportional and smooth. Ideal for the application on heavy range cranes.
