Special series

F205S

Lifting capacity F205S
Lifting capacity
20,00 tm
Up to 20,0 tm
Maximum reach F205S
Maximum reach
13,50 m
Up to 13,50 m
Rotation F205S
Rotation
420°
Rotation 420° with rack and pinion
Market F205S
Market
Extra CE

F205S

The F205S.1 is designed to deliver greater operational capability in handling palletized materials and bulky loads, while maintaining an optimal balance between performance, compactness, and operational flexibility.
With a lifting capacity of up to 20.0 tm and a maximum outreach of approximately 13.50 m, it is a reliable solution for building material suppliers, construction sites, and specialized logistics.

Engineered to operate even in demanding conditions, it ensures precise and fast movements.
The 420° rotation, combined with a robust design that prevents unnecessary encumbrances, allows safe and efficient use in the frequent confined spaces typical of urban delivery operations.

Model specifications

kg/m lbs/ft
Modello kNm tm m m ° kNm MPa l/min l kg mm mm mm
F205S.1.1 196 20,00 8,30 2,45 420 33,5 32,0 60-60 240 2540 2400 2800
F205S.1.2 187 19,10 10,90 5,00 420 33,5 32,0 60-60 240 2730 2400 2800
F205S.1.3 179 18,30 13,50 7,50 420 33,5 32,0 60-60 240 2900 2400 2405
Modello lbs.ft ft ft ° lbs.ft psi gpm gal lbs ft ft ft
F205S.1.1 144,760 27′3″ 8′0″ 420 24,708 4,641 15.9-15.9 63.4 5,600 7′10″ 9′2″
F205S.1.2 138,100 35′9″ 16′5″ 420 24,708 4,641 15.9-15.9 63.4 6,019 7′10″ 9′2″
F205S.1.3 132,409 44′3″ 24′7″ 420 24,708 4,641 15.9-15.9 63.4 6,393 7′10″ 7′11″

Strengths

fx500

FX500 – Fassi Electronic Control

A system that electronically controls the load conditions of the crane, of the hydraulic and manual extensions and of the winch, manages the lifting moment with the possibility to activate different work sectors, in relation to the stability condition of the vehicle/crane unit. In addition, it transmits and records the working data.

Download area

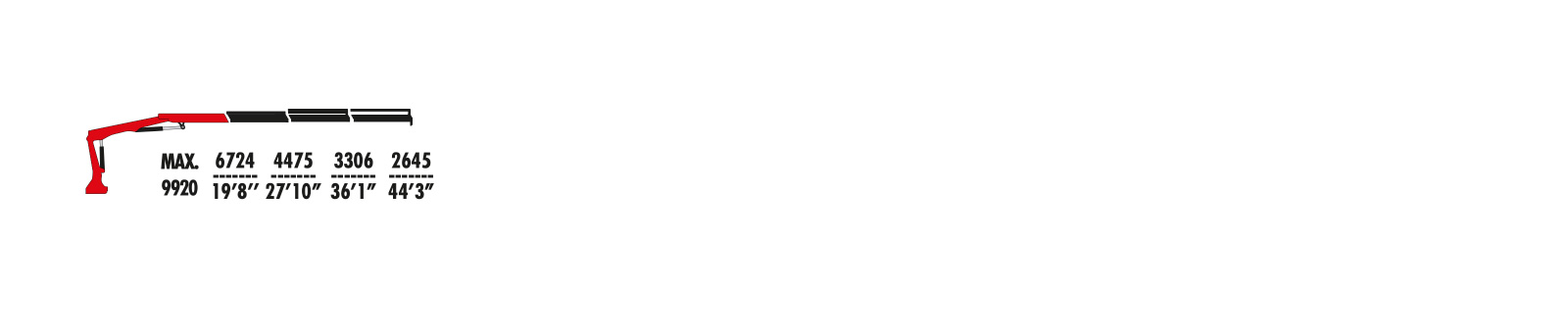

Maximum hydraulic reach

F205S.1.3
F205S
Download the complete data sheet where you will find all versions and configurations.
Download data sheet

Would you like to learn more about
F205S

Download the brochure for all the information you need.
