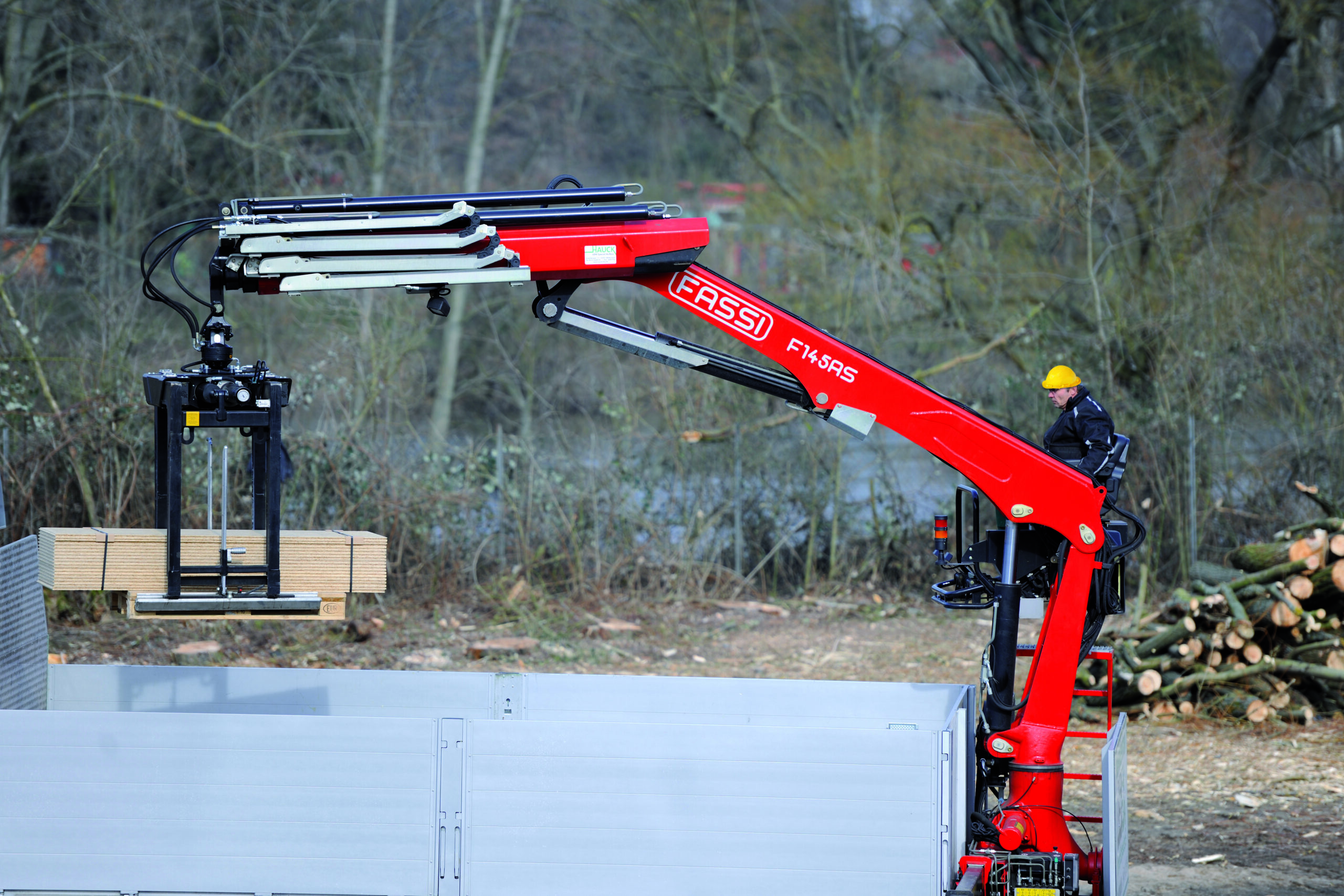

F145AS
F145AS
Special series

F160ASXP

Lifting capacity F160ASXP
Lifting capacity
14,80 tm
Up to 14,80 tm
Maximum reach F160ASXP
Maximum reach
11,20 m
Up to 11,20
Rotation F160ASXP
Rotation
416°
Rotation 416° with rack and pinion
Market F160ASXP
Market
CE

F160ASXP

The F160AXP is a crane from the XP series, developed to guarantee greater power and high performance in loading activities on palletised materials.
With a lifting capacity of up to 14.8 tm and a maximum reach of approximately 8.1 m (depending on the .21 / .22 / .23 versions), it is an ideal solution for building suppliers and transport companies that operate daily in complex work areas.

The hydraulic system operates at 31.5 MPa, ensuring smooth and fast manoeuvres, supported by low oil consumption and balanced flow.
The 416° rotation with rack and pinion guarantees ample operating freedom, while the machine’s low weight enhances its versatility and compatibility with numerous configurations.

Model specifications

kg/m
Modello tm m m ° kNm MPa l/min oil (l) kg
F160ASXP.21 14,8 6,95 2,05 416 33,5 21,5 40+40 240 1950
F160ASXP.22 14,2 9,10 4,10 416 33,5 21,5 40+40 240 2075
F160ASXP.23 13,7 11,20 6,10 416 33,5 21,5 40+40 240 2200





Legend

 Crane Height Crane Height
 Lifting capacity Lifting capacity
 Oil tank capacity Oil tank capacity
 Rotational torque (lbs) Rotational torque (lbs)
 Rotational torque (mt) Rotational torque (mt)
 Hydraulic boom extension Hydraulic boom extension
 Mounting width Mounting width
 Crane Width Crane Width
 Maximum hydraulic outreach Maximum hydraulic outreach
 Crane weight Crane weight
 Pump flow rate (gpm) Pump flow rate (gpm)
 Pump flow rate (l/min) Pump flow rate (l/min)
 Flow rate (gpm) Flow rate (gpm)
 Pump flow rate (l/min) Pump flow rate (l/min)
 Operating pressure (MPa) Operating pressure (MPa)
 Operating pressure (psi) Operating pressure (psi)
 Rotation Rotation
