F135A.0
F135A.0

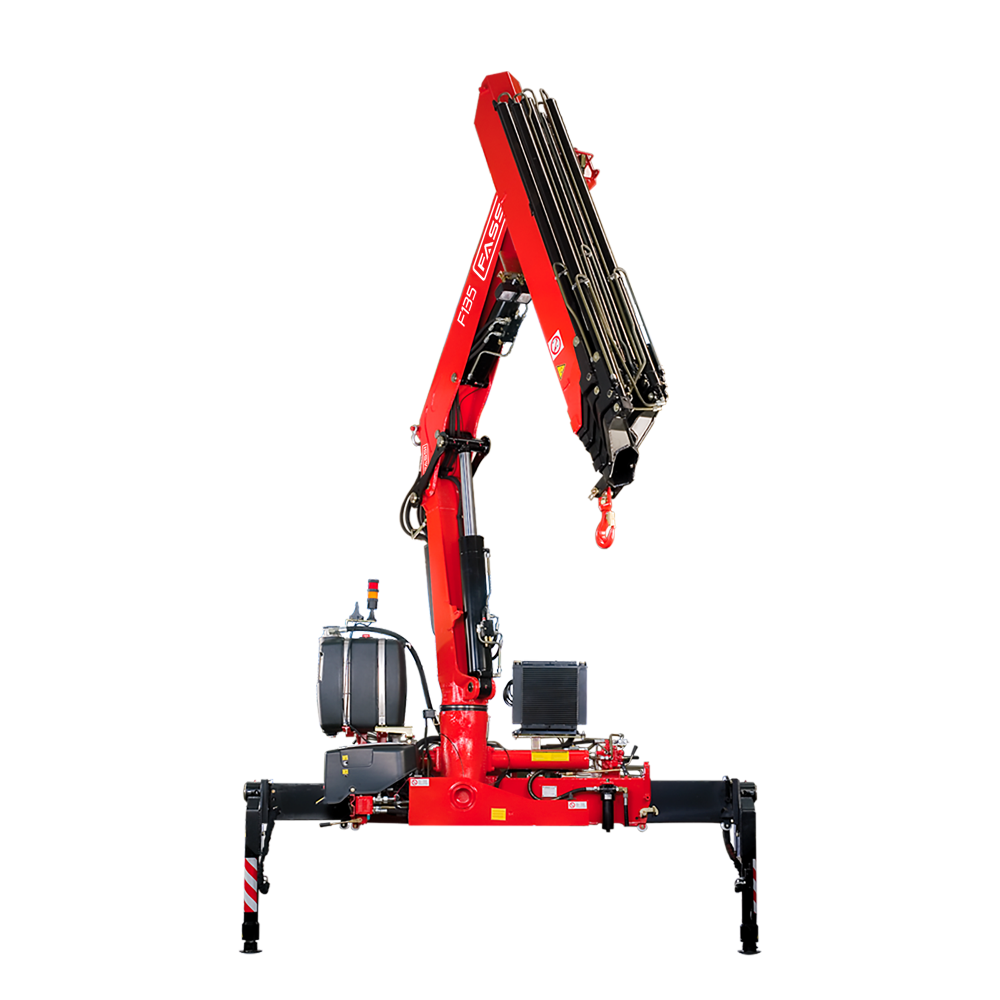

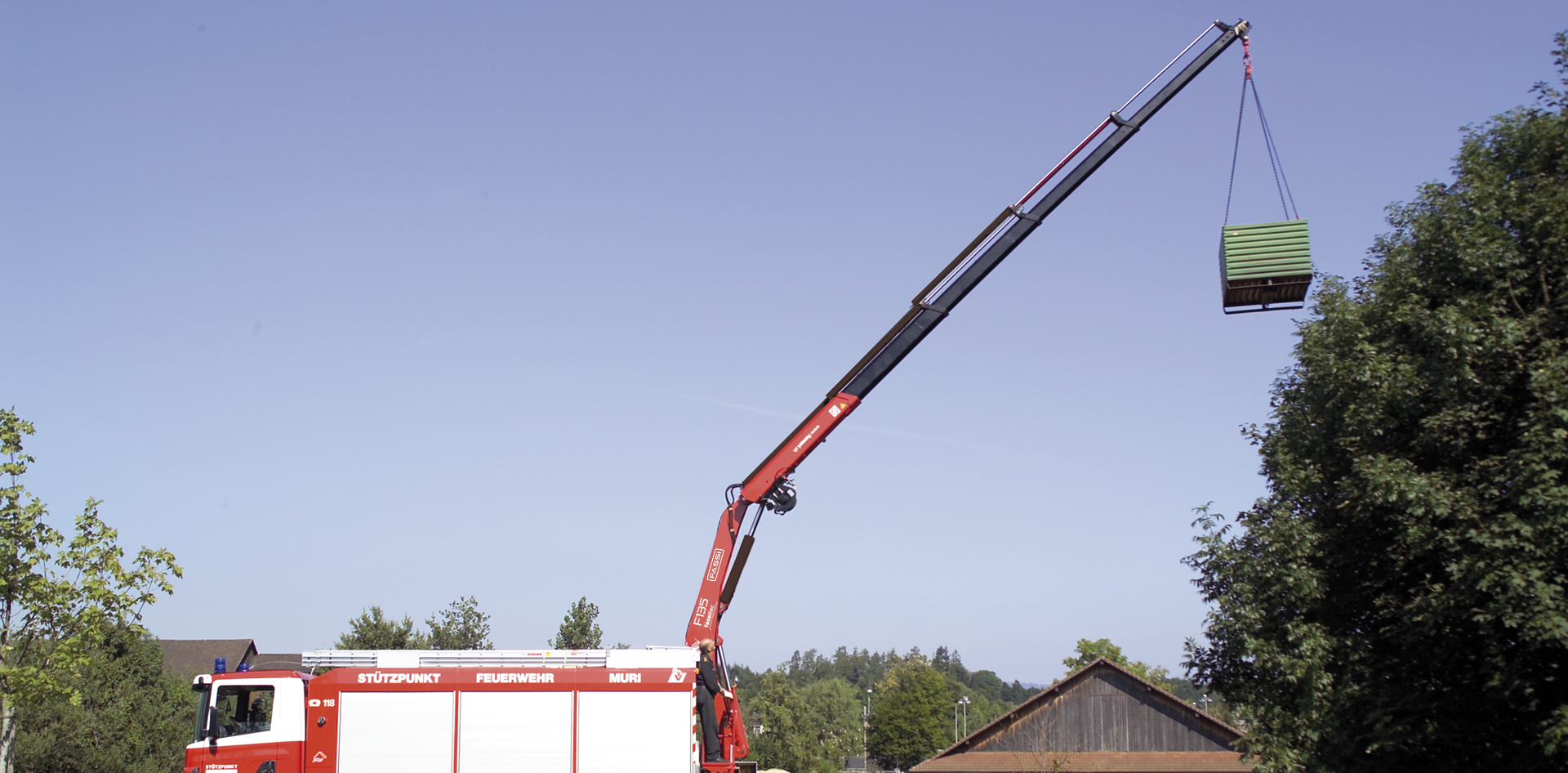

The F135A.0 combines simple construction and reliability, with a lifting capacity of up to 13.0 tm and a maximum outreach of 16.75 m with jib.
The Hydrocontrol HC/D4 modular hydraulic distributor ensures effective control of manoeuvres. The active version (.0) without linkage focuses on practicality and immediate response, while 390° rotation with rack and pinion offers precise motion.
Model specifications
| Modello | kNm | tm | m | m | ° | kNm | MPa | l/min | l | kg | mm | mm | mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F135A.0.21 | 128 | 13,05 | 6,35 | 1,8 | 390 | 21,5 | 28,5 | 40 | 90 | 1640 | 2390 | 824 | 2205 |
| F135A.0.22 | 120 | 12,23 | 8,3 | 3,7 | 390 | 21,5 | 28,5 | 40 | 90 | 1780 | 2390 | 827 | 2205 |
| F135A.0.23 | 115 | 11,72 | 10,4 | 5,7 | 390 | 21,5 | 28,5 | 40 | 90 | 1910 | 2390 | 827 | 2205 |
| F135A.0.24 | 111 | 11,31 | 12,55 | 7,8 | 390 | 21,5 | 28,5 | 40 | 90 | 2030 | 2420 | 827 | 2205 |
| F135A.0.25 | 109 | 11,11 | 14,7 | 9,85 | 390 | 21,5 | 28,5 | 40 | 90 | 2170 | 2450 | 963 | 2205 |
| F135AC.0.22 | 122 | 12,44 | 6,6 | 2,85 | 390 | 21,5 | 28,5 | 40 | 90 | 1730 | 2400 | 827 | 2205 |
| F135AC.0.23 | 118 | 12,03 | 8,65 | 4,85 | 390 | 21,5 | 28,5 | 40 | 90 | 1880 | 2400 | 827 | 2205 |
| F135AC.0.24 | 115 | 11,72 | 10,85 | 6,9 | 390 | 21,5 | 28,5 | 40 | 90 | 1990 | 2465 | 827 | 2205 |
| F135AC.0.25 | 113 | 11,52 | 13 | 9 | 390 | 21,5 | 28,5 | 40 | 90 | 2120 | 2490 | 963 | 2205 |
| F135A.0.22/L102 | 120 | 12,23 | 14,85 | 7,3 | 390 | 21,5 | 28,5 | 40 | 90 | 2100 | 2477 | 960 | 2205 |
| F135A.0.23/L102 | 115 | 11,72 | 16,85 | 9,25 | 390 | 21,5 | 28,5 | 40 | 90 | 2230 | 2477 | 960 | 2205 |
| F135AC.0.23 L102 | 118 | 12,03 | 15,15 | 8,4 | 390 | 21,5 | 28,5 | 40 | 90 | 2200 | 2477 | 960 | 2205 |
Legend
Crane Height
Lifting capacity
Oil tank capacity
Rotational torque (lbs)
Rotational torque (mt)
Hydraulic boom extension
Mounting width
Crane Width
Maximum hydraulic outreach
Crane weight
Pump flow rate (gpm)
Pump flow rate (l/min)
Flow rate (gpm)
Pump flow rate (l/min)
Operating pressure (MPa)
Operating pressure (psi)
Rotation
Strengths
MPES – Multi Power Extension System
A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.
UHSS – Ultra High Stregth Steel
FWD – Fewer Welds Design
Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.
CQ – Cast Quality
Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components: less weldings, higher performance to fatigue cycles.
RPS – Rack and Pinion System
Exclusive Fassi rack and pinion rotation system with gravity self centering rack guide shoe; no need of external adjustment. Low friction anti-seizure techno-polymer rotation top bush for an extra strong rotation power.
MPES – Multi Power Extension System
A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.
UHSS – Ultra High Stregth Steel
FWD – Fewer Welds Design
Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.
CQ – Cast Quality
Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components: less weldings, higher performance to fatigue cycles.
RPS – Rack and Pinion System
Exclusive Fassi rack and pinion rotation system with gravity self centering rack guide shoe; no need of external adjustment. Low friction anti-seizure techno-polymer rotation top bush for an extra strong rotation power.

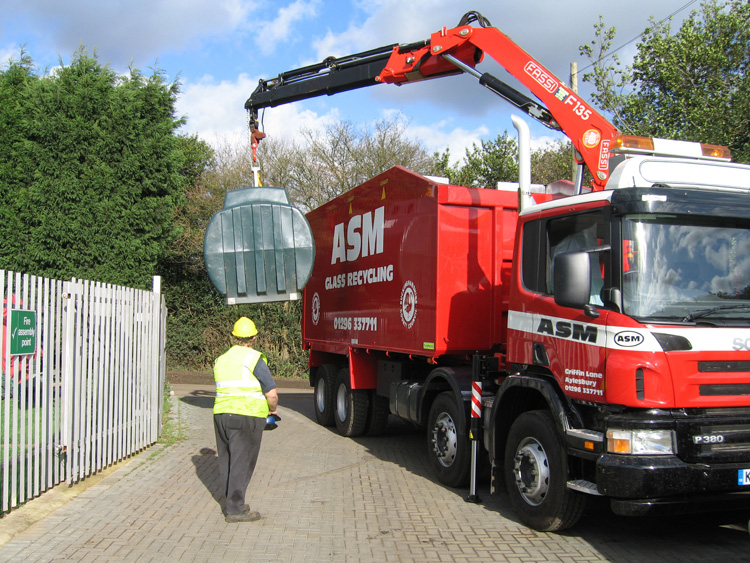

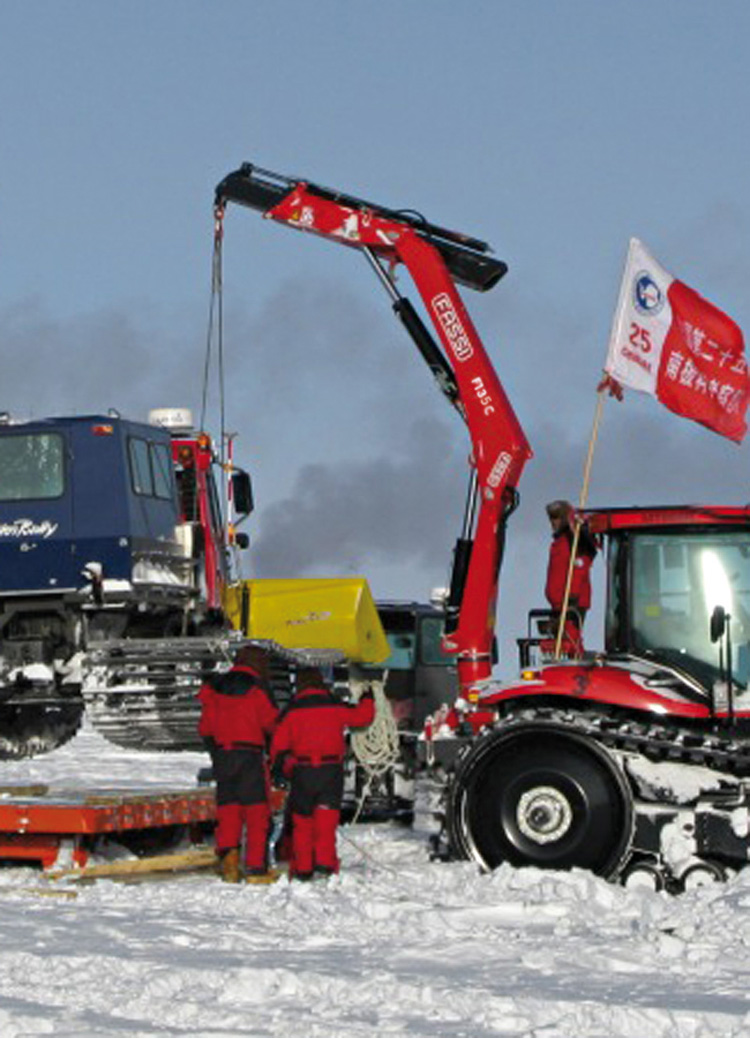

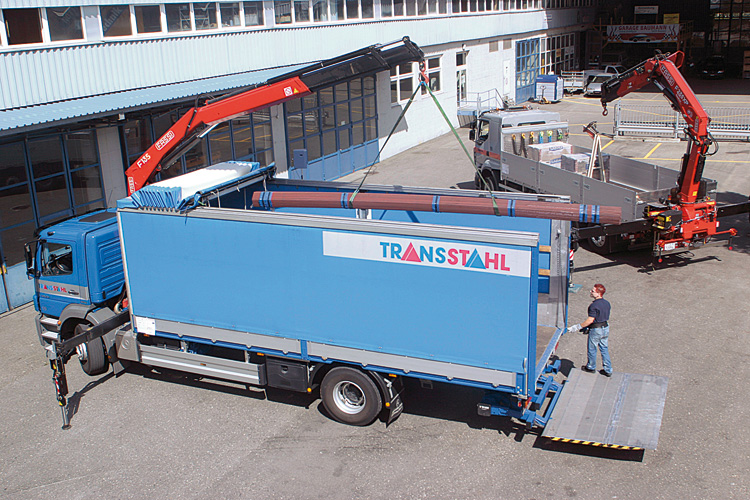

Gallery
Download area

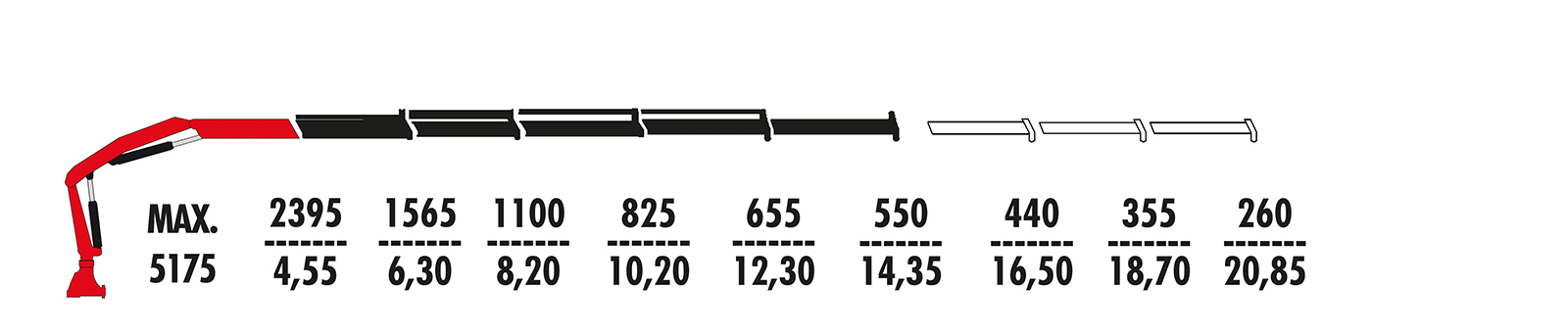

Maximum hydraulic reach
