F115AXS
F115AXS

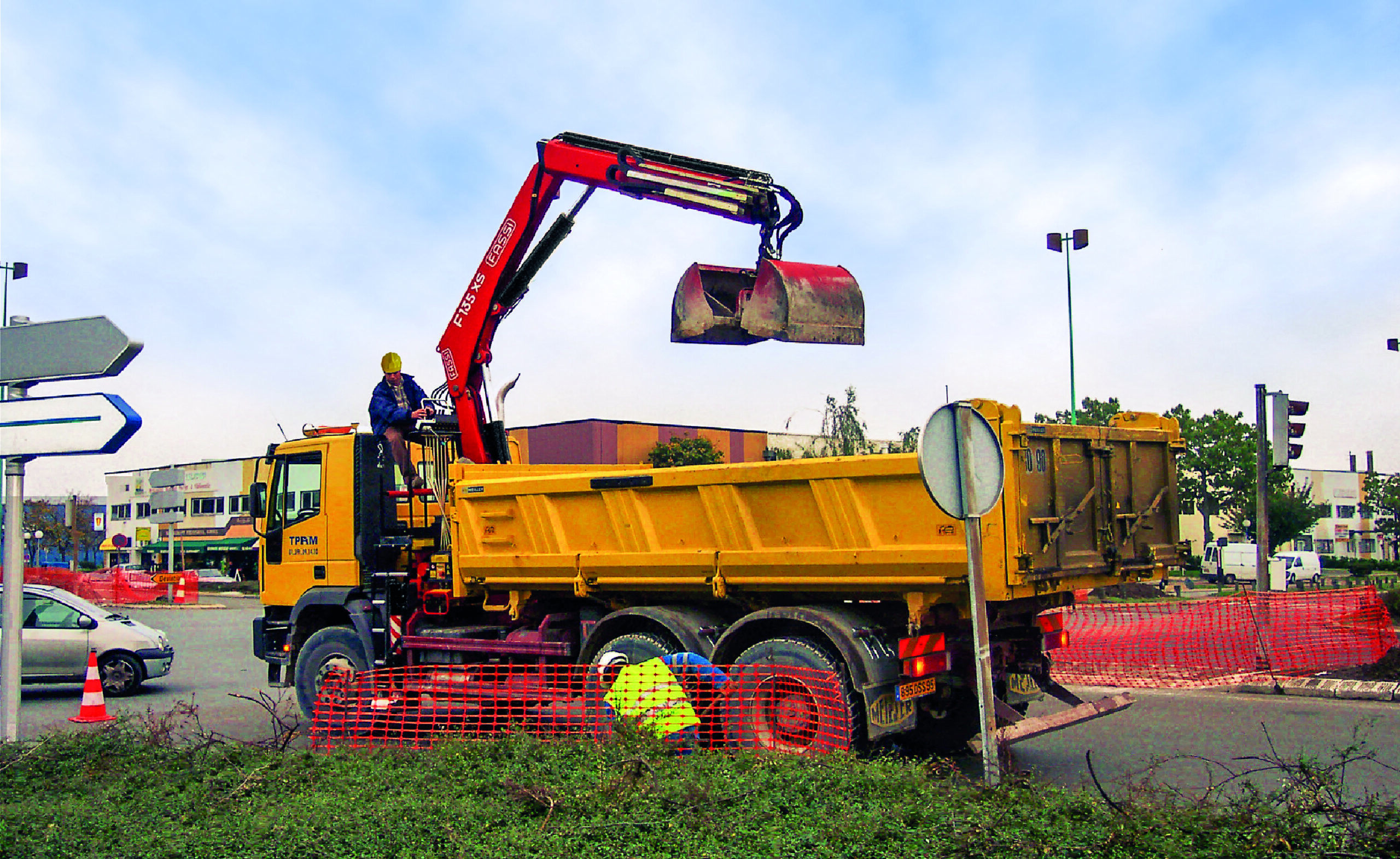

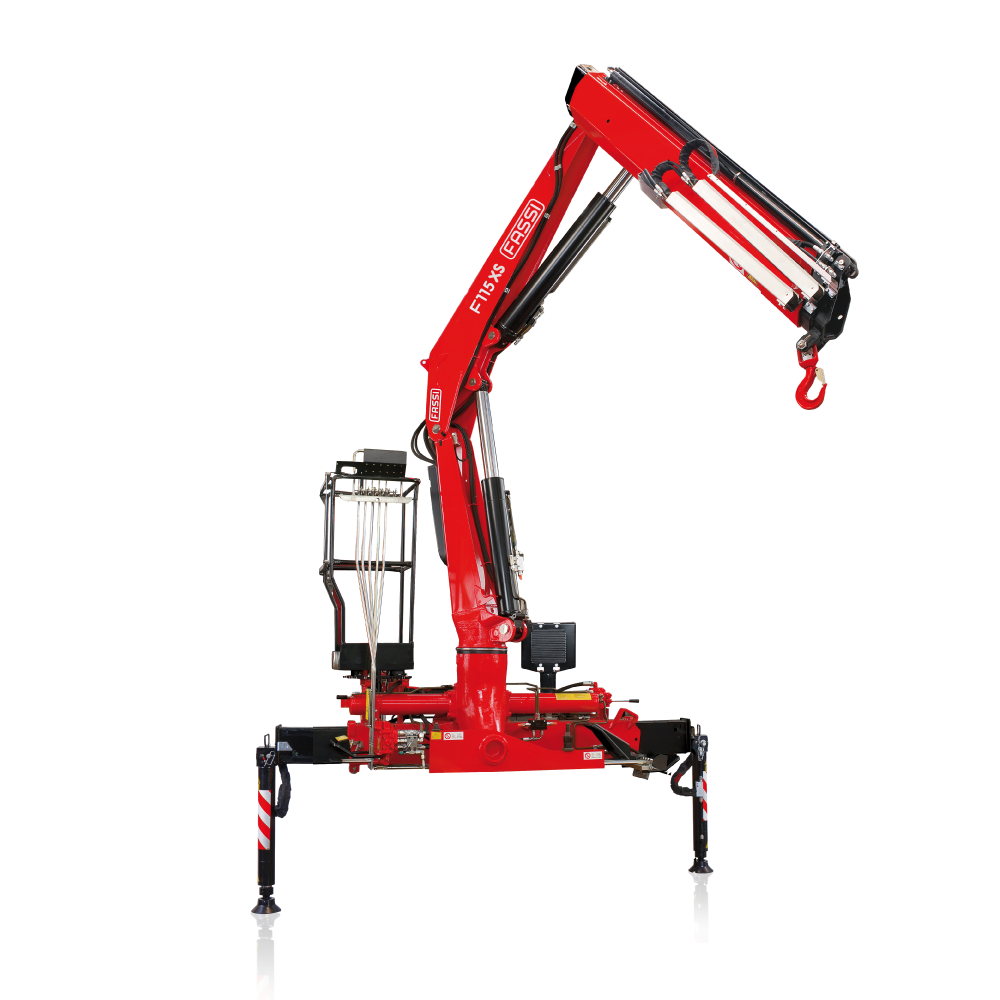

The Fassi F115AXS from the XS series is a compact crane designed for the operational needs of public works, where versatility and speed of intervention are essential. Thanks to the special Extra Speed configuration, these machines are designed to work efficiently with hydraulic accessories such as buckets and rotators, supported by hydraulic supercharging and an oversized distributor. The controls that can be operated from below and the raised third control station ensure greater control and safety during operations. Its particularly low weight facilitates installation on compact vehicles, making it ideal for use in urban environments and road construction sites. An agile and high-performance solution for those who work daily in maintenance and land management.
Model specifications
| kg/m | kNm | tm | m | m | ° | kNm | MPa | l/min | l | kg | mm | mm | mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F115AXS.021 | 109 | 11,11 | 6,25 | 1,95 | 390 | 14,1 | 25 | 50 | 90 | 1390 | 2390 | 805 | 2205 |
| F115AXS.022 | 107 | 10,70 | 8,10 | 3,70 | 390 | 14,1 | 35 | 30 | 90 | 1520 | 2305 | 805 | 2205 |
Strengths
FX500 – Fassi Electronic Control
A system that electronically controls the load conditions of the crane, of the hydraulic and manual extensions and of the winch, manages the lifting moment with the possibility to activate different work sectors, in relation to the stability condition of the vehicle/crane unit. In addition, it transmits and records the working data.
FX500 – Fassi Electronic Control
A system that electronically controls the load conditions of the crane, of the hydraulic and manual extensions and of the winch, manages the lifting moment with the possibility to activate different work sectors, in relation to the stability condition of the vehicle/crane unit. In addition, it transmits and records the working data.
Download area

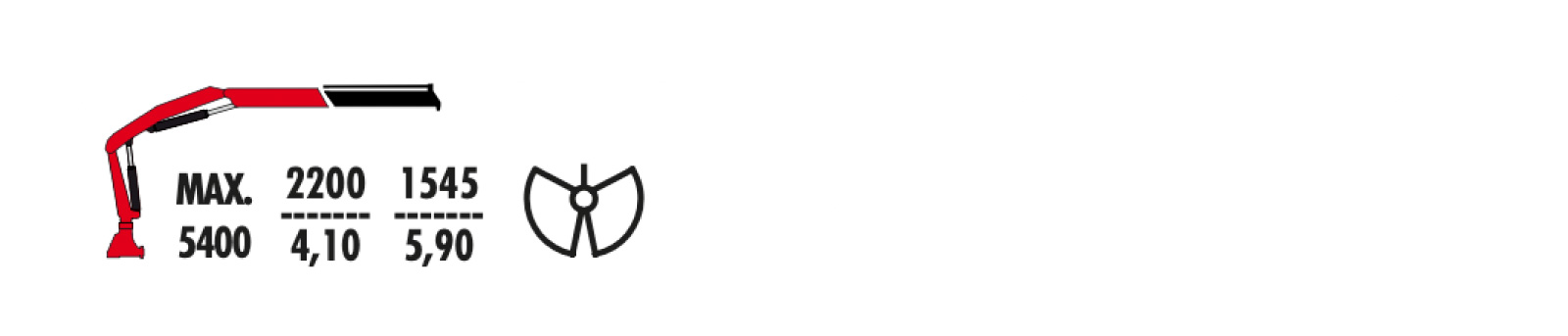

Maximum hydraulic reach
