F1050R-HXP Techno
F1050R-HXP Techno

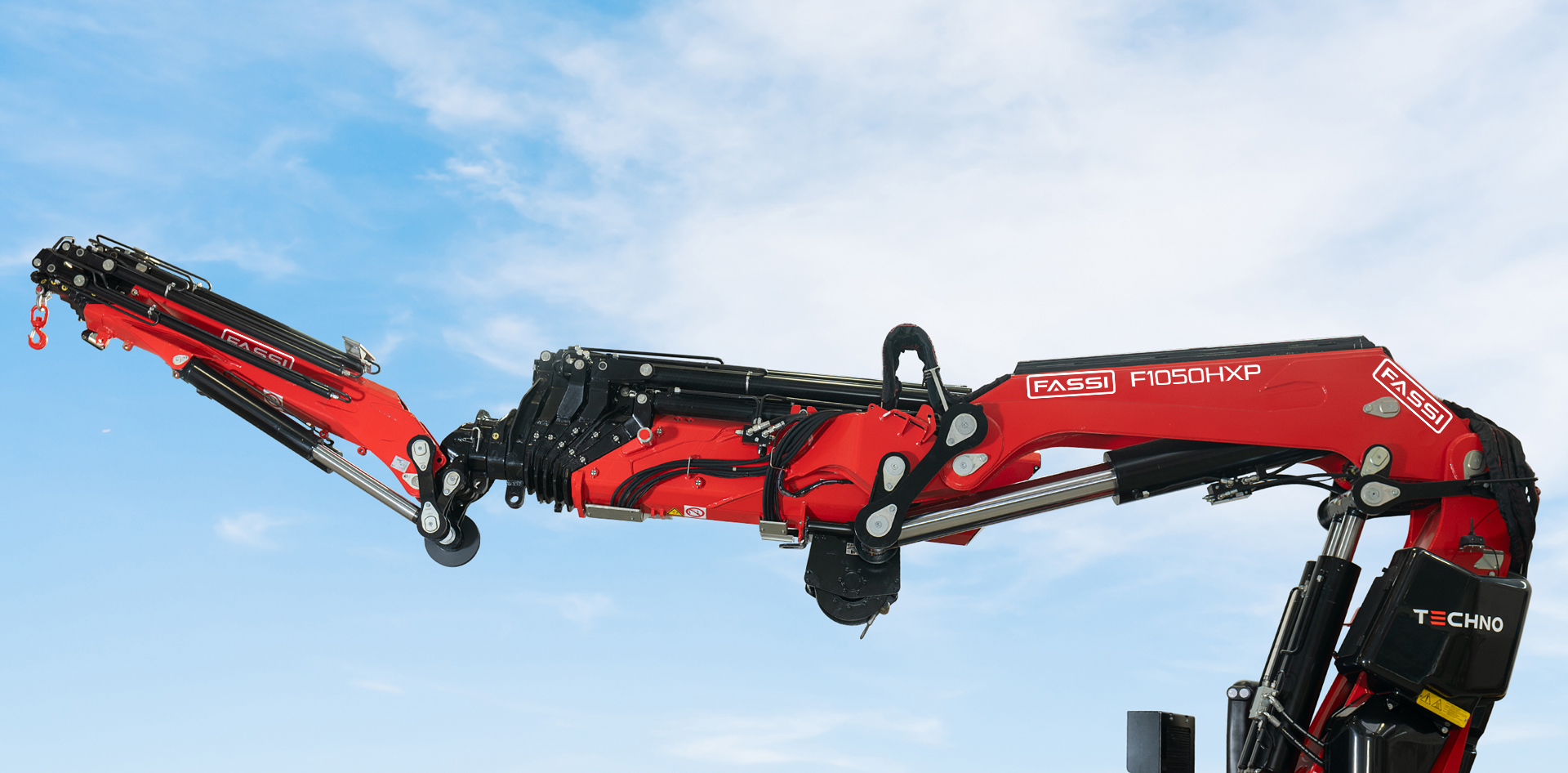

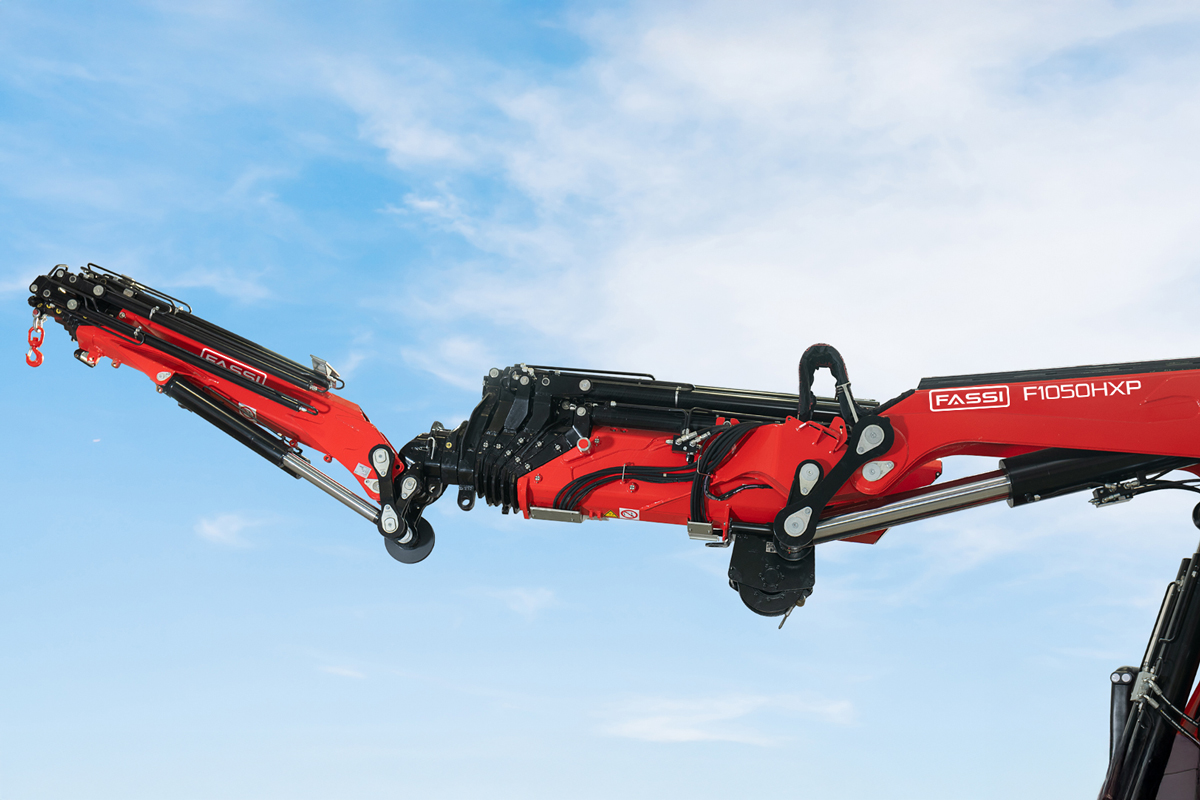

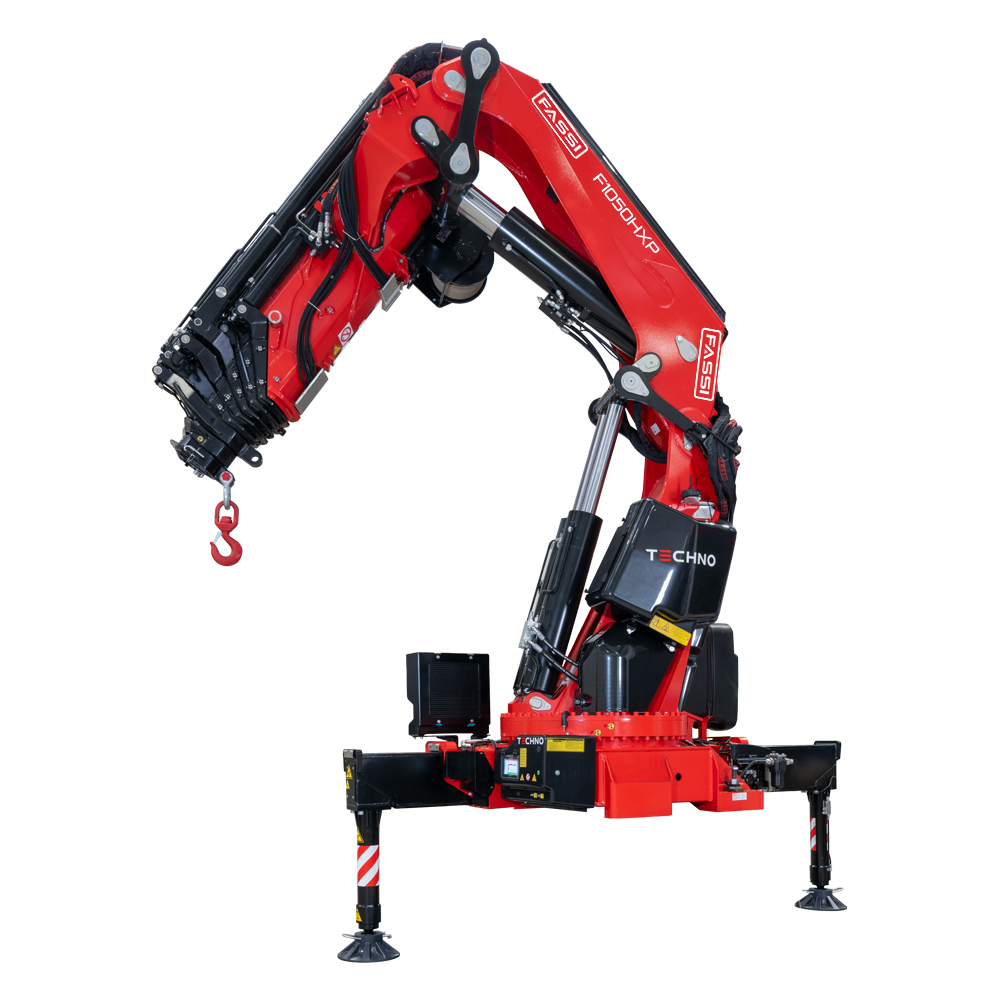

The F1050R-HXP TECHNO brings together all the innovations of the TECHNO range in a powerful and compact crane, with a maximum moment of 88.6 tm (869 kNm) and a hydraulic outreach of up to 33.40 m with jib. The structure, with 9 telescopic extensions, combined with the double linkage with ProLink system, ensures operational versatility and high performance even in complex spaces.
Equipped with the FX990 control unit with FX991 display, electronic IMC system, D900 digital distributor and ADC dynamic control, this crane offers the utmost precision in every manoeuvre. Distinctive features include continuous slew-ring rotation, XP device, flow sharing and a power-to-weight ratio optimised by the use of UHSS steels.
Model specifications
| Modello | kNm | tm | m | ° | kNm | MPa | l/min | l | kg | mm | mm | mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F1050R.2.4 | 88,60 | 11,15 | 7,00 | 360° | 80 | 35,5 | 100 | 250 | 7505 | 2525 | 1785 | 2485 |
| F1050R.2.5 | 86,40 | 13,25 | 9,05 | 360° | 80 | 34,5 | 100 | 250 | 7875 | 2525 | 1780 | 2485 |
| F1050R.2.6 | 85,60 | 15,45 | 11,20 | 360° | 80 | 35,5 | 100 | 250 | 8255 | 2535 | 1785 | 2485 |
| F1050R.2.6 L626 | 85,60 | 27,50 | 20,15 | 360° | 80 | 35,5 | 100 | 250 | 9795 | 2540 | 1910 | 2795 |
| F1050R.2.7 | 84,40 | 17,55 | 13,20 | 360° | 80 | 35,5 | 100 | 250 | 8510 | 2545 | 1890 | 2485 |
| F1050R.2.7 L436 | 84,40 | 29,45 | 22,10 | 360° | 80 | 35,5 | 100 | 250 | 9805 | 2550 | 1995 | 2795 |
| F1050R.2.7 L626 | 84,40 | 29,45 | 22,10 | 360° | 80 | 35,5 | 100 | 250 | 10045 | 2545 | 1995 | 2485 |
| F1050R.2.8 | 83,90 | 19,60 | 15,15 | 360° | 80 | 35,5 | 100 | 250 | 8735 | 2540 | 1890 | 2790 |
| F1050R.2.8 L436 | 83,90 | 31,45 | 24,05 | 360° | 80 | 35,5 | 100 | 250 | 9995 | 2535 | 1995 | 2485 |
| F1050R.2.8 L626 | 83,90 | 31,45 | 24,05 | 360° | 80 | 35,5 | 100 | 250 | 10260 | 2550 | 1995 | 2870 |

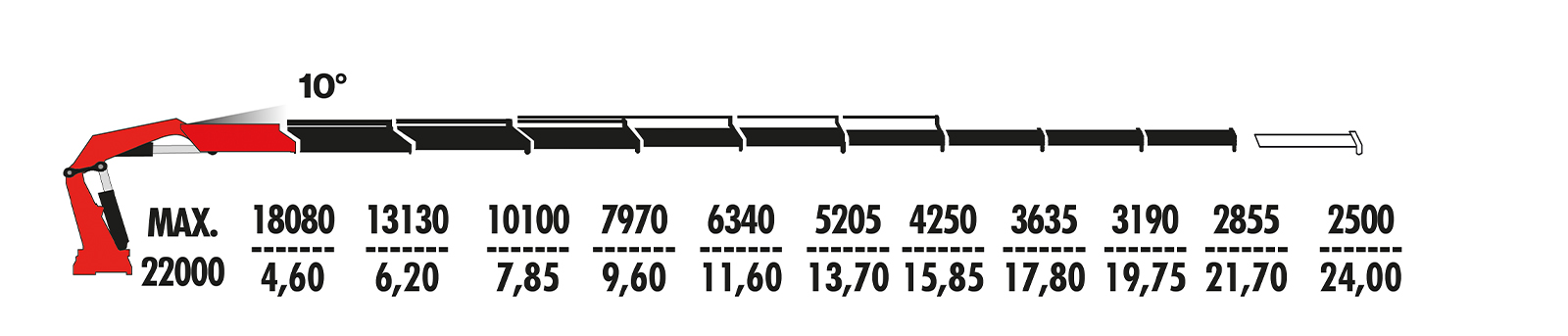

| F1050R.2.9 | 83,30 | 21,70 | 17,10 | 360° | 80 | 35,5 | 100 | 250 | 8990 | 2545 | 1890 | 2580 |
| F1050R.2.9 L436 | 83,30 | 33,40 | 26,00 | 360° | 80 | 35,5 | 100 | 250 | 10310 | 2545 | 1995 | 2915 |
Legend
Crane Height
Lifting capacity
Oil tank capacity
Rotational torque (lbs)
Rotational torque (mt)
Hydraulic boom extension
Mounting width
Crane Width
Maximum hydraulic outreach
Crane weight
Pump flow rate (gpm)
Pump flow rate (l/min)
Flow rate (gpm)
Pump flow rate (l/min)
Operating pressure (MPa)
Operating pressure (psi)
Rotation
Strengths
ADC – Automatic Dynamic Control
A control system developed by Fassi automatically controlling the dynamics of all the crane functions maximizing the speed of movement depending on the handled load, allowing only controlled movements and minimizing the structural stress on both the crane and the frame/sub frame of the vehicle.
CPM – Crane Position Monitoring
A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.
FS – Flow Sharing
A system that proportionally distributes the oil from the pump to all manoeuvres simultaneously. It allows the operation of more functions at the same time by distributing the available oil flow proportionally to the desired functions and at the desired speed guaranteeing the perfect multifunction ability of the hydraulic distributor.
XF – Extra Fast
MPES – Multi Power Extension System
A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.
XP – Extra Power
A Fassi system that activates an excess of power in the most difficult situations, precisely when it’s necessary, proportionally reducing the speed of the crane movements but, at the same time, increasing the lifting capacity.
PROLINK – Progressive Link
Exclusive Fassi system, built up by a longer outer lifting ram in conjunction with the linkage system, allowing to increase the working angle of the crane above the horizontal line from 10° to 15° according to the model, still maintaining in this configuration the nominal lifting performances. Prolink find application as well on the articulation ram of the jibs, with an increase of the working angle of the jib above the horizontal line from 10° to 20°.
UHSS – Ultra High Stregth Steel
FWD – Fewer Welds Design
Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.
D900 – Digital Multifunction Distributor Bank
OTC – Oil Temperature Control
Temperature control device electronically controlled, thanks to the analogic temperature sensor fitted inside the oil cooler, is capable of maintaining an optimal temperature of the hydraulic system even in the most stressful condition of use. The temperature value is shown on the user control panel and radio control handle display.
FL – Full Lift
A system that allows you to select, based on operational needs, “FAST” (recycling valve activated) or “POWER” (recycling valve deactivated) while telescoping the booms. Selection is both via radio control thanks to the icon on the display or on the push button of the main control panel.
IMC – Integral Machine Control
It is the digital brain of the Fassi cranes which, through sophisticated electronics, in addition to the crane control systems, manages the best operating conditions to ensure the optimal machine performance and control applicable to all the work conditions. It uses a Can bus communication system between the peripheral sensors.
V7RRC – Radio Remote Control
FX991 – Touch Screen Display
FSC TECHNO – Fassi Stability Control
X-Design – Decagonal Section
JDP – Jib Dual Power
A Fassi system that provides a double level of lift capacity for the hydraulic jib, depending from the hydraulic reach of the crane in vertical condition, controlled by outer boom extensions, ensuring inimitable performances of the hydraulic jib.
FX990
ADC – Automatic Dynamic Control
A control system developed by Fassi automatically controlling the dynamics of all the crane functions maximizing the speed of movement depending on the handled load, allowing only controlled movements and minimizing the structural stress on both the crane and the frame/sub frame of the vehicle.
CPM – Crane Position Monitoring
A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.
FS – Flow Sharing
A system that proportionally distributes the oil from the pump to all manoeuvres simultaneously. It allows the operation of more functions at the same time by distributing the available oil flow proportionally to the desired functions and at the desired speed guaranteeing the perfect multifunction ability of the hydraulic distributor.
XF – Extra Fast
MPES – Multi Power Extension System
A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.
XP – Extra Power
A Fassi system that activates an excess of power in the most difficult situations, precisely when it’s necessary, proportionally reducing the speed of the crane movements but, at the same time, increasing the lifting capacity.
PROLINK – Progressive Link
Exclusive Fassi system, built up by a longer outer lifting ram in conjunction with the linkage system, allowing to increase the working angle of the crane above the horizontal line from 10° to 15° according to the model, still maintaining in this configuration the nominal lifting performances. Prolink find application as well on the articulation ram of the jibs, with an increase of the working angle of the jib above the horizontal line from 10° to 20°.
UHSS – Ultra High Stregth Steel
FWD – Fewer Welds Design
Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.
D900 – Digital Multifunction Distributor Bank
OTC – Oil Temperature Control
Temperature control device electronically controlled, thanks to the analogic temperature sensor fitted inside the oil cooler, is capable of maintaining an optimal temperature of the hydraulic system even in the most stressful condition of use. The temperature value is shown on the user control panel and radio control handle display.
FL – Full Lift
A system that allows you to select, based on operational needs, “FAST” (recycling valve activated) or “POWER” (recycling valve deactivated) while telescoping the booms. Selection is both via radio control thanks to the icon on the display or on the push button of the main control panel.
IMC – Integral Machine Control
It is the digital brain of the Fassi cranes which, through sophisticated electronics, in addition to the crane control systems, manages the best operating conditions to ensure the optimal machine performance and control applicable to all the work conditions. It uses a Can bus communication system between the peripheral sensors.
V7RRC – Radio Remote Control
FX991 – Touch Screen Display
FSC TECHNO – Fassi Stability Control
X-Design – Decagonal Section
JDP – Jib Dual Power
A Fassi system that provides a double level of lift capacity for the hydraulic jib, depending from the hydraulic reach of the crane in vertical condition, controlled by outer boom extensions, ensuring inimitable performances of the hydraulic jib.
FX990
Optional
ME – Manual Extension
Fassi designed, developed and patented system which, combined with the electronic systems FX500 and FX800, uses a dedicated software to decide whether the load applied to the manual extension can be lifted or not, with reference to the foreseen loads. The system also provides the evaluation of the applied load.
OHT – Outrigger Hydraulic Tilt
System which enables the tilt of hydraulically tiltable outriggers through hydraulic servomotor or servoram. Operating the specific tap, oil flow is diverted from the outrigger to the actuator and the ram manoeuvre is easily controlled by the operator, without the need to apply any force.
