M40A
M40A

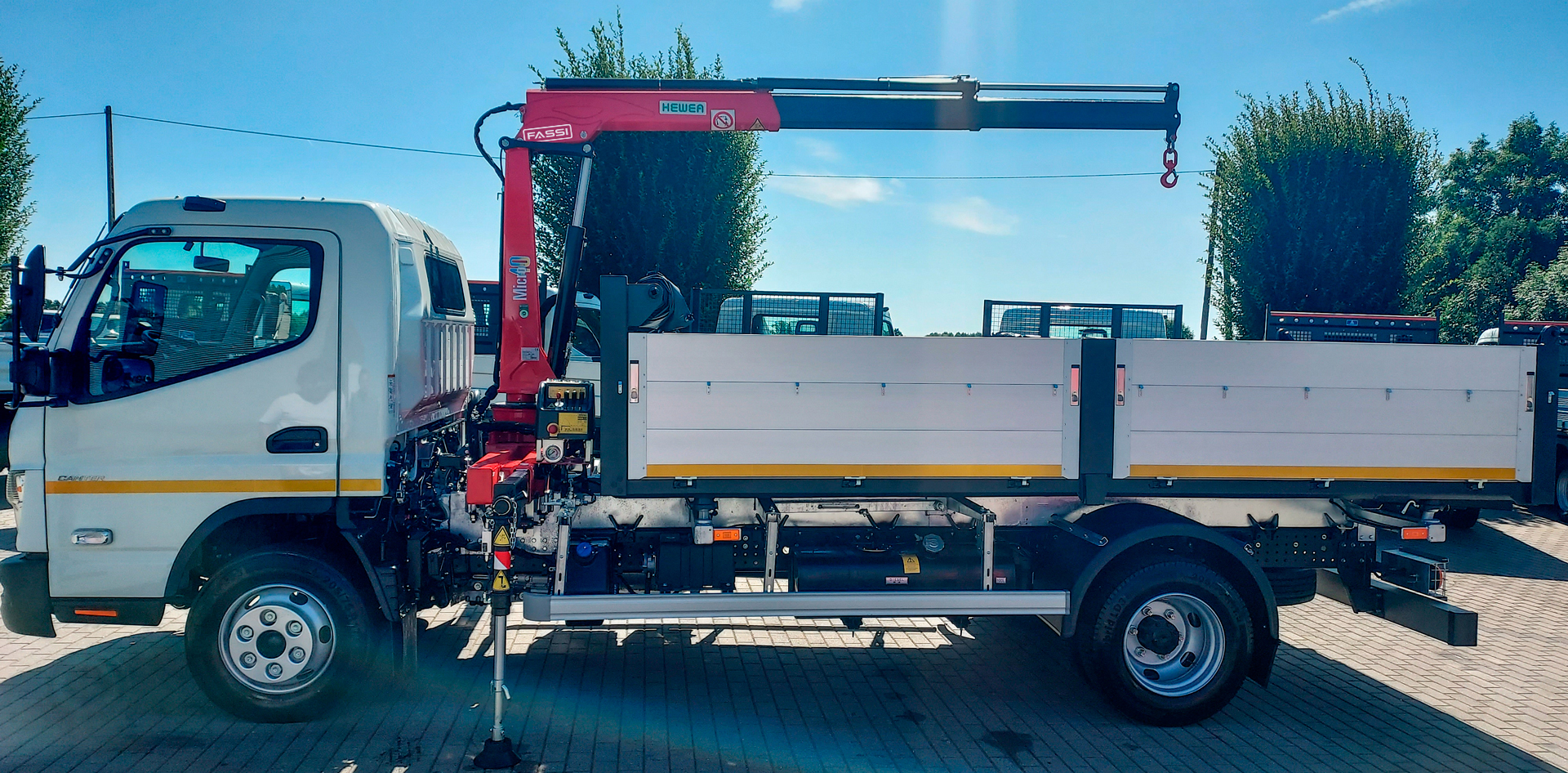

The M40A is the most powerful model from the Micro range: compact and designed for professional performance, even when fitted on light vehicles. With a lifting capacity of up to 4.10 tm and a maximum outreach of 5.85 m, it offers precision and reliability in limited space.
Equipped with the Walvoil monobloc hydraulic distributor, immediate stop devices and pressure gauge, the version (.1) with linkage ensures smooth movement and optimal control. Rotation with hydraulic motor and pinion, mechanically limited to 337°, guarantees manoeuvrability and operational safety.
Strengths
MPES – Multi Power Extension System
A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.
UHSS – Ultra High Stregth Steel
FWD – Fewer Welds Design
Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.
CQ – Cast Quality
Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components: less weldings, higher performance to fatigue cycles.
WL – Walvoil Distributor Bank
Parallel monobloc proportional hydraulic distributor bank. It is characterized by strength and simplicity of operation.
MPES – Multi Power Extension System
A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.
UHSS – Ultra High Stregth Steel
FWD – Fewer Welds Design
Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.
CQ – Cast Quality
Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components: less weldings, higher performance to fatigue cycles.
WL – Walvoil Distributor Bank
Parallel monobloc proportional hydraulic distributor bank. It is characterized by strength and simplicity of operation.
Download area

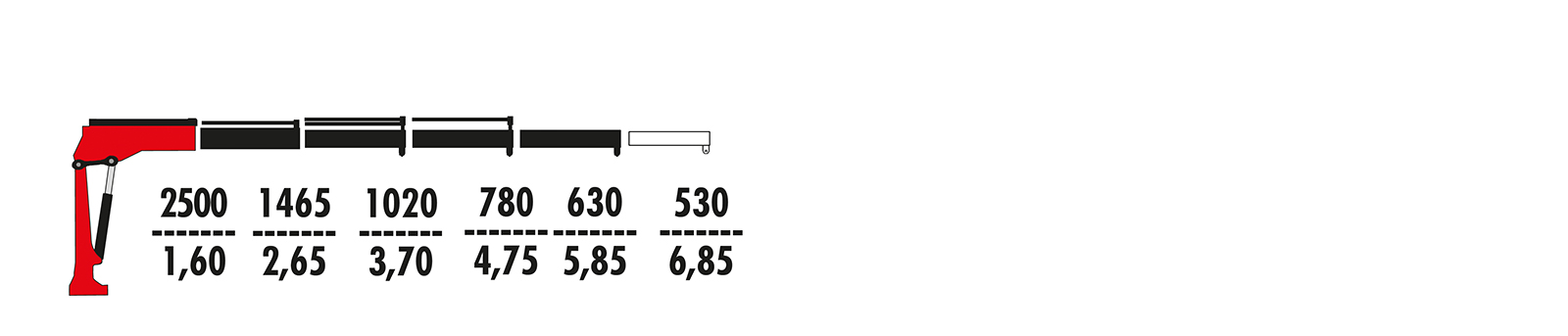

Maximum hydraulic reach
