M10A
M10A

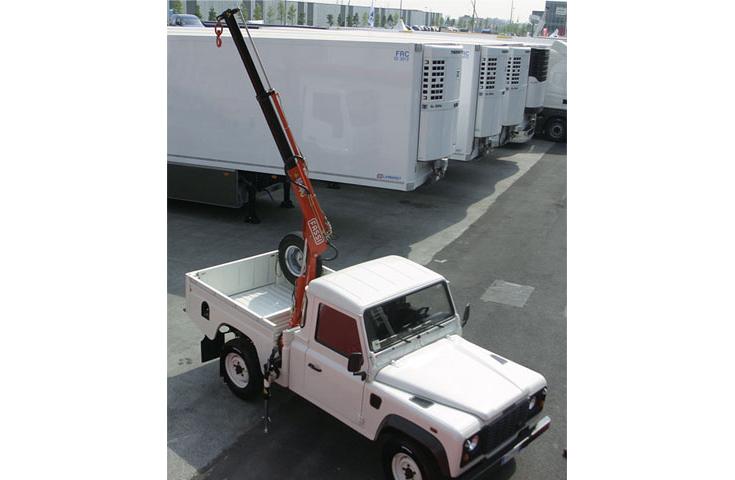

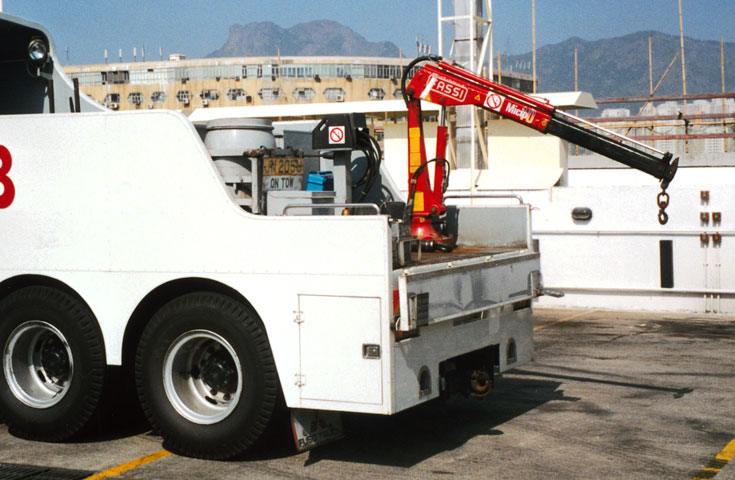

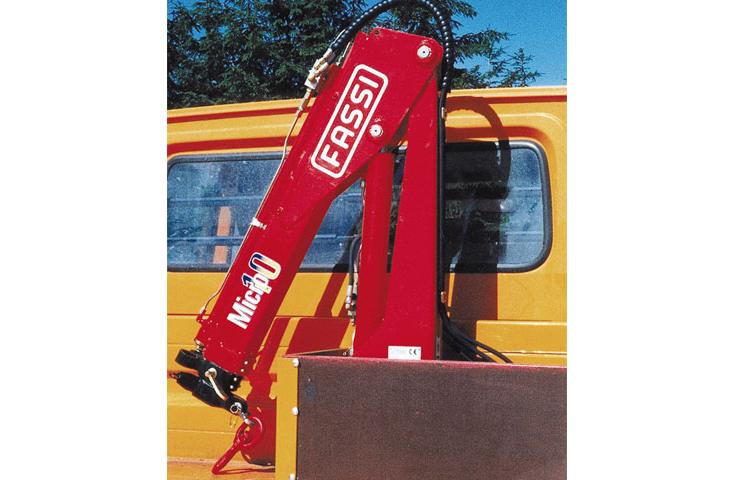

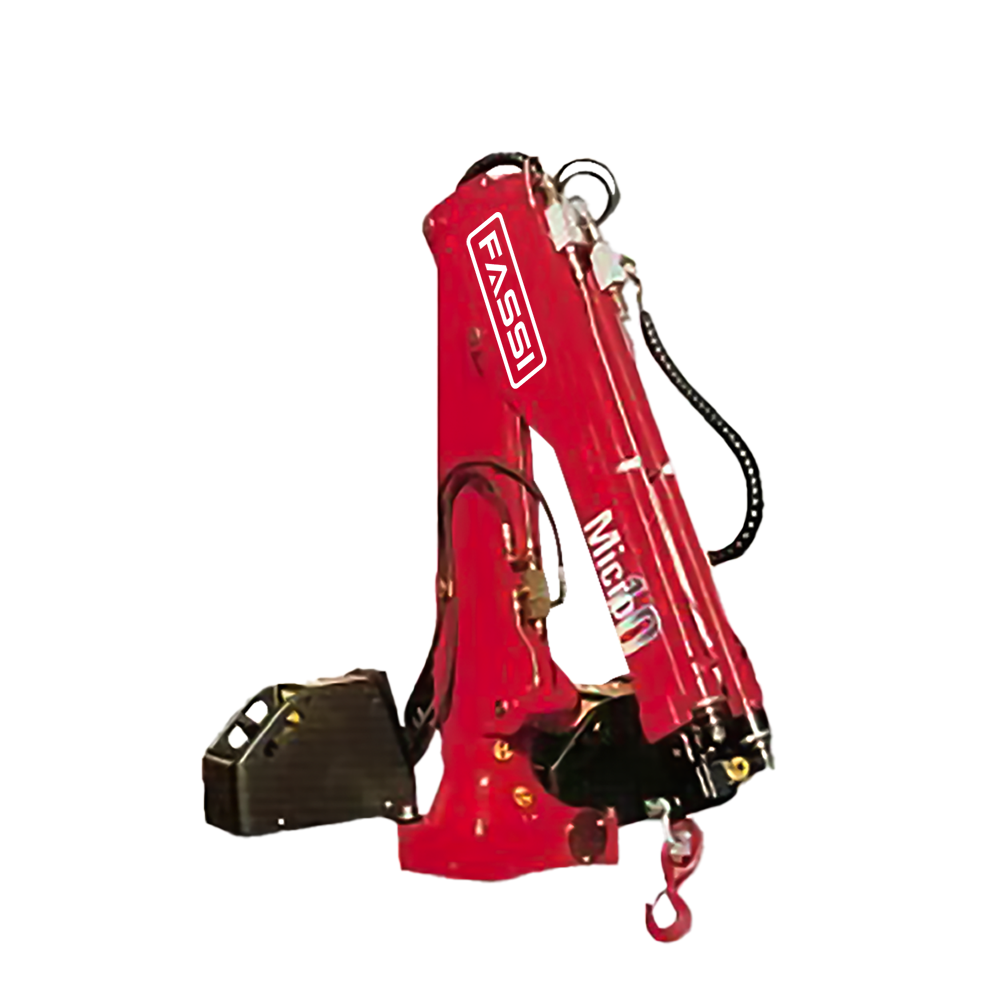

The most compact crane in the range, the Fassi M10A is designed to provide the utmost agility in limited spaces without sacrificing functionality or safety. With a lifting capacity of up to 1.12 tm and a maximum hydraulic outreach of 2.70 m, it is the ideal solution for light-duty operations and low-capacity vehicles.
Its extremely compact dimensions allow for versatile installation, leaving the truck bed free for the load.
The equipment range includes a Walvoil monobloc hydraulic distributor, immediate stop devices and pressure gauge, while mechanically limited 325° rotation with hydraulic motor and pinion ensures smooth and precise manoeuvres.
Model specifications
| Modello | tm | m | m | ° | kNm | MPa | l/min | l | kg | kg | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M10A.11 | 1,1 | 1,9 | 0,8 | 325 | 1,9 | 18 | 6 | 15 | 145 | 40 | 95 |

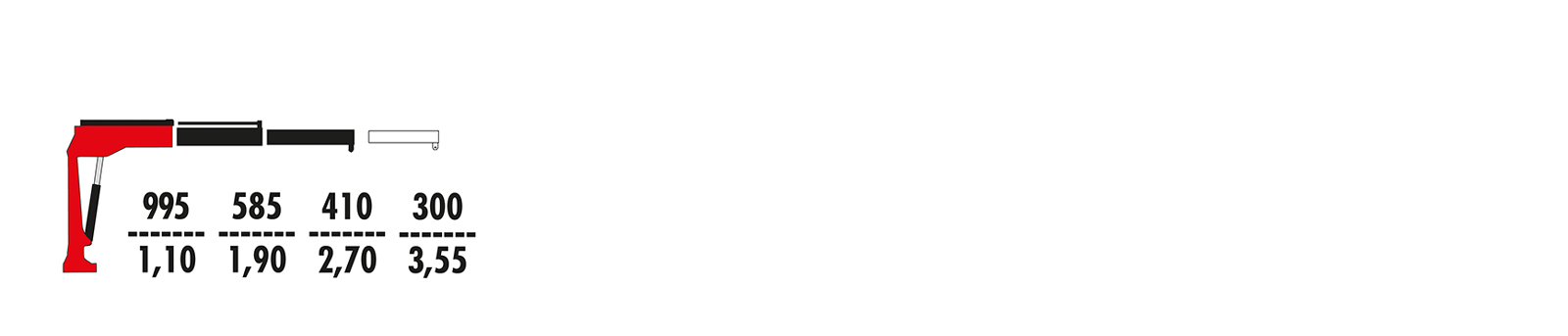

| M10A.12 | 1,1 | 2,7 | 1,6 | 325 | 1,9 | 18 | 6 | 15 | 155 | 40 | 95 |
| lbs/ft | lbs.ft | ft | ft | ° | lbs.ft | psi | gpm | gal | lbs | lbs | lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M10A.11 | 8063 | 6’3” | 2’7″ | 325 | 1402 | 2610 | 1 | 4 | 319 | 114 | 246 |
| M10A.12 | 8063 | 8’10” | 5’2″ | 325 | 1402 | 2610 | 1 | 4 | 341 | 114 | 246 |
Legend
Crane Height
Lifting capacity
Oil tank capacity
Rotational torque (lbs)
Rotational torque (mt)
Hydraulic boom extension
Mounting width
Crane Width
Maximum hydraulic outreach
Crane weight
Pump flow rate (gpm)
Pump flow rate (l/min)
Flow rate (gpm)
Pump flow rate (l/min)
Operating pressure (MPa)
Operating pressure (psi)
Rotation
Strengths

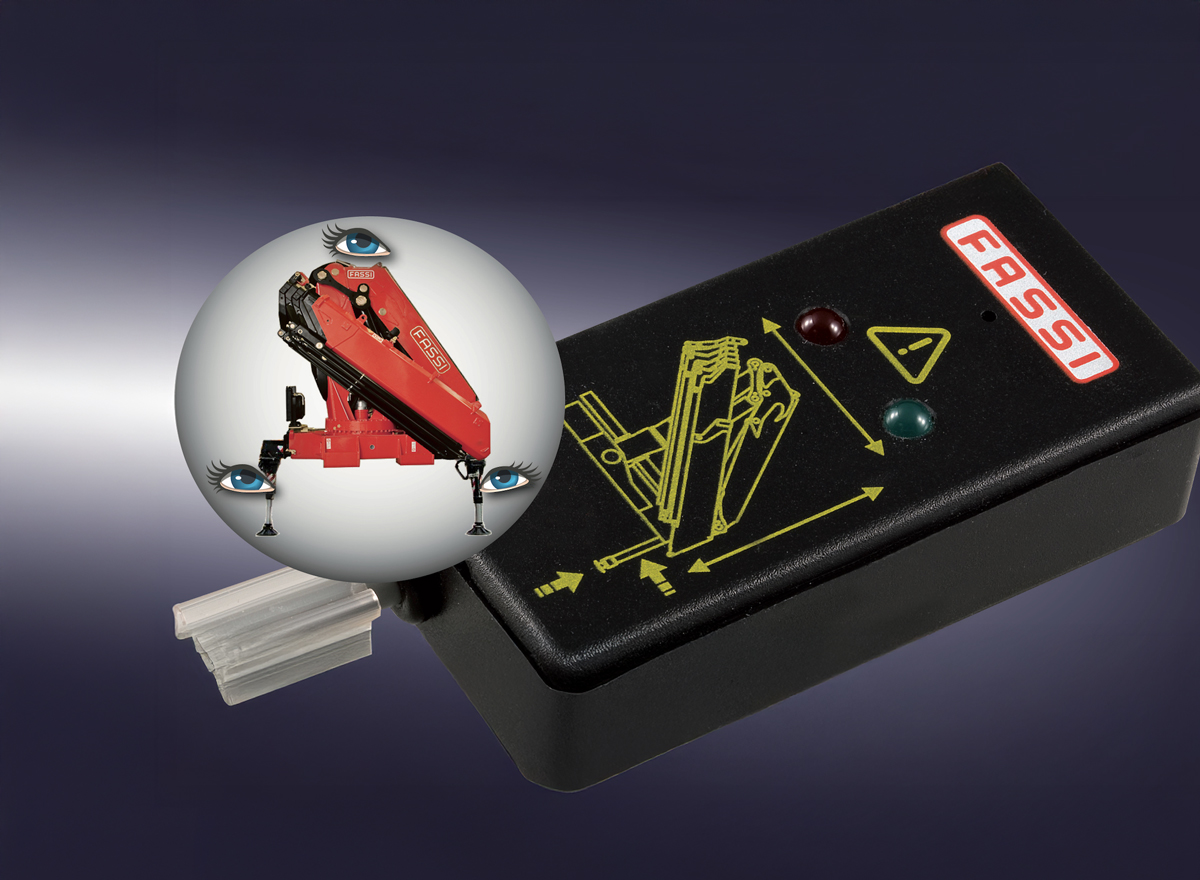

CPM – Crane Position Monitoring
A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.

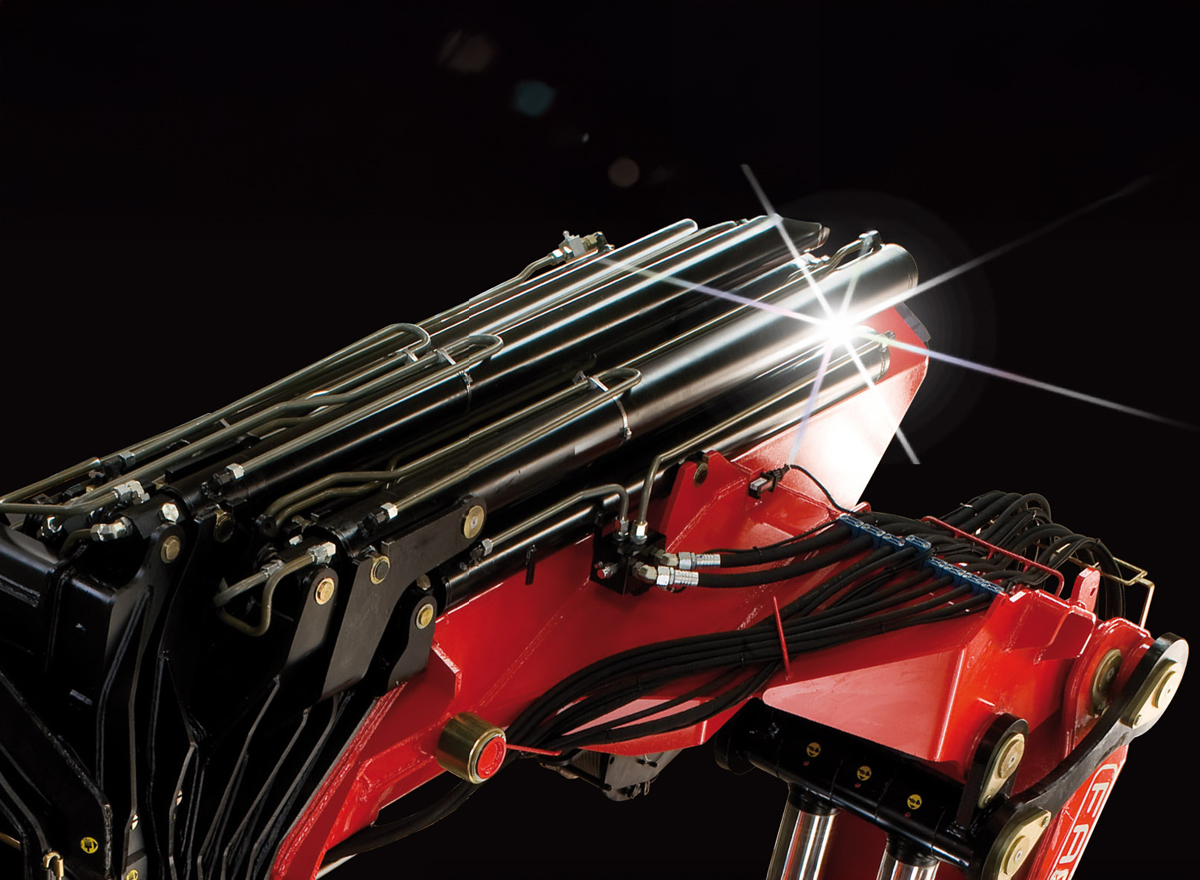

MPES – Multi Power Extension System
A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.
UHSS – Ultra High Stregth Steel

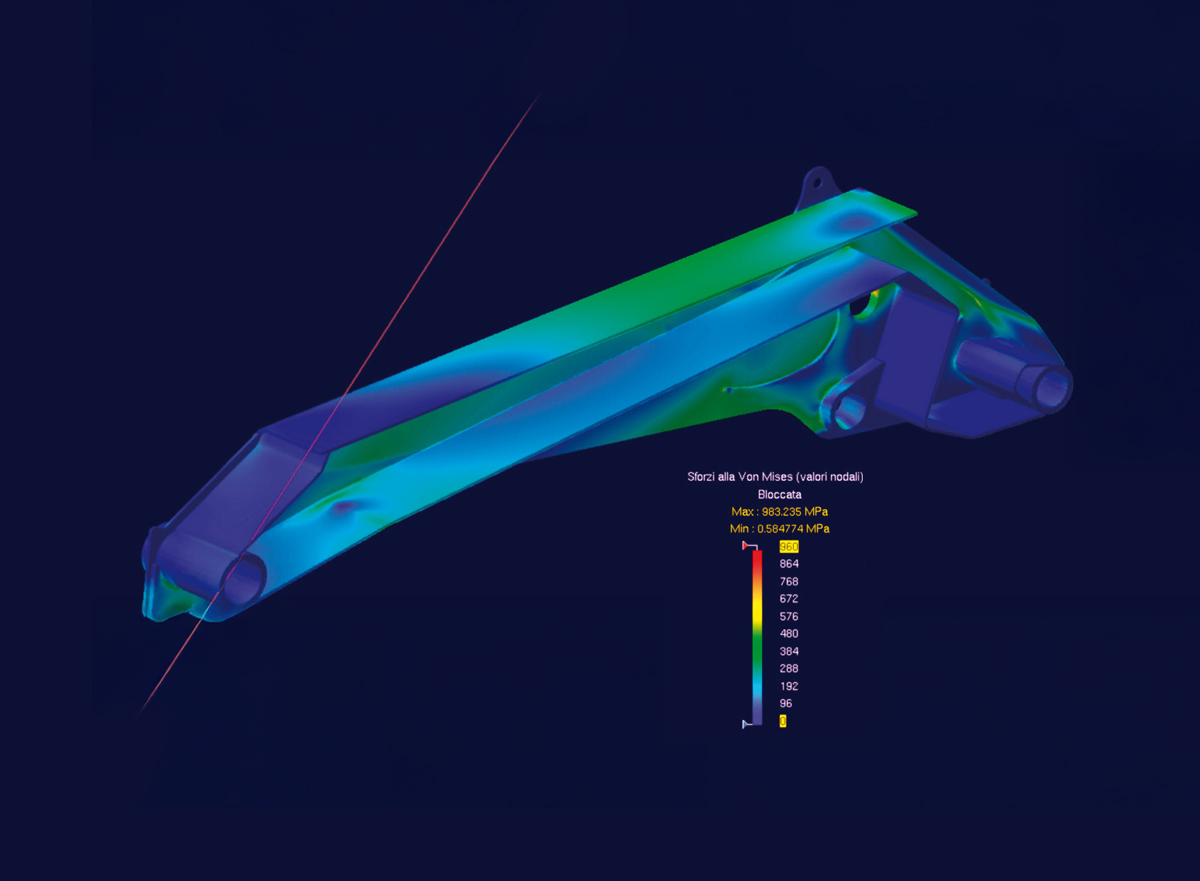

FWD – Fewer Welds Design
Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.

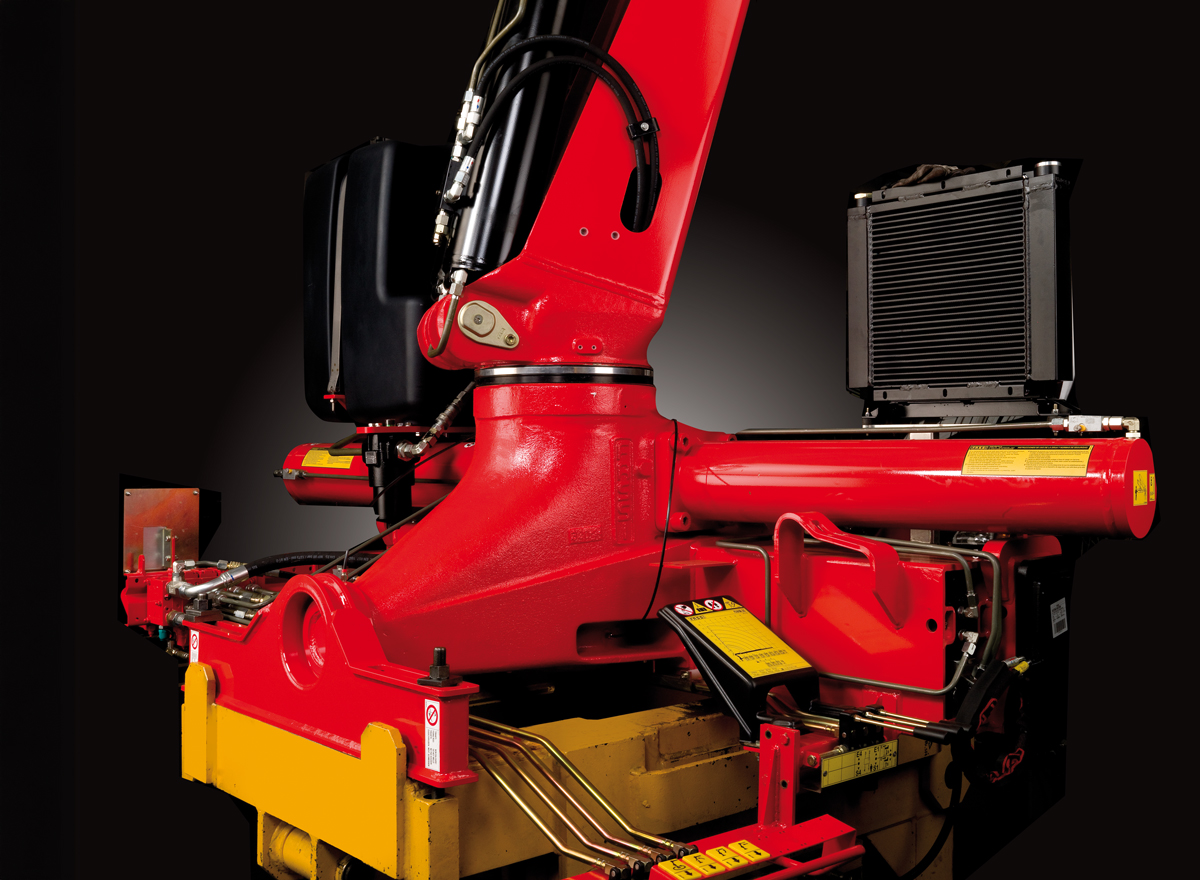

CQ – Cast Quality
Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components: less weldings, higher performance to fatigue cycles.

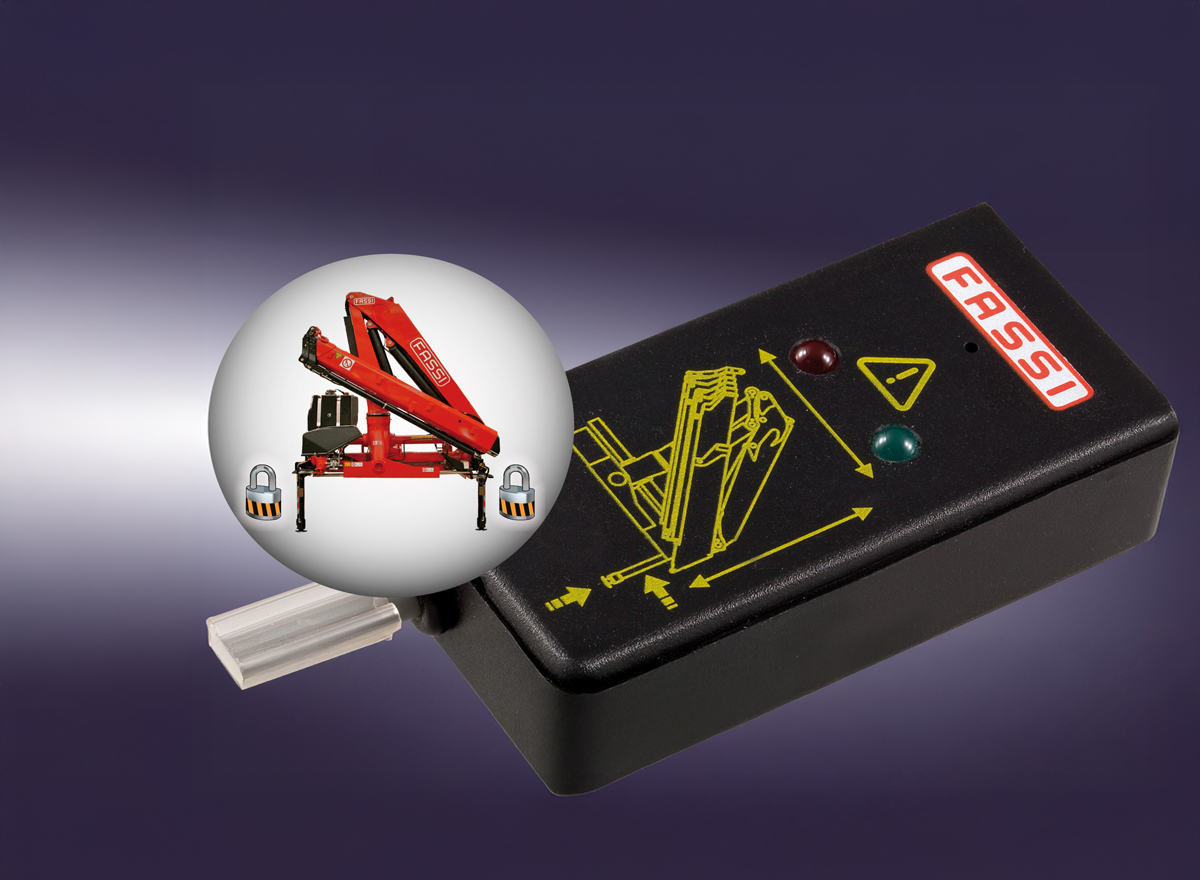

MOL – Manual Outriggers Lock
A security system that detects the engagement of the safety latch of the primarily locking pin of side manually extendable outrigger supports, at rest in the transport position. It is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.

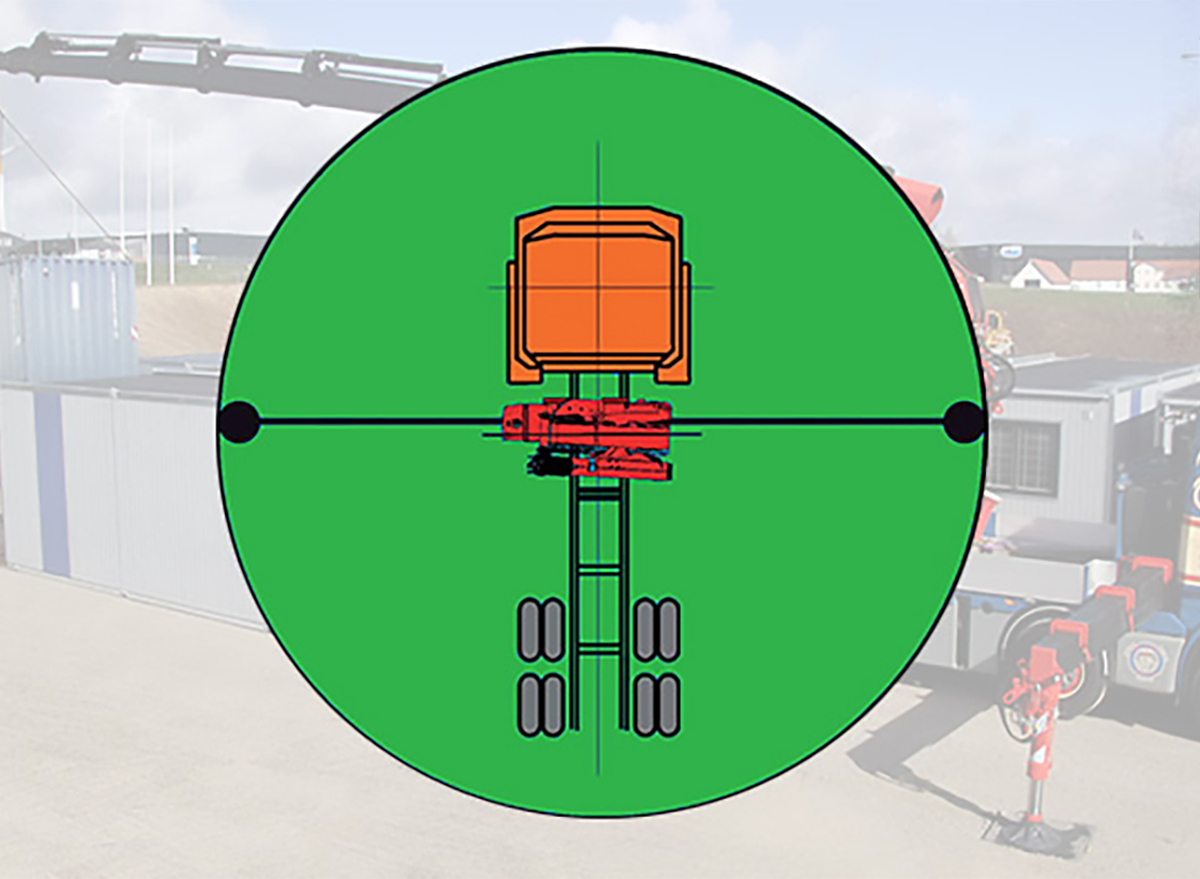

FSC/L – Fassi Stability Control/Low
System that allows crane operation only when all the outrigger supports are completely extended and all the outrigger rams are placed in working position touching the ground.
LLV – Load Limiting Verification
Rated load reader for manual extensions. It is provided in combination with the electronic (for Micro cranes) and HO hydraulic lifting moment limiting devices.

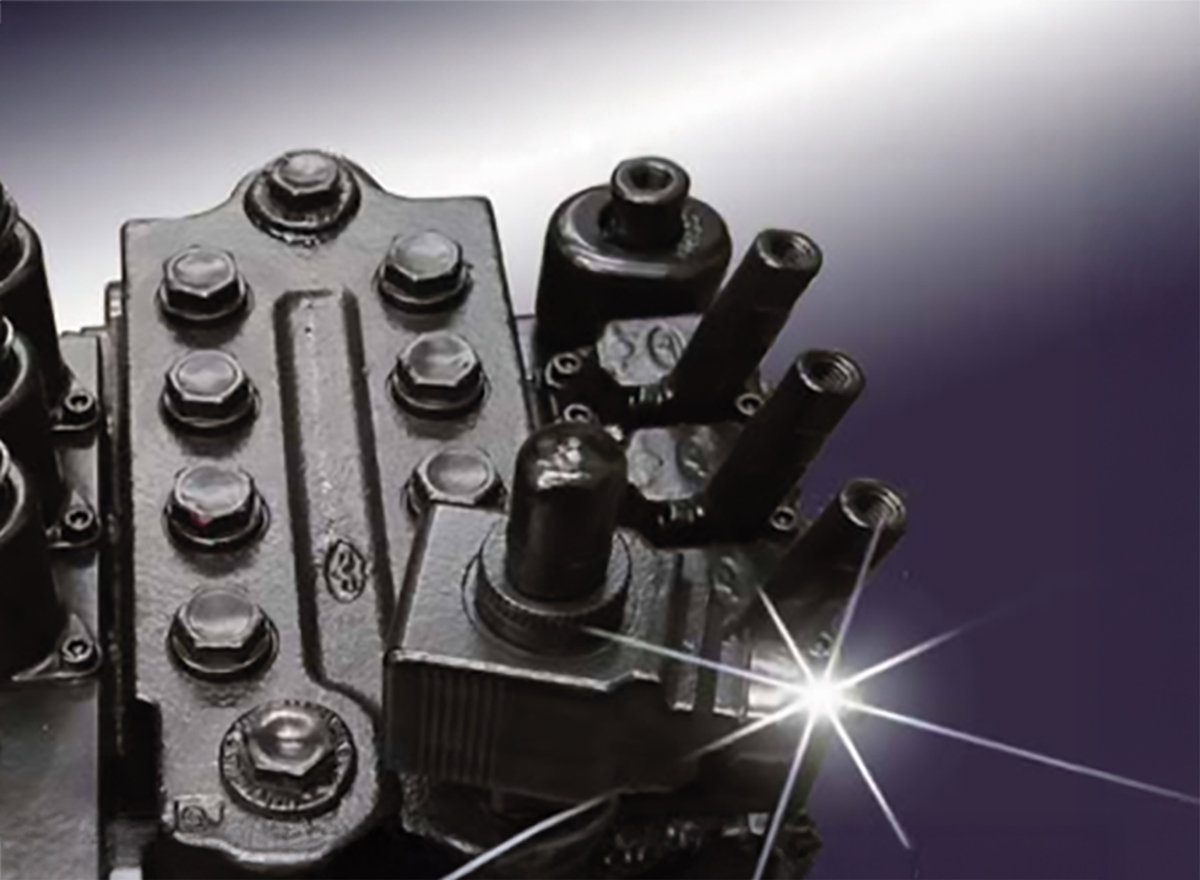

WL – Walvoil Distributor Bank
Parallel monobloc proportional hydraulic distributor bank. It is characterized by strength and simplicity of operation.
CPM – Crane Position Monitoring
A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.
MPES – Multi Power Extension System
A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.
UHSS – Ultra High Stregth Steel
FWD – Fewer Welds Design
Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.
CQ – Cast Quality
Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components: less weldings, higher performance to fatigue cycles.
MOL – Manual Outriggers Lock
A security system that detects the engagement of the safety latch of the primarily locking pin of side manually extendable outrigger supports, at rest in the transport position. It is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.
FSC/L – Fassi Stability Control/Low
System that allows crane operation only when all the outrigger supports are completely extended and all the outrigger rams are placed in working position touching the ground.
LLV – Load Limiting Verification
Rated load reader for manual extensions. It is provided in combination with the electronic (for Micro cranes) and HO hydraulic lifting moment limiting devices.
WL – Walvoil Distributor Bank
Parallel monobloc proportional hydraulic distributor bank. It is characterized by strength and simplicity of operation.
