F390SE
F390SE

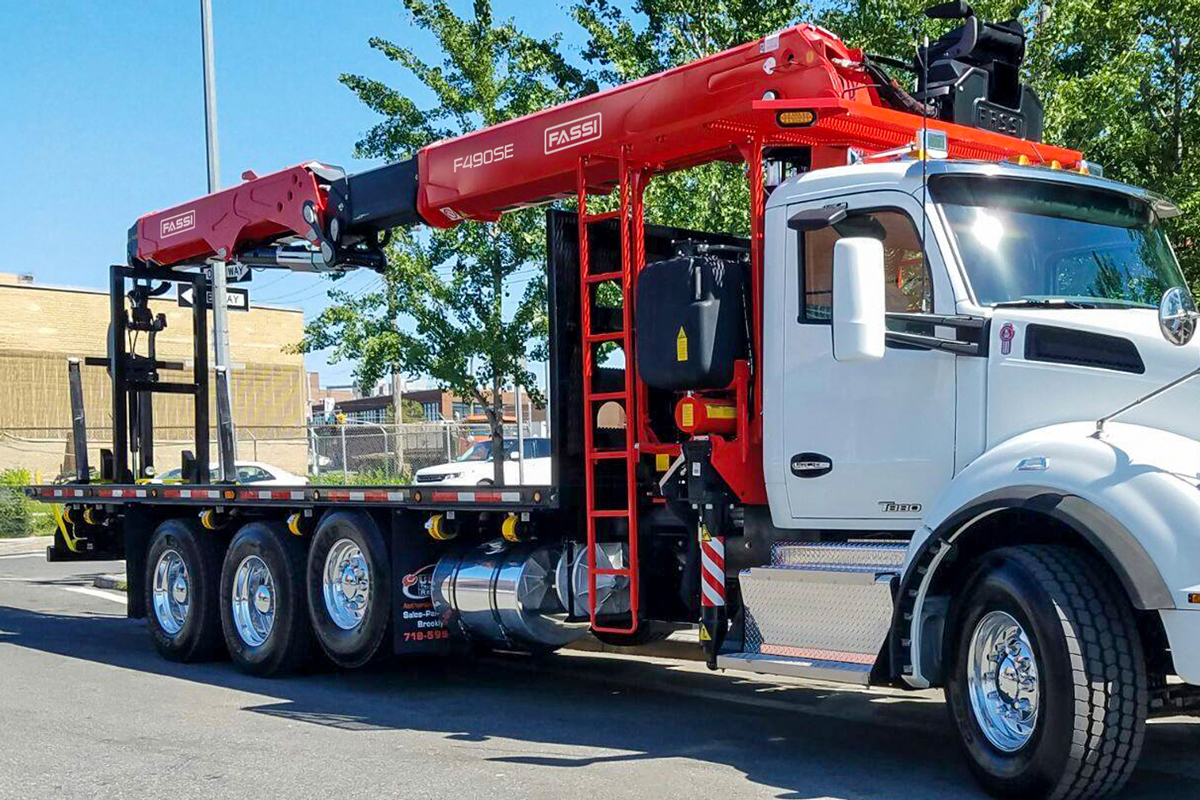

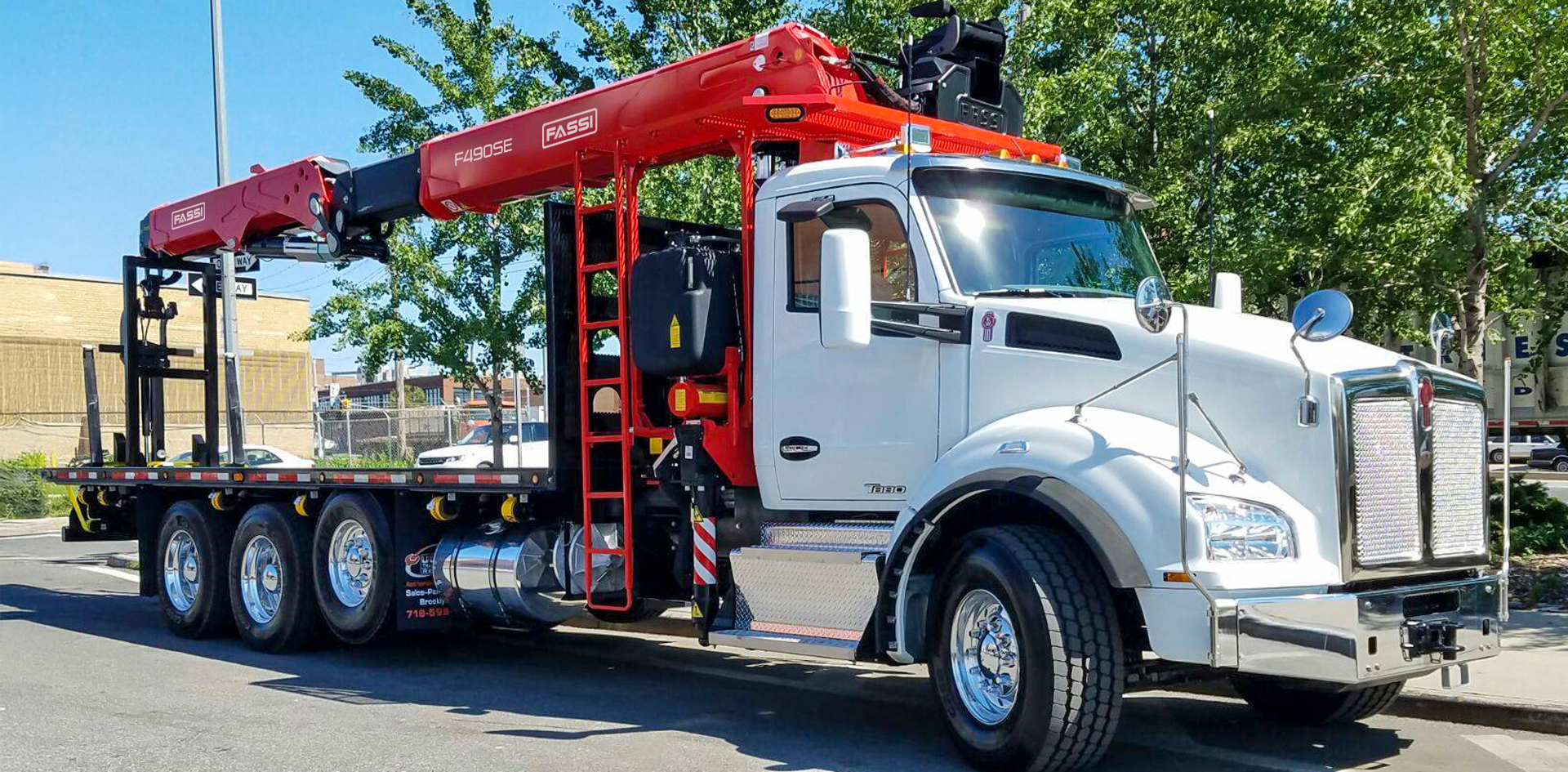

The Fassi F390SE represents the ideal combination of power and control, ideal for the most demanding operations in the heavy-duty lifting sector. With a lifting capacity of up to 270,868 lbs ft and a maximum outreach of up to 78’ 11”, this crane represents an excellent solution for applications requiring high performance and consistent reliability.
The advanced hydraulic equipment includes the hydraulic LMI control unit, the Danfoss PGV32 multifunctional distributor and seated control units, offering the operator direct, safe and intuitive control.
The double linkage system increases the versatility and efficiency of movement, while 430° rotation with rack and pinion ensures smoothness, precision and a wide manoeuvring range. With a design that is compact for its class, the F390SE combines solid construction and technology to ensure maximum performance at all times.
Model specifications
| Modello | Lifting capacity | Standard reach | Hydraulic extension | Rotation arc | Rotation torque | Working pressure | Pump capacity | Oil tank capacity | Outriggers spread crane | Supplementary outriggers | Max Crane Angle | *Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F390SE.22 | 267622 lbs.ft | 61’10’’ ft | 34’5’’ ft | 430° | 49112 lbs.ft | 4206 psi | 16+16 gal/min | 66 gal | 23’6’’ ft | 16’4’’ | 80° | 12566 lbs |
| F390SE.24 | 202524 lbs.ft | 78’10’’ ft | 51’5’’ ft | 430° | 49112 lbs.ft | 4206 psi | 16+16 gal/min | 66 gal | 23’6’’ ft | 16’4’’ | 80° | 14835 lbs |
Legend
Crane Height
Lifting capacity
Oil tank capacity
Rotational torque (lbs)
Rotational torque (mt)
Hydraulic boom extension
Mounting width
Crane Width
Maximum hydraulic outreach
Crane weight
Pump flow rate (gpm)
Pump flow rate (l/min)
Flow rate (gpm)
Pump flow rate (l/min)
Operating pressure (MPa)
Operating pressure (psi)
Rotation

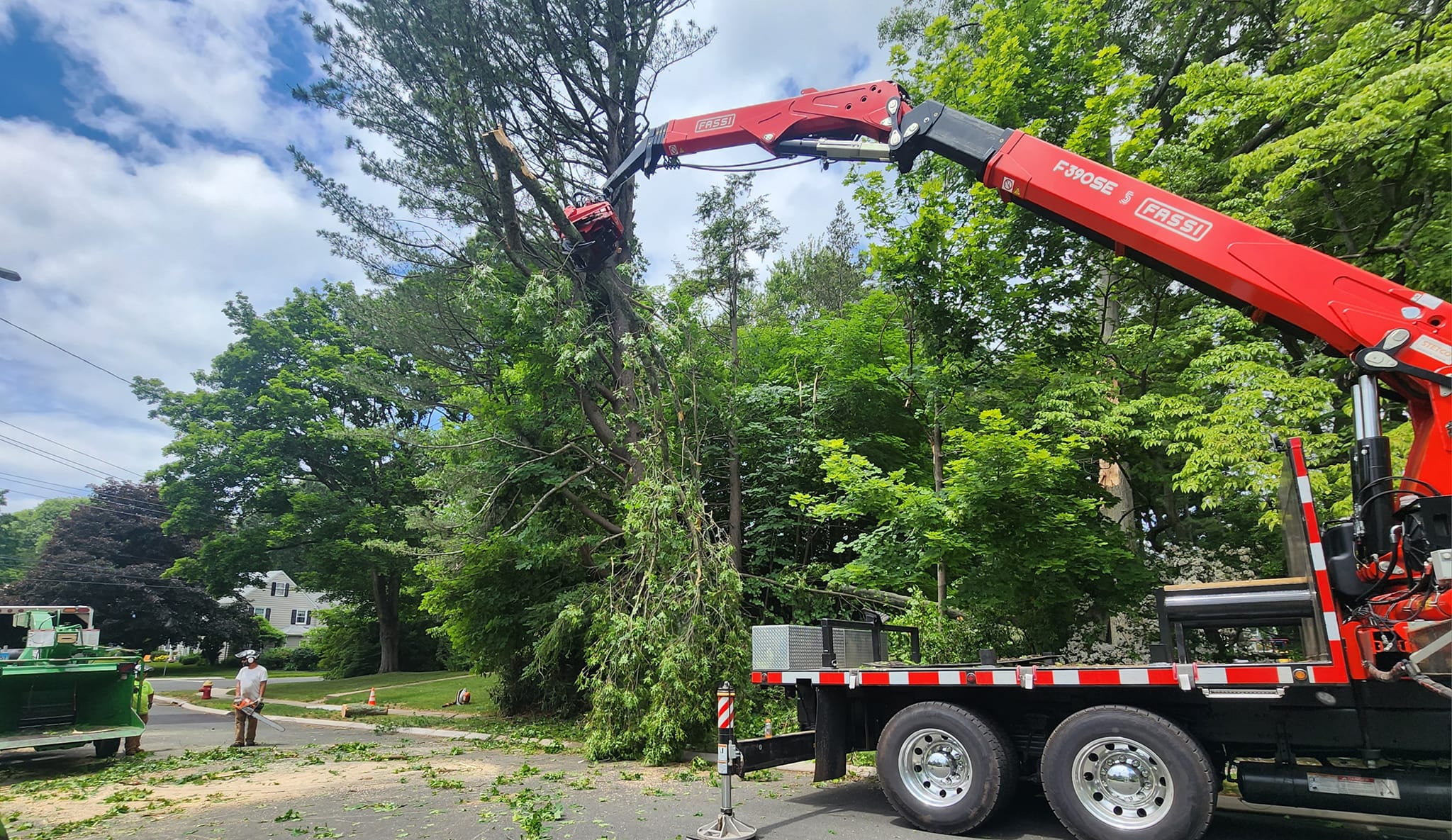

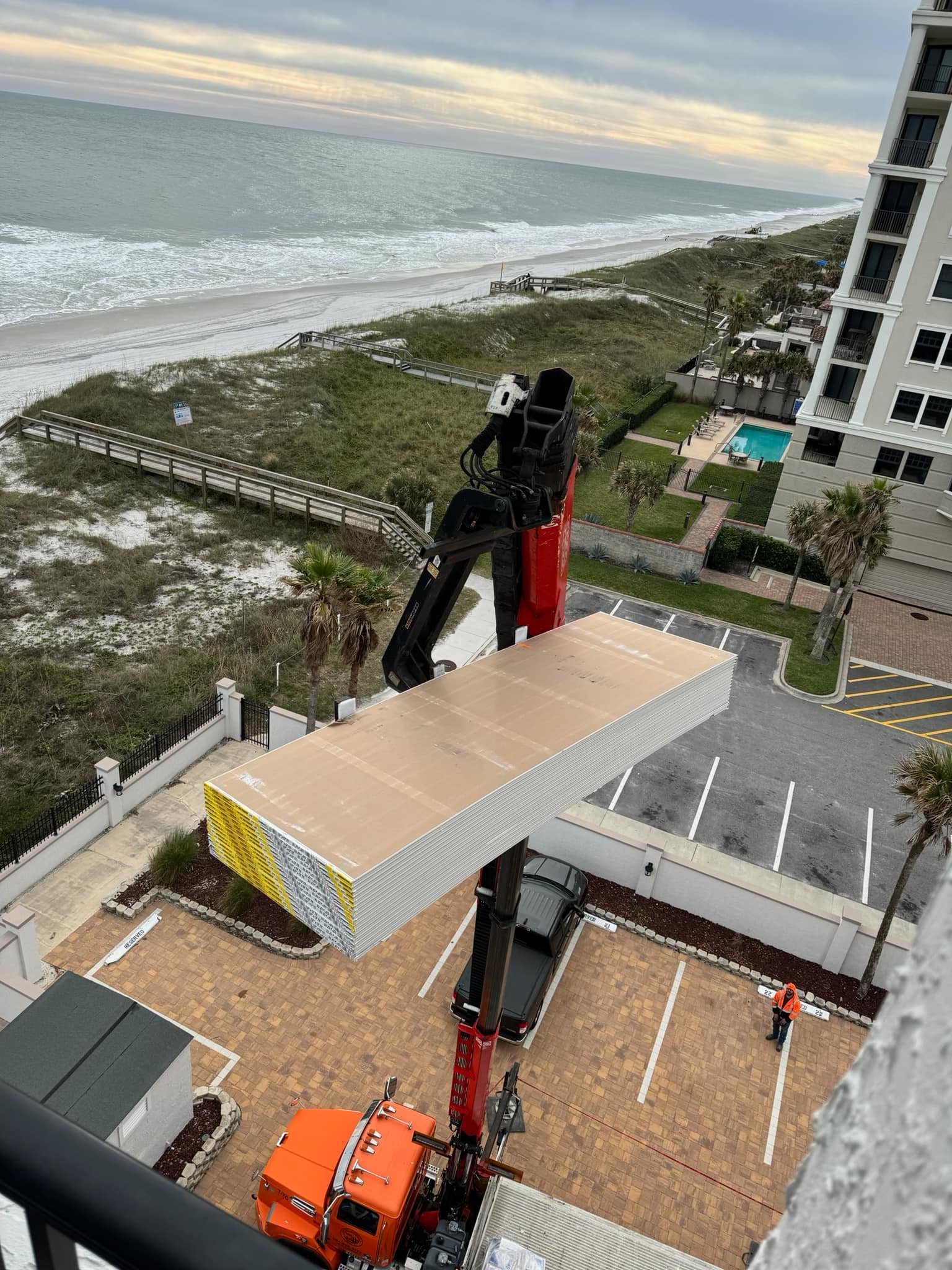

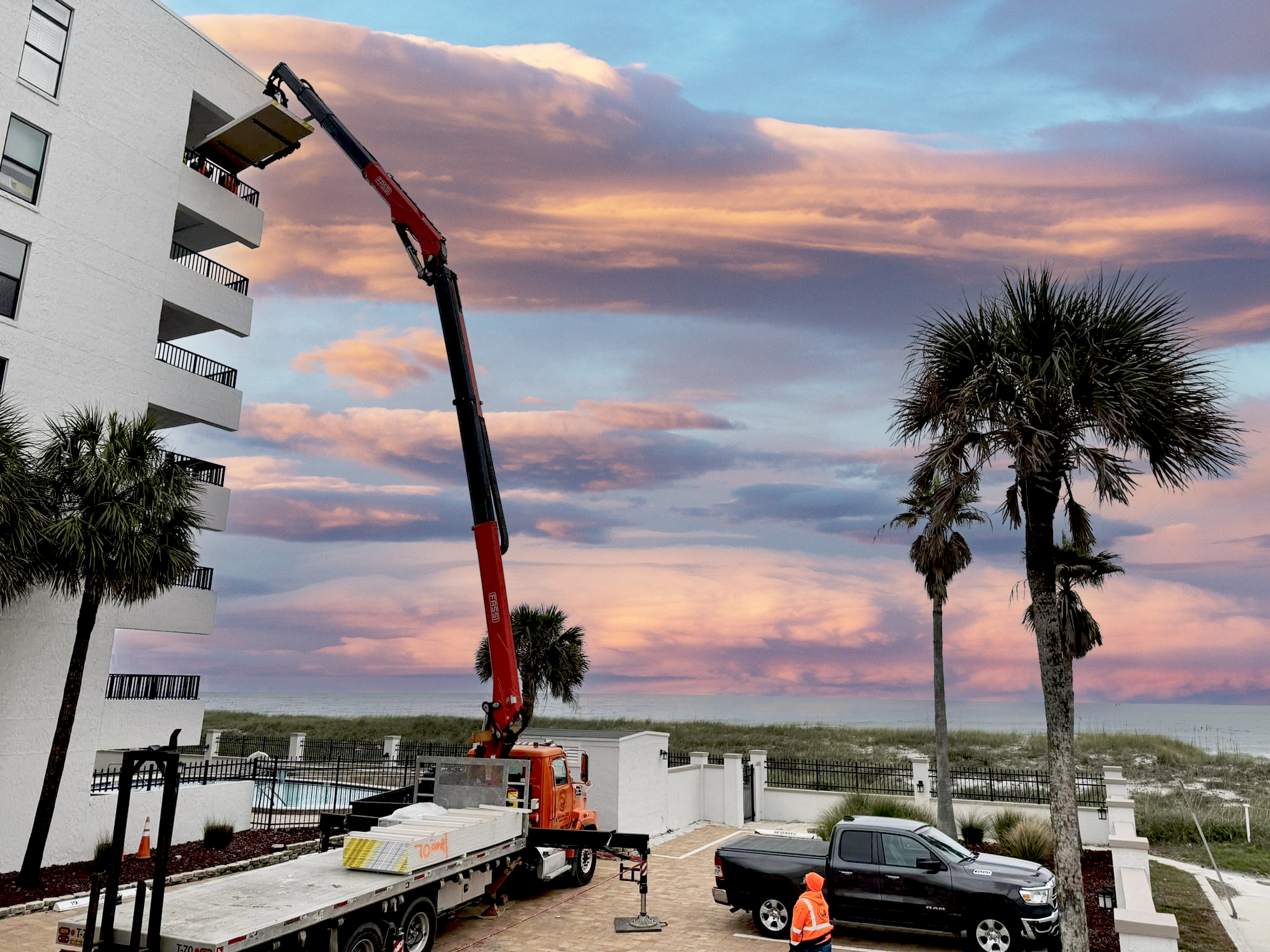

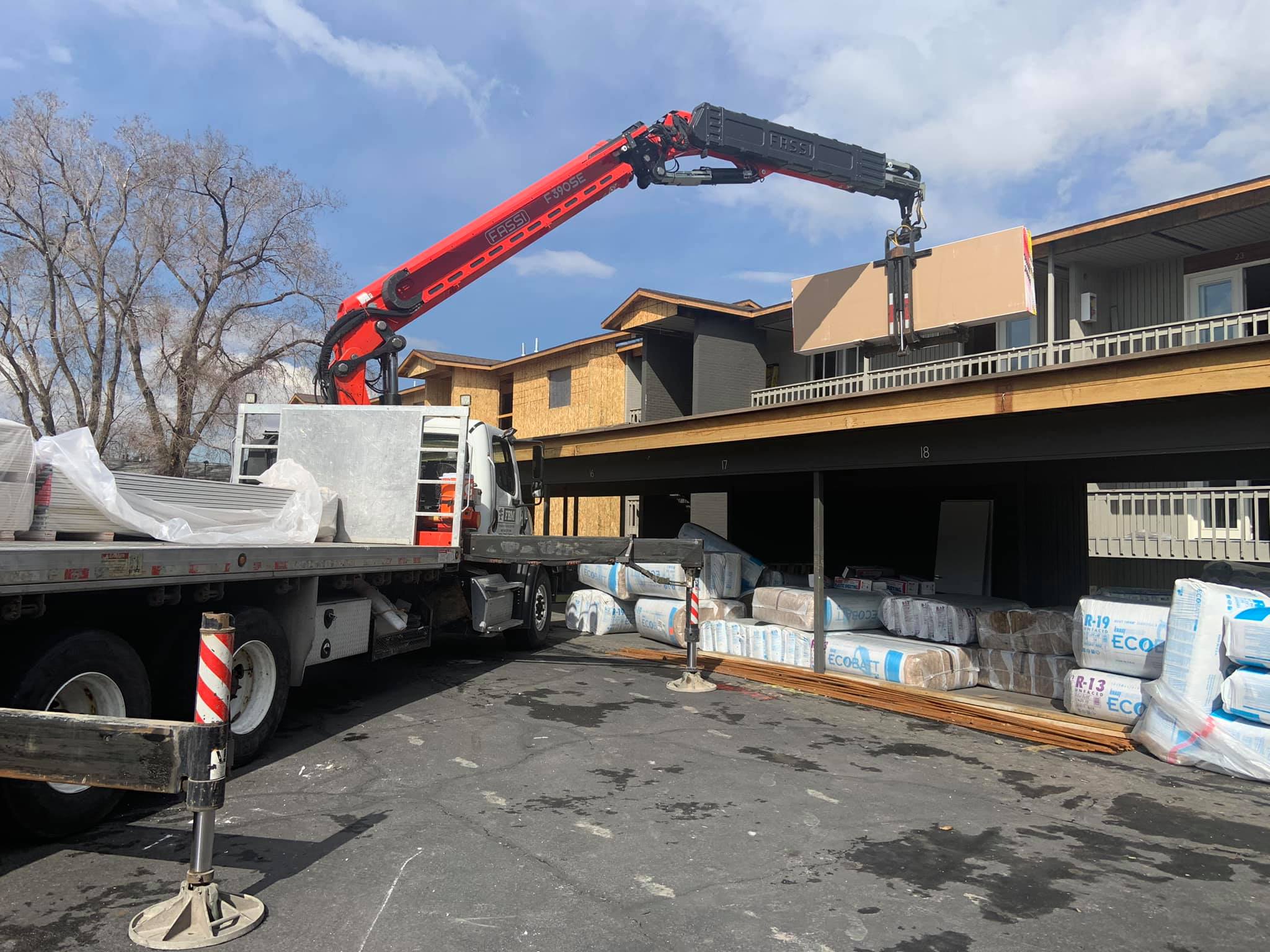

Gallery
