F385A.2

The Fassi F385A.2 is a crane from the medium-heavy-duty range designed to combine power, reliability and precision in a compact format. With a lifting capacity of up to 37.55 tm and a maximum outreach of 28.65 m with jib, it delivers high performance for applications demanding extension and stability.

The hydraulic system relies on the S900 digital distributor, which ensures smooth and optimised movement management. The dynamic configuration (.2) with linkage ensures operational versatility and improved working angles, while 430° rotation with rack and pinion increases efficiency and manoeuvrability even in the most complex environments.

Model specifications

kg/m	kNm	tm	m	m	°	kNm	MPa	l/min	l	kg	mm	mm	mm
F385A.2.22	368	37,55	8,00	3,80	430	47,5	31	60-80	190	4080	2515	1225	2430
F385A.2.23	353	35,98	10,00	5,80	430	47,5	31	60-80	190	4330	2515	1275	2430
F385A.2.24	347	35,37	12,15	7,80	430	47,5	31	60-80	190	4580	2515	1275	2430
F385A.2.25	338	34,45	14,45	10,00	430	47,5	31	60-80	190	4830	2515	1275	2430
F385A.2.26	333	33,94	16,55	12,00	430	47,5	31	60-80	190	5080	2515	1275	2430
F385A.2.27	327	33,33	18,85	14,10	430	47,5	31	60-80	190	5230	2515	1330	2430

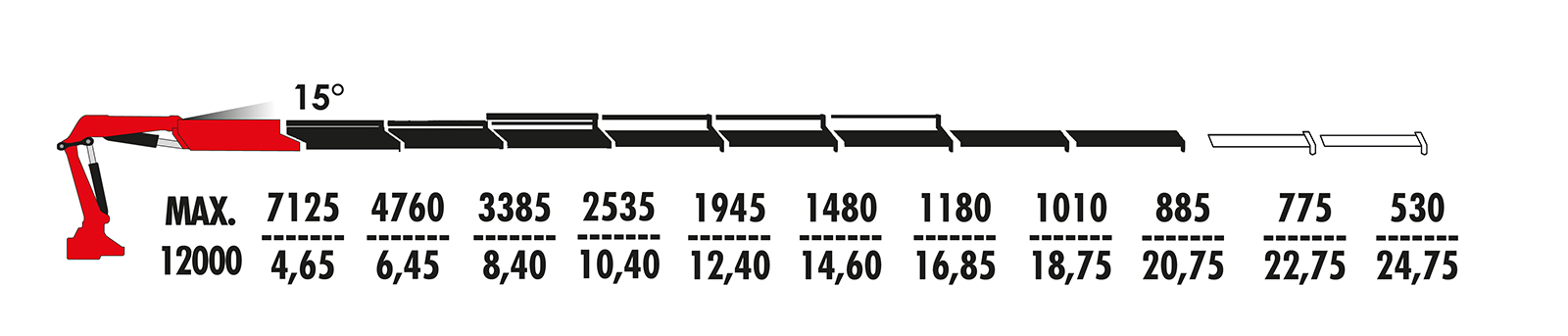

F385A.2.28	325	33,13	20,80	16,15	430	47,5	31	60-80	190	5380	2530	1330	2430
F385A.2.26/L214	333	33,94	26,75	19,50	430	47,5	31	60-80	190	5830	2540	1465	2660
F385AC.2.24	349	35,58	10,65	7,00	430	47,5	31	60-80	190	4490	2520	1275	2430
F385AC.2.25	345	35,17	12,80	9,20	430	47,5	31	60-80	190	4740	2520	1275	2430
F385AC.2.26	335	34,15	15,05	11,20	430	47,5	31	60-80	190	4990	2520	1275	2430
F385A.2.24/L323	347	35,37	19,95	12,60	430	47,5	31	60-80	190	5330	2545	1465	2610
F385A.2.24/L324	347	35,37	21,85	14,40	430	47,5	31	60-80	190	5430	2545	1465	2610
F385A.2.25/L323	338	34,45	22,15	14,80	430	47,5	31	60-80	190	5580	2545	1465	2610
F385A.2.25/L324	338	34,45	24,05	16,60	430	47,5	31	60-80	190	5680	2545	1465	2610
F385A.2.26/L212	333	33,94	22,70	15,55	430	47,5	31	60-80	190	5680	2540	1465	2660
F385A.2.26/L213	333	33,94	24,70	17,50	430	47,5	31	60-80	190	5760	2540	1465	2660
F385A.2.27/L153	327	33,33	26,60	19,40	430	47,5	31	60-80	190	5820	2550	1455	2655
F385A.2.27/L154	327	33,33	28,65	21,35	430	47,5	31	60-80	190	5890	2550	1455	2655
F385AC.2.24/L323	349	35,58	18,35	11,70	430	47,5	31	60-80	190	5240	2545	1465	2610
F385AC.2.24/L324	349	35,58	20,20	13,60	430	47,5	31	60-80	190	5340	2545	1465	2610
F385AC.2.25/L323	345	35,17	20,50	14,00	430	47,5	31	60-80	190	5490	2545	1465	2610
F385AC.2.25/L324	345	35,17	22,40	15,80	430	47,5	31	60-80	190	5590	2545	1465	2610

GB / The range of versions available also includes: - IT / La gamma delle versioni disponibili include anche: - FR / La gamme de versions disponibles inclut également: - DE / Der Bereich der Versionen erhältlich umfasst auch: - ES / La gama de versiones disponibles también incluye: - NL / Het bereik van versies beschikbaar omvat ook: F385AC.2.24, F385AC.2.25, F385AC.2.26, F385A.2.24 L323, F385A.2.24 L324, F385A.2.25 L323, F385A.2.25 L324, F385A.2.26 L212, F385A.2.26 L213, F385A.2.27 L153, F385A.2.27 L154, F385AC.2.24 L323, F385AC.2.24 L324, F385AC.2.25 L323, F385AC.2.25 L324

Legend

Crane Height

Lifting capacity

Oil tank capacity

Rotational torque (lbs)

Rotational torque (mt)

Hydraulic boom extension

Mounting width

Crane Width

Maximum hydraulic outreach

Crane weight

Pump flow rate (gpm)

Pump flow rate (l/min)

Flow rate (gpm)

Pump flow rate (l/min)

Operating pressure (MPa)

Operating pressure (psi)

Rotation

Strengths

XF – Extra Fast

A Fassi system that, through dedicated pilot operated check valves in conjunction with the multifunction distributor, allows smoothly, precisely and sensitively movements with less oil heating and higher speeds of operation.

MPES – Multi Power Extension System

A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.

UHSS – Ultra High Stregth Steel

Ultra high strength steel used for the construction of the Fassi structural components, with a high elastic limit, increases structural strength and resistance of the components and at the same time reduces the weight of the crane, to the benefit of the loading capacity of the vehicle which increases.

FWD – Fewer Welds Design

Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.

CQ – Cast Quality

Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components: less weldings, higher performance to fatigue cycles.

RPS – Rack and Pinion System

Exclusive Fassi rack and pinion rotation system with gravity self centering rack guide shoe; no need of external adjustment. Low friction anti-seizure techno-polymer rotation top bush for an extra strong rotation power.

S900 – Multifunction Distributor Bank

High performances multifunction compensated distributor bank with very high “load-sensing” proportional multifunction ability; all crane functions are perfectly controlled, proportional and smooth. Ideal for the application on heavy range cranes.

Optional

RRC – Radio Remote Control

Analogue radio remote control, which remotely controls the crane functions.
