F225SXP
F225SXP

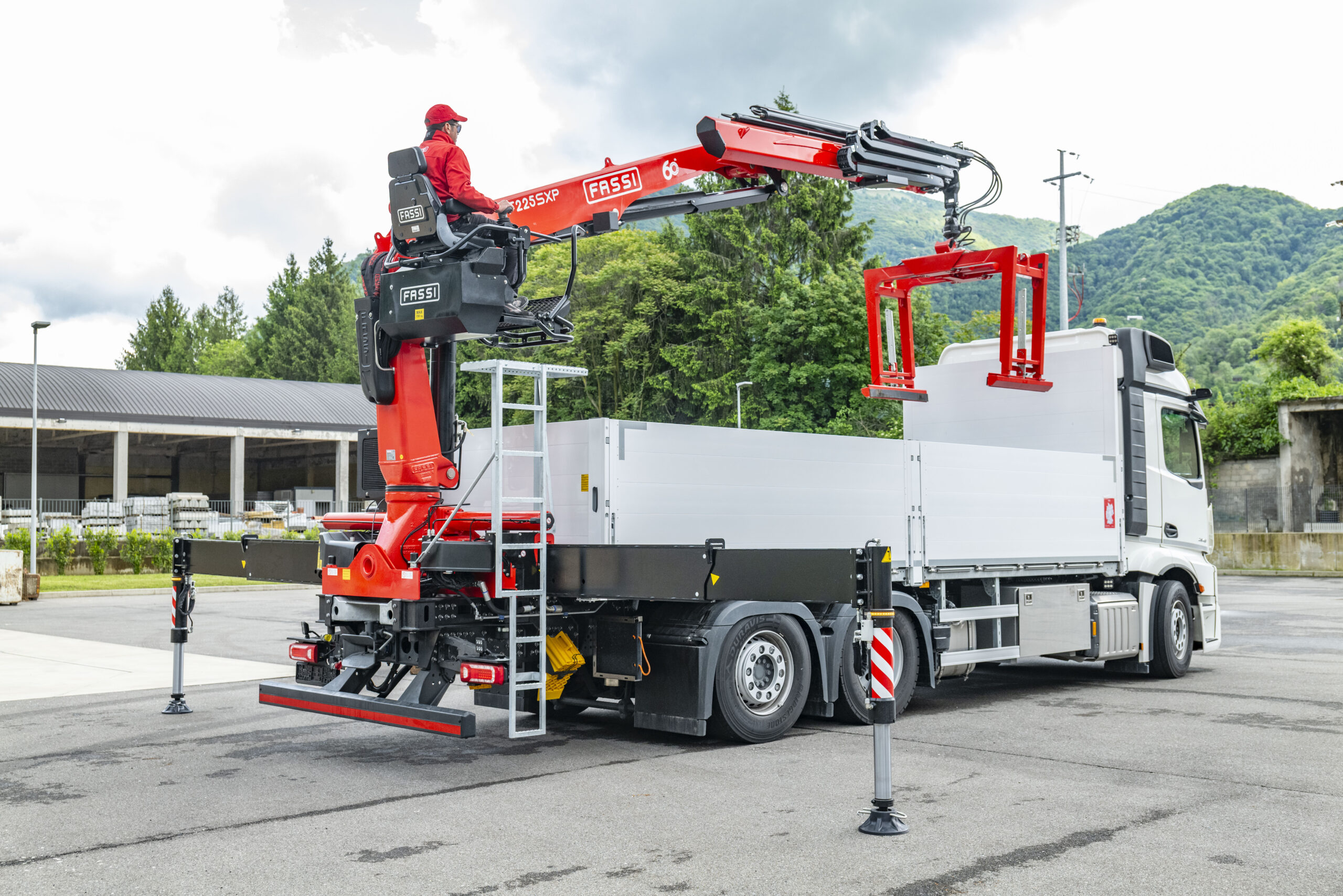

The F225SXP combines the S configuration with XP technology, offering more power, greater control and excellent performance when handling palletised materials and bulky loads.
With a lifting capacity of up to 21.7 tm and a maximum reach of 13.50 m, it is the ideal choice for building suppliers, specialised logistics and construction sites that require constant reliability.
The optimised hydraulic system and advanced control systems ensure precise and rapid manoeuvres at all times, even in complex conditions or on uneven terrain. The robust structure and wide rotation allow for agile operation in the typical working spaces of modern logistics and urban deliveries.
Model specifications
| Modello | tm | m | m | ° | kNm | MPa | l/min | oil (l) | kg |
|---|---|---|---|---|---|---|---|---|---|
| F225SXP.1.1 | 21,7 | 8,30 | 2,45 | 420 | 33,5 | 32,0 | 60+60 | 240 | 2540 |
| F225SXP.1.2 | 20,7 | 10,90 | 5,00 | 420 | 33,5 | 32,0 | 60+60 | 240 | 2730 |
| F225SXP.1.3 | 20,0 | 13,50 | 7,50 | 420 | 33,5 | 32,0 | 60+60 | 240 | 2900 |
Legend
Crane Height
Lifting capacity
Oil tank capacity
Rotational torque (lbs)
Rotational torque (mt)
Hydraulic boom extension
Mounting width
Crane Width
Maximum hydraulic outreach
Crane weight
Pump flow rate (gpm)
Pump flow rate (l/min)
Flow rate (gpm)
Pump flow rate (l/min)
Operating pressure (MPa)
Operating pressure (psi)
Rotation
Strengths
FX500 – Fassi Electronic Control
A system that electronically controls the load conditions of the crane, of the hydraulic and manual extensions and of the winch, manages the lifting moment with the possibility to activate different work sectors, in relation to the stability condition of the vehicle/crane unit. In addition, it transmits and records the working data.
FX500 – Fassi Electronic Control
A system that electronically controls the load conditions of the crane, of the hydraulic and manual extensions and of the winch, manages the lifting moment with the possibility to activate different work sectors, in relation to the stability condition of the vehicle/crane unit. In addition, it transmits and records the working data.
Download area

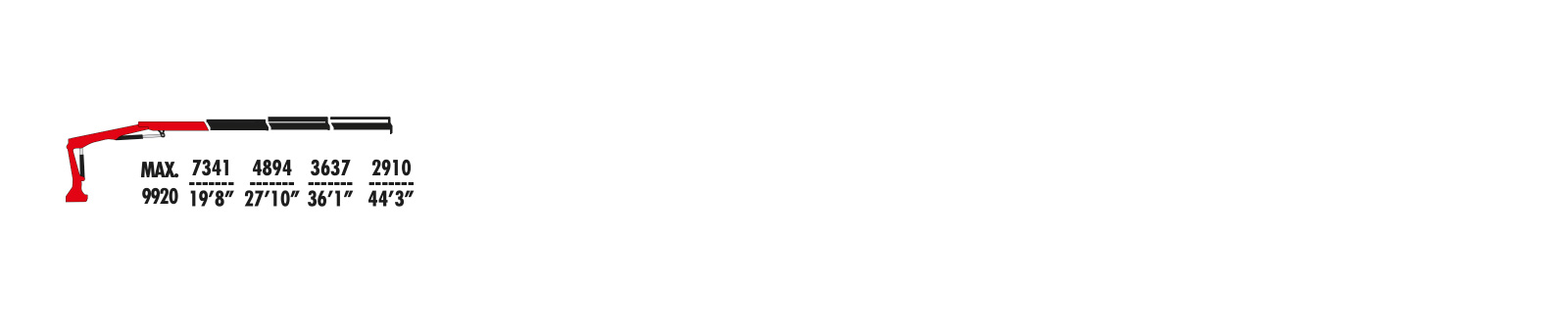

Maximum hydraulic reach
