The Fassi F195A active combines compactness and performance, offering an ideal solution for those seeking a simple construction and operational reliability. With a lifting capacity of up to 18.6 tm and a maximum hydraulic outreach of 20.70 metres with jib, it delivers versatility in everyday applications.
The crane is equipped with the FX500 control unit and S800 hydraulic distributor, which ensure smooth and safe management of manoeuvres.
The active version (.0), without linkage, features a clean and functional structure, ideal for those looking for a reliable, intuitive and low-maintenance machine. 400° rotation with rack and pinion further enhances the machine, offering an extensive range of movement.
Model specifications
| kg/m | kNm | tm | m | m | ° | kNm | MPa | l/min | l | kg | mm | mm | mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F195A.0.21* | 183 | 18,65 | 6,30 | 1,80 | 400 | 30,8 | 28 | 45 | 120 | 2005 | 2445 | 870 | 2255 |
| F195A.0.22* | 170 | 17,33 | 8,30 | 3,75 | 400 | 30,8 | 28 | 45 | 120 | 2180 | 2445 | 870 | 2255 |
| F195A.0.23* | 165 | 16,82 | 10,40 | 5,75 | 400 | 30,8 | 28 | 45 | 120 | 2355 | 2445 | 870 | 2255 |
| F195A.0.24* | 162 | 16,51 | 12,55 | 7,85 | 400 | 30,8 | 28 | 45 | 120 | 2505 | 2465 | 870 | 2255 |
| F195A.0.25* | 158 | 16,11 | 14,65 | 9,85 | 400 | 30,8 | 28 | 45 | 120 | 2625 | 2480 | 985 | 2255 |
| F195AC.0.22 | 173 | 17,64 | 6,70 | 2,90 | 400 | 30,8 | 28 | 45 | 120 | 2110 | 2445 | 870 | 2255 |
| F195AC.0.23 | 168 | 17,13 | 8,80 | 4,90 | 400 | 30,8 | 28 | 45 | 120 | 2290 | 2445 | 870 | 2255 |
| F195AC.0.24* | 164 | 16,72 | 10,95 | 7,00 | 400 | 30,8 | 28 | 45 | 120 | 2435 | 2465 | 870 | 2255 |
| F195A.0.22/L212 | 170 | 17,33 | 14,60 | 7,30 | 400 | 30,8 | 28 | 45 | 120 | 2705 | 2500 | 1070 | 2400 |
| F195A.0.23/L212 | 165 | 16,82 | 16,60 | 9,25 | 400 | 30,8 | 28 | 45 | 120 | 2890 | 2500 | 1070 | 2400 |
| F195A.0.23/L213* | 165 | 16,82 | 18,60 | 11,20 | 400 | 30,8 | 28 | 45 | 120 | 2975 | 2500 | 1070 | 2400 |
| F195A.0.24/L212 | 162 | 16,51 | 18,75 | 11,35 | 400 | 30,8 | 28 | 45 | 120 | 3040 | 2500 | 1070 | 2400 |
| F195A.0.24/L213* | 95 | 16,51 | 20,70 | 13,30 | 400 | 30,8 | 28 | 45 | 120 | 3125 | 2500 | 1070 | 2400 |
| F195AC.0.23/L212 | 168 | 17,13 | 15,00 | 8,40 | 400 | 30,8 | 28 | 45 | 120 | 2820 | 2500 | 1070 | 2400 |
| F195AC.0.23/L213 | 168 | 17,13 | 17,00 | 10,35 | 400 | 30,8 | 28 | 45 | 120 | 2905 | 2500 | 1070 | 2400 |
| lbs/ft | lbs.ft | ft | ft | ° | lbs.ft | psi | gpm | gal | lbs | ft | ft | ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F195A.0.21 | 134895 | 20’8″ | 5’10” | 400 | 22723 | 4060 | 12 | 32 | 4420 | 8’0″ | 2’10” | 7’4″ |
| F195A.0.22 | 125348 | 27’2″ | 12’3″ | 400 | 22723 | 4060 | 12 | 32 | 4806 | 8’0″ | 2’10” | 7’4″ |
| F195A.0.23 | 121659 | 34’1″ | 18’10” | 400 | 22723 | 4060 | 12 | 32 | 5191 | 8’0″ | 2’10” | 7’4″ |
| F195A.0.24 | 119417 | 41’2″ | 25’9″ | 400 | 22723 | 4060 | 12 | 32 | 5522 | 8’1″ | 2’10” | 7’4″ |
| F195A.0.25 | 116524 | 48’0″ | 32’3″ | 400 | 22723 | 4060 | 12 | 32 | 5787 | 8’1″ | 3’2″ | 7’4″ |
| F195AC.0.22* | 127590 | 21’11” | 9’6″ | 400 | 22723 | 4060 | 12 | 32 | 4651 | 8’0″ | 2’10” | 7’4″ |
| F195AC.0.23* | 123901 | 28’10” | 16’0″ | 400 | 22723 | 4060 | 12 | 32 | 5048 | 8’0″ | 2’10” | 7’4″ |
| F195AC.0.24 | 120936 | 35’11” | 22’11” | 400 | 22723 | 4060 | 12 | 32 | 5368 | 8’1″ | 2’10” | 7’4″ |
| F195AC.0.25* | 119417 | 42’7″ | 29’6″ | 400 | 22723 | 4060 | 12 | 32 | 5643 | 8’1″ | 3’2″ | 7’4″ |
| F195A.0.22/L212* | 125348 | 47’10” | 23’11” | 400 | 22723 | 4060 | 12 | 32 | 5963 | 8’2″ | 3’6″ | 7’10” |
| F195A.0.23/L212* | 121659 | 54’5″ | 30’4″ | 400 | 22723 | 4060 | 12 | 32 | 6371 | 8’2″ | 3’6″ | 7’10” |
| F195A.0.23/L213 | 121659 | 61’0″ | 36’8″ | 400 | 22723 | 4060 | 12 | 32 | 6558 | 8’2″ | 3’6″ | 7’10” |
| F195A.0.24/L212* | 119417 | 61’6″ | 37’2″ | 400 | 22723 | 4060 | 12 | 32 | 6701 | 8’2″ | 3’6″ | 7’10” |
| F195A.0.24/L213 | 119417 | 67’10” | 43’7″ | 400 | 22723 | 4060 | 12 | 32 | 6889 | 8’2″ | 3’6″ | 7’10” |
| F195AC.0.23/L212 | 123901 | 49’2″ | 27’6″ | 400 | 22723 | 4060 | 12 | 32 | 6216 | 8’2″ | 3’6″ | 7’10” |
| F195AC.0.23/L213 | 123901 | 55’9″ | 33’11” | 400 | 22723 | 4060 | 12 | 32 | 6404 | 8’2″ | 3’6″ | 7’10” |
Strengths
FX500 – Fassi Electronic Control
A system that electronically controls the load conditions of the crane, of the hydraulic and manual extensions and of the winch, manages the lifting moment with the possibility to activate different work sectors, in relation to the stability condition of the vehicle/crane unit. In addition, it transmits and records the working data.
FSC – Fassi Stability Control
CPM – Crane Position Monitoring
A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.
MPES – Multi Power Extension System
A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.
UHSS – Ultra High Stregth Steel
FWD – Fewer Welds Design
Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.
CQ – Cast Quality
Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components: less weldings, higher performance to fatigue cycles.
RPS – Rack and Pinion System
Exclusive Fassi rack and pinion rotation system with gravity self centering rack guide shoe; no need of external adjustment. Low friction anti-seizure techno-polymer rotation top bush for an extra strong rotation power.
S800 – Multifunction Distributor Bank
Multifunction distributor bank ideal for the application on small-medium range cranes, with specific spools set up in relation with the characteristics of the crane functions.
FX500 – Fassi Electronic Control
A system that electronically controls the load conditions of the crane, of the hydraulic and manual extensions and of the winch, manages the lifting moment with the possibility to activate different work sectors, in relation to the stability condition of the vehicle/crane unit. In addition, it transmits and records the working data.
FSC – Fassi Stability Control
CPM – Crane Position Monitoring
A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.
MPES – Multi Power Extension System
A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.
UHSS – Ultra High Stregth Steel
FWD – Fewer Welds Design
Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.
CQ – Cast Quality
Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components: less weldings, higher performance to fatigue cycles.
RPS – Rack and Pinion System
Exclusive Fassi rack and pinion rotation system with gravity self centering rack guide shoe; no need of external adjustment. Low friction anti-seizure techno-polymer rotation top bush for an extra strong rotation power.
S800 – Multifunction Distributor Bank
Multifunction distributor bank ideal for the application on small-medium range cranes, with specific spools set up in relation with the characteristics of the crane functions.
Optional
XF – Extra Fast
D900 – Digital Multifunction Distributor Bank
ME – Manual Extension
OTC – Oil Temperature Control
Temperature control device electronically controlled, thanks to the analogic temperature sensor fitted inside the oil cooler, is capable of maintaining an optimal temperature of the hydraulic system even in the most stressful condition of use. The temperature value is shown on the user control panel and radio control handle display.
GAS – Grab Automatic Shake
Automatic and adjustable shake system which enables the gradual emptying of the grab by operating through radio remote control. This gradual operation is fulfilled even at high speeds thanks to the automatic control of the grab opening and closing. Moreover, the system efficacy is guaranteed also in case of multiple manoeuvres and it is not affected by Flow Sharing or dynamics.
FL – Full Lift
A system that allows you to select, based on operational needs, “FAST” (recycling valve activated) or “POWER” (recycling valve deactivated) while telescoping the booms. Selection is both via radio control thanks to the icon on the display or on the push button of the main control panel.
OHT – Outrigger Hydraulic Tilt
System which enables the tilt of hydraulically tiltable outriggers through hydraulic servomotor or servoram. Operating the specific tap, oil flow is diverted from the outrigger to the actuator and the ram manoeuvre is easily controlled by the operator, without the need to apply any force.
S900 – Multifunction Distributor Bank
High performances multifunction compensated distributor bank with very high “load-sensing” proportional multifunction ability; all crane functions are perfectly controlled, proportional and smooth. Ideal for the application on heavy range cranes.
Gallery
Download area

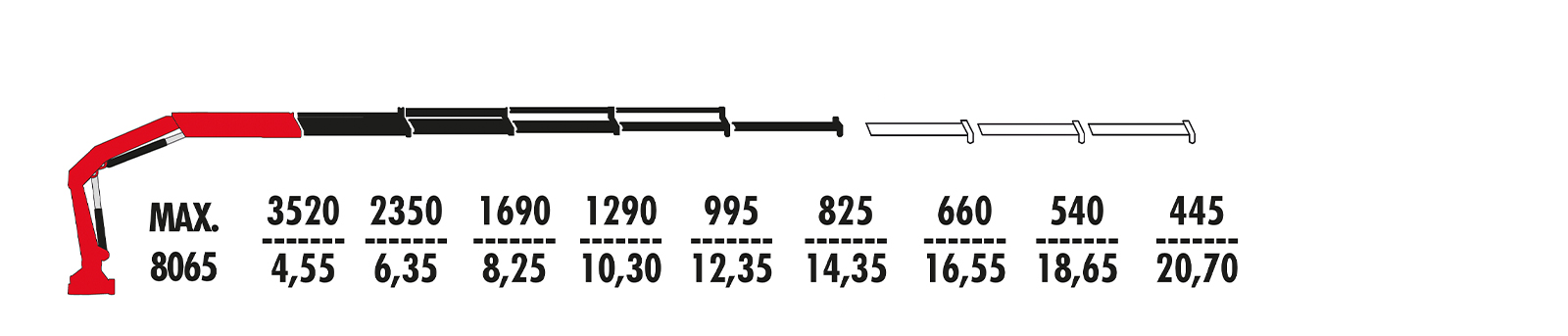

Maximum hydraulic reach
