F335A.2
F335A.2
The F335A.2 is a crane from the Fassi range designed to offer an ideal combination of capacity and versatility. With a capacity of up to 31.7 tm and a maximum outreach of 26.70 m with jib, it guarantees high performance for a wide range of applications.
Equipped with the S900 digital hydraulic distributor, it ensures smooth and precise movement. The dynamic version (.2) with linkage further increases operational efficiency, while 400° rotation with rack and pinion guarantees reliability and manoeuvrability.
Model specifications
| Modello | kNm | tm | m | m | ° | kNm | MPa | l/min | l | kg | mm | mm | mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F335A.2.22 | 311 | 31,70 | 8,15 | 3,80 | 400 | 47,50 | 31 | 60 – 80 | 190 | 3300 | 2510 | 1055 | 2460 |
| F335A.2.23 | 304 | 30,99 | 10,20 | 5,80 | 400 | 47,50 | 31 | 60 – 80 | 190 | 3470 | 2510 | 1110 | 2460 |
| F335A.2.24 | 299 | 30,48 | 12,30 | 7,80 | 400 | 47,50 | 31 | 60 – 80 | 190 | 3725 | 2510 | 1110 | 2460 |
| F335A.2.25 | 294 | 29,97 | 14,60 | 10,00 | 400 | 47,50 | 31 | 60 – 80 | 190 | 3945 | 2510 | 1110 | 2460 |
| F335A.2.26 | 286 | 29,15 | 16,70 | 12,00 | 400 | 47,50 | 31 | 60 – 80 | 190 | 4130 | 2510 | 1110 | 2460 |
| F335A.2.27 | 281 | 28,64 | 18,85 | 14,10 | 400 | 47,50 | 31 | 60 – 80 | 190 | 4380 | 2510 | 1175 | 2460 |

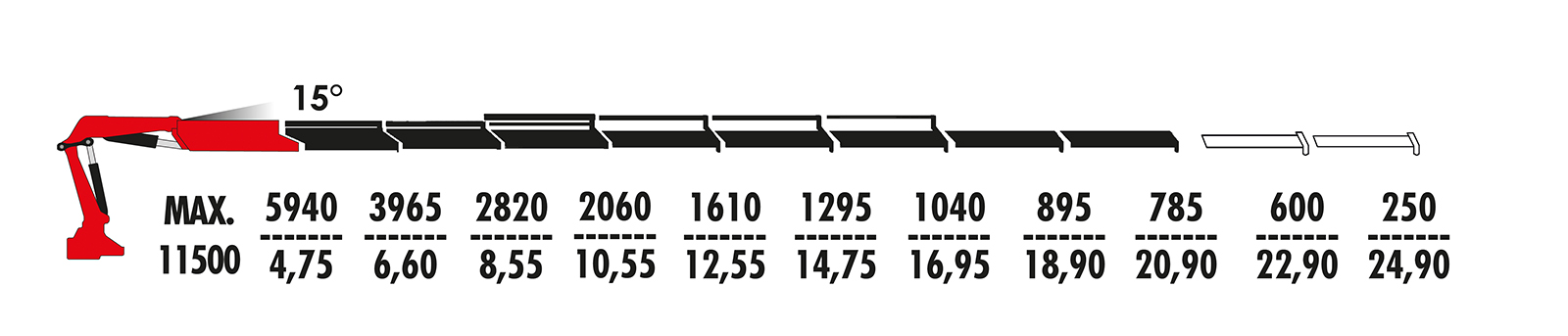

| F335A.2.28 | 277 | 28,24 | 20,90 | 16,15 | 400 | 47,50 | 31 | 60 – 80 | 190 | 4431 | 2535 | 1175 | 2460 |
| F335A.2.26/L214 | 286 | 29,15 | 26,70 | 19,30 | 400 | 47,50 | 31 | 60 – 80 | 190 | 5000 | 2535 | 1285 | 2755 |
| F335AC.2.24 | 300 | 30,58 | 10,65 | 7,00 | 400 | 47,50 | 31 | 60 – 80 | 190 | 3710 | 2510 | 1110 | 2460 |
| F335AC.2.26 | 295 | 30,07 | 15,05 | 11,20 | 400 | 47,50 | 31 | 60 – 80 | 190 | 4110 | 2510 | 1110 | 2460 |
| F335A.2.24/L323 | 299 | 30,48 | 20,05 | 12,60 | 400 | 47,50 | 31 | 60 – 80 | 190 | 4700 | 2535 | 1285 | 2720 |
| F335A.2.24/L324 | 299 | 30,48 | 22,00 | 14,40 | 400 | 47,50 | 31 | 60 – 80 | 190 | 4800 | 2535 | 1285 | 2720 |
| F335A.2.25/L323 | 294 | 29,97 | 22,25 | 14,80 | 400 | 47,50 | 31 | 60 – 80 | 190 | 4900 | 2535 | 1285 | 2720 |
| F335A.2.25/L324 | 294 | 29,97 | 24,15 | 16,60 | 400 | 47,50 | 31 | 60 – 80 | 190 | 5000 | 2535 | 1285 | 2720 |
| F335A.2.26/L212 | 286 | 29,15 | 22,80 | 15,55 | 400 | 47,50 | 31 | 60 – 80 | 190 | 4850 | 2535 | 1285 | 2755 |
| F335A.2.26/L213 | 286 | 29,15 | 24,80 | 17,50 | 400 | 47,50 | 31 | 60 – 80 | 190 | 4930 | 2535 | 1285 | 2755 |
| F335AC.2.24/L323 | 300 | 30,58 | 18,45 | 11,80 | 400 | 47,50 | 31 | 60 – 80 | 190 | 4465 | 2535 | 1285 | 2720 |
| F335AC.2.24/L324 | 300 | 30,58 | 20,35 | 13,60 | 400 | 47,50 | 31 | 60 – 80 | 190 | 4565 | 2535 | 1285 | 2720 |
Legend
Crane Height
Lifting capacity
Oil tank capacity
Rotational torque (lbs)
Rotational torque (mt)
Hydraulic boom extension
Mounting width
Crane Width
Maximum hydraulic outreach
Crane weight
Pump flow rate (gpm)
Pump flow rate (l/min)
Flow rate (gpm)
Pump flow rate (l/min)
Operating pressure (MPa)
Operating pressure (psi)
Rotation
Strengths
XF – Extra Fast
MPES – Multi Power Extension System
A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.
UHSS – Ultra High Stregth Steel
FWD – Fewer Welds Design
Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.
CQ – Cast Quality
Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components: less weldings, higher performance to fatigue cycles.
RPS – Rack and Pinion System
Exclusive Fassi rack and pinion rotation system with gravity self centering rack guide shoe; no need of external adjustment. Low friction anti-seizure techno-polymer rotation top bush for an extra strong rotation power.
S900 – Multifunction Distributor Bank
High performances multifunction compensated distributor bank with very high “load-sensing” proportional multifunction ability; all crane functions are perfectly controlled, proportional and smooth. Ideal for the application on heavy range cranes.
XF – Extra Fast
MPES – Multi Power Extension System
A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.
UHSS – Ultra High Stregth Steel
FWD – Fewer Welds Design
Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.
CQ – Cast Quality
Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components: less weldings, higher performance to fatigue cycles.
RPS – Rack and Pinion System
Exclusive Fassi rack and pinion rotation system with gravity self centering rack guide shoe; no need of external adjustment. Low friction anti-seizure techno-polymer rotation top bush for an extra strong rotation power.
S900 – Multifunction Distributor Bank
High performances multifunction compensated distributor bank with very high “load-sensing” proportional multifunction ability; all crane functions are perfectly controlled, proportional and smooth. Ideal for the application on heavy range cranes.
