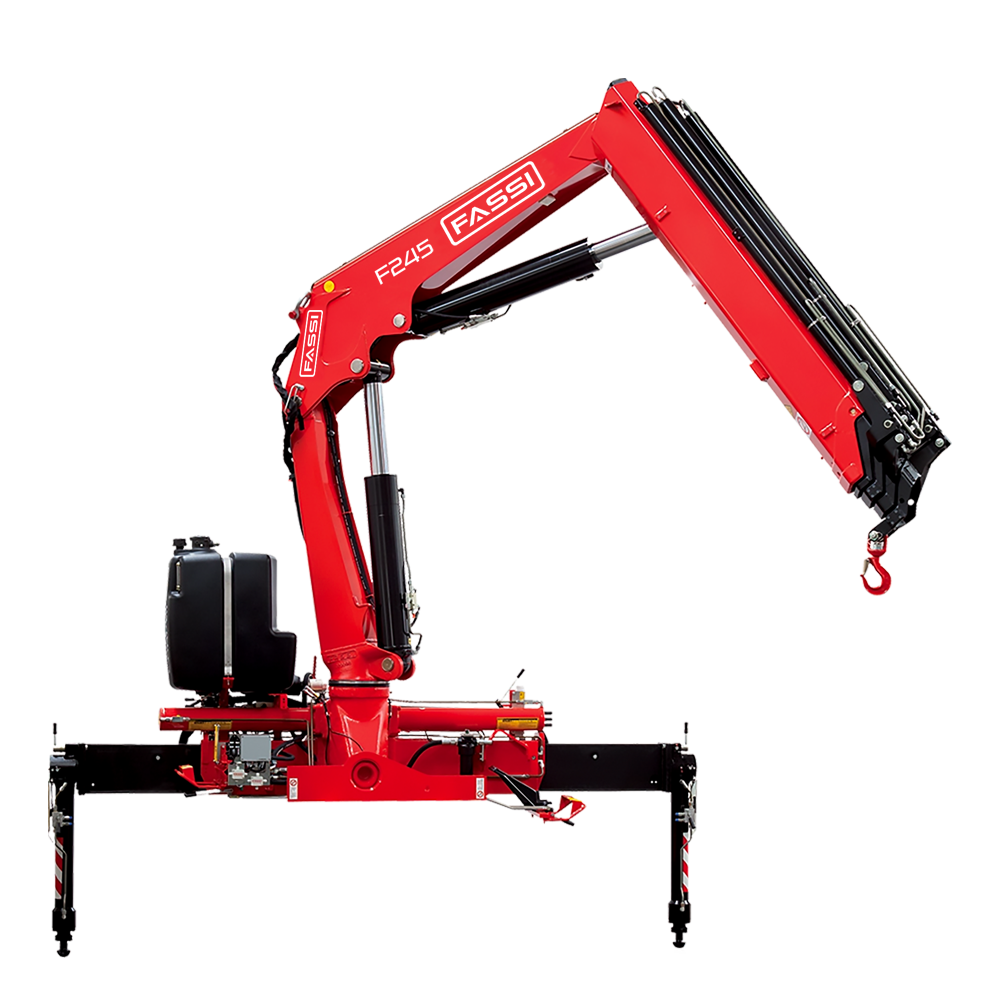

F245A e-active

The F245A e-active is a compact and versatile crane, with a lifting capacity of up to 23.6 tm and a maximum hydraulic outreach of 22.60 m with jib. Equipped with the FX500 control unit, the D850 digital distributor, RCH/RCS radio controller and flow-sharing system, it guarantees operational simplicity and precision.

The Active version, without linkage, offers 420° rotation with rack and pinion, guaranteeing reliability and efficiency whatever the application.

Model specifications

Modello	kNm	tm	m	m	°	kNm	MPa	l/min	l	kg	mm	mm	mm
F245A.0.22*	231	23,55	8,40	3,80	420	37,1	30,5	45-65	190	2400	2530	1065	2350
F245A.0.23*	229	23,34	10,45	5,80	420	37,1	30,5	45-65	190	2560	2530	1065	2350
F245A.0.24*	221	22,53	12,55	7,85	420	37,1	30,5	45-65	190	2720	2530	1065	2350
F245A.0.25*	218	22,22	14,70	9,90	420	37,1	30,5	45-65	190	2860	2530	1065	2350
F245A.0.26*	217	22,12	16,80	11,90	420	37,1	30,5	45-65	190	2970	2550	1065	2350
F245AC.0.23	230	23,45	9,15	5,25	420	37,1	30,5	45-65	190	2510	2530	1065	2350
F245AC.0.24*	224	22,83	11,25	7,30	420	37,1	30,5	45-65	190	2670	2530	1065	2350
F245AC.0.25	222	22,63	13,40	9,30	420	37,1	30,5	45-65	190	2810	2530	1065	2350
F245AC.0.26	218	22,22	15,50	11,35	420	37,1	30,5	45-65	190	2920	2550	1065	2350
F245A.0.23/L212	229	23,34	16,60	9,30	420	37,1	30,5	45-65	190	3200	2530	1235	2350
F245A.0.23/L213	229	23,34	18,60	11,25	420	37,1	30,5	45-65	190	3280	2530	1235	2350
F245A.0.23/L214	229	23,34	20,50	13,05	420	37,1	30,5	45-65	190	3350	2530	1235	2350
F245A.0.24/L212	221	22,53	18,70	11,35	420	37,1	30,5	45-65	190	3360	2530	1235	2350
F245A.0.24/L213	221	22,53	20,70	13,30	420	37,1	30,5	45-65	190	3440	2530	1235	2350
F245A.0.24/L214*	221	22,53	22,60	15,10	420	37,1	30,5	45-65	190	3510	2530	1235	2350
F245A.0.25/L102*	218	22,22	21,10	13,50	420	37,1	30,5	45-65	190	3325	2530	1235	2350
F245AC.0.24/L214	224	22,83	21,30	14,55	420	37,1	30,5	45-65	190	3460	2530	1235	2350

Modello	lbs.ft	ft	ft	°	lbs.ft	psi	gpm	gal	lbs	ft	ft	ft
F245A.0.22	170337	27’6”	12’5”	420	27371	4430	12-17	50	5291	8’3”	3’5”	7’8”
F245A.0.23	168818	34’3”	19’0”	420	27371	4430	12-17	50	5643	8’3”	3’5”	7’8”
F245A.0.24	162595	41’2”	25’9”	420	27371	4430	12-17	50	5996	8’3”	3’5”	7’8”
F245A.0.25	160717	48’2”	32’5”	420	27371	4430	12-17	50	6305	8’4”	3’5”	7’8”
F245A.0.26	159994	55’1”	39’0”	420	27371	4430	12-17	50	6547	8’4”	3’5”	7’8”
F245AC.0.23*	169614	30’0”	17’2”	420	27371	4430	12-17	50	5533	8’3”	3’5”	7’8”
F245AC.0.24	165129	36’10”	23’11”	420	27371	4430	12-17	50	5886	8’3”	3’5”	7’8”
F245AC.0.25*	163683	43’11”	30’6”	420	27371	4430	12-17	50	6194	8’3”	3’5”	7’8”
F245AC.0.26*	160717	50’10”	37’2”	420	27371	4430	12-17	50	6437	8’3”	3’5”	7’8”
F245A.0.23/L212*	168818	54’5”	30’6”	420	27371	4430	12-17	50	7054	8’3”	3’5”	7’8”
F245A.0.23/L213*	168818	61’0”	36’10”	420	27371	4430	12-17	50	7231	8’3”	4’0”	7’8”
F245A.0.23/L214*	162959	67’3”	42’9”	420	27371	4430	12-17	50	3350	8’3”	4’0”	7’8”
F245A.0.24/L212*	162959	61’4”	37’2”	420	27371	4430	12-17	50	7407	8’3”	3’5”	7’8”
F245A.0.24/L213*	162959	67’10”	43’7”	420	27371	4430	12-17	50	7583	8’3”	3’5”	7’8”
F245A.0.24/L214	162959	74’1”	49’6”	420	27371	4430	12-17	50	7738	8’3”	4’0”	7’8”
F245A.0.25/L102	160717	69’2”	44’3”	420	27371	4430	12-17	50	3325	8’3”	4’0”	7’8”
F245AC.0.24/L214*	165129	69’10”	47’8”	420	27371	4430	45-65	50	7627	8’3”	4’0”	7’8”

lbs/ft	lbs.ft	ft	ft	°	lbs.ft	psi	gpm	gal	lbs	ft	ft	ft
F245A.2.22	168818	26’8″	12’5″	420	27371	4430	12-17	50	6062	8’3″	3’5″	7’10”
F245A.2.23	165129	33’5″	19’0″	420	27371	4430	12-17	50	6536	8’3″	3’7″	7’10”
F245A.2.24	161440	40’4″	25’5″	420	27371	4430	12-17	50	6999	8’3″	3’7″	7’10”
F245A.2.25	156305	47’8″	32’9″	420	27371	4430	12-17	50	7385	8’3″	3’7″	7’10”
F245A.2.26	152616	55’3″	40’0″	420	27371	4430	12-17	50	7749	8’3″	3’7″	7’10”
F245A.2.28	145239	68’6″	52’11”	420	27371	4430	12-17	50	8322	8’4″	3’9″	7’10”
F245AC.2.23*	168095	28’2″	16’4″	420	27371	4430	12-17	50	6349	8’3″	3’7″	7’10”
F245AC.2.24	165925	34’11”	22’9″	420	27371	4430	12-17	50	6812	8’3″	3’7″	7’10”
F245AC.2.25*	160717	42’5″	30’2″	420	27371	4430	12-17	50	7198	8’3″	3’7″	7’10”
F245AC.2.26*	159271	50’0″	37’4″	420	27371	4430	12-17	50	7561	8’3″	3’7″	7’10”
F245A.2.23/L212*	165129	53’7″	30’6″	420	27371	4430	12-17	50	7716	8’3″	4’2″	8’5″
F245A.2.23/L213*	165129	60’2″	36’10”	420	27371	4430	12-17	50	7903	8’3″	4’2″	8’5″
F245A.2.24/L213*	161440	66’11”	43’5″	420	27371	4430	12-17	50	8267	8’3″	4’2″	8’7″
F245A.2.24/L214*	161440	73’1″	49’4″	420	27371	4430	12-17	50	8421	8’3″	4’2″	8’7″
F245A.2.25/L212*	156305	67’10”	44’3″	420	27371	4430	12-17	50	8487	8’3″	4’2″	8’8″
F245A.2.25/L213	156305	74’5″	50’8″	420	27371	4430	12-17	50	8675	8’3″	4’2″	8’8″
F245A.2.26/L102*	152616	76’1″	51’6″	420	27371	4430	12-17	50	8454	8’4″	4’2″	8’5″
F245AC.2.24/L213*	165925	61’8″	40’10”	420	27371	4430	12-17	50	3670	8’3″	4’2″	8’7″
F245AC.2.24/L214*	165925	67’10”	40’0″	420	27371	4430	12-17	50	8245	8’3″	4’2″	8’7″

* GB / Load diagram into the brochure - IT / Diagramma di carico nel depliant - FR / Abaque de charge dans le dépliant - DE / Lastdiagramm im Prospekt - ES / Diagrama de carga en el catálogo - NL / Draagvermogen grafiek in het prospectus

Legend

Crane Height

Lifting capacity

Oil tank capacity

Rotational torque (lbs)

Rotational torque (mt)

Hydraulic boom extension

Mounting width

Crane Width

Maximum hydraulic outreach

Crane weight

Pump flow rate (gpm)

Pump flow rate (l/min)

Flow rate (gpm)

Pump flow rate (l/min)

Operating pressure (MPa)

Operating pressure (psi)

Rotation

Strengths

D850 – Digital Multifunction Distributor Bank

Multifunction hydraulic distributor bank with digital anti-saturation system that manages the oil delivered by the pump proportionally among all the functions that require it, thereby ensuring a perfect multifunction and proportional operation.

RCH/RCS – Radio Remote Control

The new-generation digital radio remote control, exclusively compatible with the Fassi product, with wide graphic display to remotely control the functions of the crane and, optionally, the vehicle and the outriggers. It automatically researches the available frequency and allows for continuous interaction between operator and crane.

FX500 – Fassi Electronic Control

A system that electronically controls the load conditions of the crane, of the hydraulic and manual extensions and of the winch, manages the lifting moment with the possibility to activate different work sectors, in relation to the stability condition of the vehicle/crane unit. In addition, it transmits and records the working data.

FSC – Fassi Stability Control

A Fassi system that continuously monitor and ensure the ideal crane working conditions versus the vehicle/crane stability, based on the position of the lateral extension supports of the outriggers. The system is available in 3 versions: L (Low), M (Medium) and S (Super) characterized by different design and functionality to suite all possible configuration of all the different crane models.

CPM – Crane Position Monitoring

A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.

FS – Flow Sharing

A system that proportionally distributes the oil from the pump to all manoeuvres simultaneously. It allows the operation of more functions at the same time by distributing the available oil flow proportionally to the desired functions and at the desired speed guaranteeing the perfect multifunction ability of the hydraulic distributor.

MPES – Multi Power Extension System

A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.

UHSS – Ultra High Stregth Steel

Ultra high strength steel used for the construction of the Fassi structural components, with a high elastic limit, increases structural strength and resistance of the components and at the same time reduces the weight of the crane, to the benefit of the loading capacity of the vehicle which increases.

FWD – Fewer Welds Design

Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.

CQ – Cast Quality

Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components: less weldings, higher performance to fatigue cycles.

RPS – Rack and Pinion System

Exclusive Fassi rack and pinion rotation system with gravity self centering rack guide shoe; no need of external adjustment. Low friction anti-seizure techno-polymer rotation top bush for an extra strong rotation power.

Optional

XF – Extra Fast

A Fassi system that, through dedicated pilot operated check valves in conjunction with the multifunction distributor, allows smoothly, precisely and sensitively movements with less oil heating and higher speeds of operation.

D900 – Digital Multifunction Distributor Bank

High performances multifunction compensated hydraulic distributor bank with digital anti-saturation system thereby ensuring a superlative multifunction and proportional operation. Coupled with the Fassi XF (Extra Fast) system, it guarantees an extraordinary fluidity and speed of action.

ME – Manual Extension

Fassi designed, developed and patented system which, combined with the electronic systems FX500 and FX800, uses a dedicated software to decide whether the load applied to the manual extension can be lifted or not, with reference to the foreseen loads. The system also provides the evaluation of the applied load.

OTC – Oil Temperature Control

Temperature control device electronically controlled, thanks to the analogic temperature sensor fitted inside the oil cooler, is capable of maintaining an optimal temperature of the hydraulic system even in the most stressful condition of use. The temperature value is shown on the user control panel and radio control handle display.

GAS – Grab Automatic Shake

Automatic and adjustable shake system which enables the gradual emptying of the grab by operating through radio remote control. This gradual operation is fulfilled even at high speeds thanks to the automatic control of the grab opening and closing. Moreover, the system efficacy is guaranteed also in case of multiple manoeuvres and it is not affected by Flow Sharing or dynamics.

FL – Full Lift

A system that allows you to select, based on operational needs, “FAST” (recycling valve activated) or “POWER” (recycling valve deactivated) while telescoping the booms. Selection is both via radio control thanks to the icon on the display or on the push button of the main control panel.

OHT – Outrigger Hydraulic Tilt

System which enables the tilt of hydraulically tiltable outriggers through hydraulic servomotor or servoram. Operating the specific tap, oil flow is diverted from the outrigger to the actuator and the ram manoeuvre is easily controlled by the operator, without the need to apply any force.

S900 – Multifunction Distributor Bank

High performances multifunction compensated distributor bank with very high “load-sensing” proportional multifunction ability; all crane functions are perfectly controlled, proportional and smooth. Ideal for the application on heavy range cranes.

Gallery

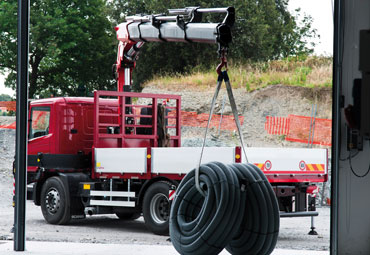

fassi-boom-crane-F245A-active-F245A-e-active-01

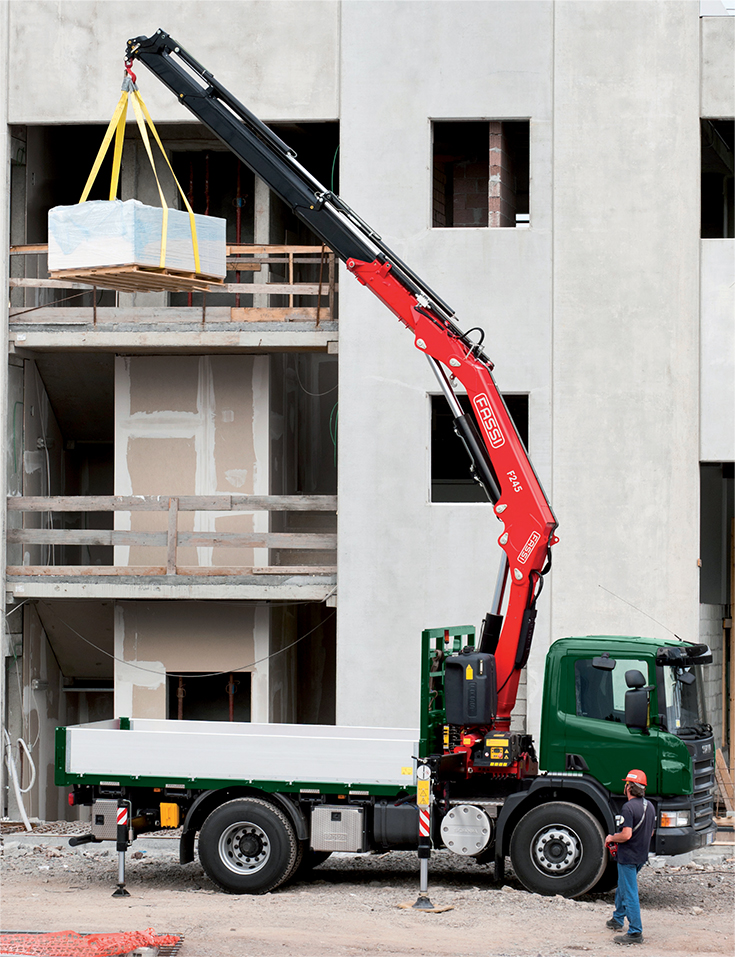

fassi-boom-crane-F245A-active-F245A-e-active-03

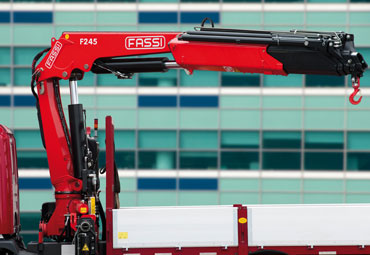

fassi-boom-crane-F245A-active-F245A-e-active-02

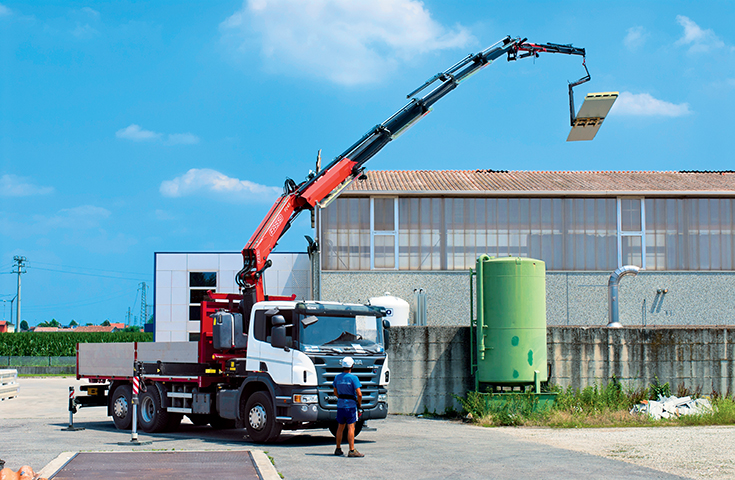

fassi-boom-crane-F245A-active-F245A-e-active-04

Download area

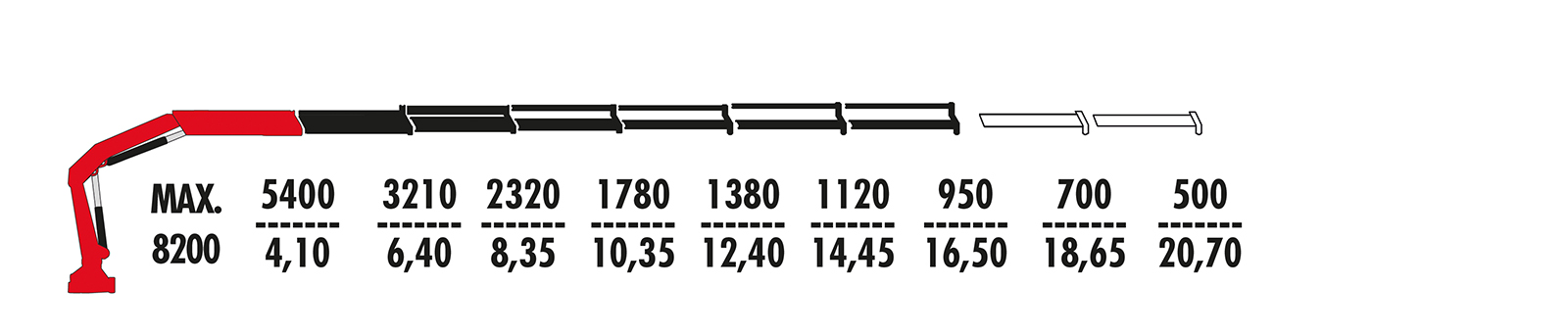

Maximum hydraulic reach
