F1950RAL he-dynamic
F1950RAL he-dynamic
The F1950RAL he-dynamic represents one of the flagships of Fassi's heavy-duty range, a crane designed to deliver extreme power, advanced control and outstanding versatility. With a lifting capacity of up to 127 tm and an outreach of up to 41.30 metres with jib, this model is designed to handle complex operations in which precision and safety are essential.
The technological heart of the crane is represented by the IMC (Integral Machine Control) system, combined with the FX800 electronic unit, guaranteeing intelligent performance management and full operational control. The dual D900 digital distributor and flow-sharing system ensure smooth motion even during combined manoeuvres, while ADC dynamic control maintains stability in all operating conditions.
The F1950RAL also features advanced solutions such as the Prolink double linkage System, which extends operating angles, overcoming obstacles and optimising manoeuvres, and the XP device, which delivers extra power at the most demanding moments. Continuous slew-ring rotation with dual gear motor and dual hydraulic circuit enhance smooth motion and safety, underscoring the role of this model as an elite machine for lifting professionals.
Model specifications
| Modello | kNm | tm | m | m | ° | kNm | MPa | l/min | l | kg | mm | mm | mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F1950RAL.2.28 | 1246 | 127,01 | 24,85 | 19,75 | 360
continuous
|
130,0 | 34,0 | 100+100 | 250+250 | 15750 | 4185 | 2545 | 2730 |
| F1950RAL.2.28 L816L | 1246 | 127,01 | 41,30 | 32,30 | 360
continuous
|
130,0 | 34,0 | 100+100 | 250+250 | 17800 | 4185 | 2545 | 2905 |
Legend
Crane Height
Lifting capacity
Oil tank capacity
Rotational torque (lbs)
Rotational torque (mt)
Hydraulic boom extension
Mounting width
Crane Width
Maximum hydraulic outreach
Crane weight
Pump flow rate (gpm)
Pump flow rate (l/min)
Flow rate (gpm)
Pump flow rate (l/min)
Operating pressure (MPa)
Operating pressure (psi)
Rotation
Strengths
ADC – Automatic Dynamic Control
A control system developed by Fassi automatically controlling the dynamics of all the crane functions maximizing the speed of movement depending on the handled load, allowing only controlled movements and minimizing the structural stress on both the crane and the frame/sub frame of the vehicle.
RCH/RCS – Radio Remote Control
The new-generation digital radio remote control, exclusively compatible with the Fassi product, with wide graphic display to remotely control the functions of the crane and, optionally, the vehicle and the outriggers. It automatically researches the available frequency and allows for continuous interaction between operator and crane.
FSC – Fassi Stability Control
CPM – Crane Position Monitoring
A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.
FS – Flow Sharing
A system that proportionally distributes the oil from the pump to all manoeuvres simultaneously. It allows the operation of more functions at the same time by distributing the available oil flow proportionally to the desired functions and at the desired speed guaranteeing the perfect multifunction ability of the hydraulic distributor.
XF – Extra Fast
MPES – Multi Power Extension System
A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.
XP – Extra Power
A Fassi system that activates an excess of power in the most difficult situations, precisely when it’s necessary, proportionally reducing the speed of the crane movements but, at the same time, increasing the lifting capacity.
PROLINK – Progressive Link
Exclusive Fassi system, built up by a longer outer lifting ram in conjunction with the linkage system, allowing to increase the working angle of the crane above the horizontal line from 10° to 15° according to the model, still maintaining in this configuration the nominal lifting performances. Prolink find application as well on the articulation ram of the jibs, with an increase of the working angle of the jib above the horizontal line from 10° to 20°.
UHSS – Ultra High Stregth Steel
FWD – Fewer Welds Design
Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.
D900 – Digital Multifunction Distributor Bank
OTC – Oil Temperature Control
Temperature control device electronically controlled, thanks to the analogic temperature sensor fitted inside the oil cooler, is capable of maintaining an optimal temperature of the hydraulic system even in the most stressful condition of use. The temperature value is shown on the user control panel and radio control handle display.
FL – Full Lift
A system that allows you to select, based on operational needs, “FAST” (recycling valve activated) or “POWER” (recycling valve deactivated) while telescoping the booms. Selection is both via radio control thanks to the icon on the display or on the push button of the main control panel.
IMC – Integral Machine Control
It is the digital brain of the Fassi cranes which, through sophisticated electronics, in addition to the crane control systems, manages the best operating conditions to ensure the optimal machine performance and control applicable to all the work conditions. It uses a Can bus communication system between the peripheral sensors.
FX800 – Fassi Electronic Control
A system that electronically controls the load conditions of the crane, of the hydraulic and manual extensions and of the winch, with technical and functional characteristics suited to specific crane models, especially those designed to provide high or very high operational performance, even in the most difficult and stressful working conditions. Moreover it manages the lifting moment with the possibility to activate different work sectors, in relation to the stability condition of the vehicle/crane unit.
ADC – Automatic Dynamic Control
A control system developed by Fassi automatically controlling the dynamics of all the crane functions maximizing the speed of movement depending on the handled load, allowing only controlled movements and minimizing the structural stress on both the crane and the frame/sub frame of the vehicle.
RCH/RCS – Radio Remote Control
The new-generation digital radio remote control, exclusively compatible with the Fassi product, with wide graphic display to remotely control the functions of the crane and, optionally, the vehicle and the outriggers. It automatically researches the available frequency and allows for continuous interaction between operator and crane.
FSC – Fassi Stability Control
CPM – Crane Position Monitoring
A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.
FS – Flow Sharing
A system that proportionally distributes the oil from the pump to all manoeuvres simultaneously. It allows the operation of more functions at the same time by distributing the available oil flow proportionally to the desired functions and at the desired speed guaranteeing the perfect multifunction ability of the hydraulic distributor.
XF – Extra Fast
MPES – Multi Power Extension System
A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.
XP – Extra Power
A Fassi system that activates an excess of power in the most difficult situations, precisely when it’s necessary, proportionally reducing the speed of the crane movements but, at the same time, increasing the lifting capacity.
PROLINK – Progressive Link
Exclusive Fassi system, built up by a longer outer lifting ram in conjunction with the linkage system, allowing to increase the working angle of the crane above the horizontal line from 10° to 15° according to the model, still maintaining in this configuration the nominal lifting performances. Prolink find application as well on the articulation ram of the jibs, with an increase of the working angle of the jib above the horizontal line from 10° to 20°.
UHSS – Ultra High Stregth Steel
FWD – Fewer Welds Design
Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.
D900 – Digital Multifunction Distributor Bank
OTC – Oil Temperature Control
Temperature control device electronically controlled, thanks to the analogic temperature sensor fitted inside the oil cooler, is capable of maintaining an optimal temperature of the hydraulic system even in the most stressful condition of use. The temperature value is shown on the user control panel and radio control handle display.
FL – Full Lift
A system that allows you to select, based on operational needs, “FAST” (recycling valve activated) or “POWER” (recycling valve deactivated) while telescoping the booms. Selection is both via radio control thanks to the icon on the display or on the push button of the main control panel.
IMC – Integral Machine Control
It is the digital brain of the Fassi cranes which, through sophisticated electronics, in addition to the crane control systems, manages the best operating conditions to ensure the optimal machine performance and control applicable to all the work conditions. It uses a Can bus communication system between the peripheral sensors.
FX800 – Fassi Electronic Control
A system that electronically controls the load conditions of the crane, of the hydraulic and manual extensions and of the winch, with technical and functional characteristics suited to specific crane models, especially those designed to provide high or very high operational performance, even in the most difficult and stressful working conditions. Moreover it manages the lifting moment with the possibility to activate different work sectors, in relation to the stability condition of the vehicle/crane unit.
Optional
ME – Manual Extension
FX901 – Touch Screen Display
7” graphic color display with touchscreen technology. It allows to display detailed information concerning stabilization and crane working conditions.
JDP – Jib Dual Power
A Fassi system that provides a double level of lift capacity for the hydraulic jib, depending from the hydraulic reach of the crane in vertical condition, controlled by outer boom extensions, ensuring inimitable performances of the hydraulic jib.
Gallery
Download area

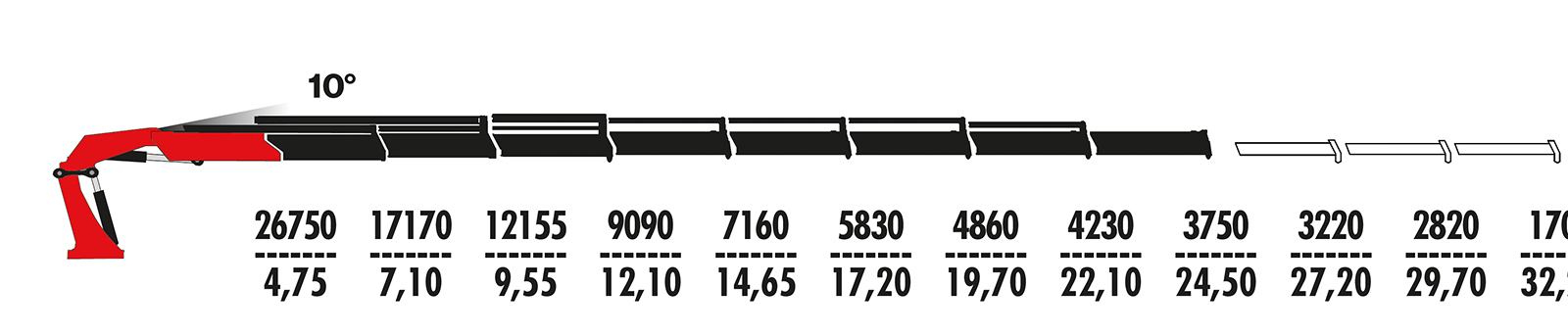

Maximum hydraulic reach
