F145AZ
F145AZ
The F145AZ is a compact crane from the Z series, designed for practicality and manoeuvrability in everyday applications. With a lifting capacity of up to 14 tm and a maximum hydraulic outreach of 8.25 m, it combines compact dimensions with solid operating performance. It is equipped with the FX500 control unit and Hydrocontrol HC/D4 modular distributor.
It can be equipped with optional extras such as the raised control station and the GAS – Grab Automatic Shake – system, for increased comfort and efficiency in operations with the bucket.
Model specifications
| kg/m | kNm | tm | m | m | ° | kNm | MPa | l/min | l | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| F145AZ.0.22 | 137 | 13,97 | 8,30 | 3,15 | 415 | 21,0 | 28,0 | 50 | 90 | 1800 |
| Modello | lbs.ft | ft | ft | ° | lbs.ft | psi | gpm | oil (gal) | lbs |
|---|---|---|---|---|---|---|---|---|---|
| F145AZ.0.22 | 101045 | 27’2” | 10’4” | 415° | 15493 | 4060 | 13 | 24 | 3968 |
Legend
Crane Height
Lifting capacity
Oil tank capacity
Rotational torque (lbs)
Rotational torque (mt)
Hydraulic boom extension
Mounting width
Crane Width
Maximum hydraulic outreach
Crane weight
Pump flow rate (gpm)
Pump flow rate (l/min)
Flow rate (gpm)
Pump flow rate (l/min)
Operating pressure (MPa)
Operating pressure (psi)
Rotation
Strengths
FX500 – Fassi Electronic Control
A system that electronically controls the load conditions of the crane, of the hydraulic and manual extensions and of the winch, manages the lifting moment with the possibility to activate different work sectors, in relation to the stability condition of the vehicle/crane unit. In addition, it transmits and records the working data.
CPM – Crane Position Monitoring
A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.
UHSS – Ultra High Stregth Steel
FWD – Fewer Welds Design
Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.
CQ – Cast Quality
Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components: less weldings, higher performance to fatigue cycles.
RPS – Rack and Pinion System
Exclusive Fassi rack and pinion rotation system with gravity self centering rack guide shoe; no need of external adjustment. Low friction anti-seizure techno-polymer rotation top bush for an extra strong rotation power.
MOL – Manual Outriggers Lock
A security system that detects the engagement of the safety latch of the primarily locking pin of side manually extendable outrigger supports, at rest in the transport position. It is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.
FSC/M – Fassi Stability Control/Medium
System that detects the left and right working areas of the vehicle body and manages the lifting moment limiting device for two working zones. The system also manages two (M1 version) or three (M2 version) different activation levels for the lifting moment limiting device according to the outrigger support position.
FX500 – Fassi Electronic Control
A system that electronically controls the load conditions of the crane, of the hydraulic and manual extensions and of the winch, manages the lifting moment with the possibility to activate different work sectors, in relation to the stability condition of the vehicle/crane unit. In addition, it transmits and records the working data.
CPM – Crane Position Monitoring
A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.
UHSS – Ultra High Stregth Steel
FWD – Fewer Welds Design
Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.
CQ – Cast Quality
Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components: less weldings, higher performance to fatigue cycles.
RPS – Rack and Pinion System
Exclusive Fassi rack and pinion rotation system with gravity self centering rack guide shoe; no need of external adjustment. Low friction anti-seizure techno-polymer rotation top bush for an extra strong rotation power.
MOL – Manual Outriggers Lock
A security system that detects the engagement of the safety latch of the primarily locking pin of side manually extendable outrigger supports, at rest in the transport position. It is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.
FSC/M – Fassi Stability Control/Medium
System that detects the left and right working areas of the vehicle body and manages the lifting moment limiting device for two working zones. The system also manages two (M1 version) or three (M2 version) different activation levels for the lifting moment limiting device according to the outrigger support position.
Optional
D850 – Digital Multifunction Distributor Bank
Multifunction hydraulic distributor bank with digital anti-saturation system that manages the oil delivered by the pump proportionally among all the functions that require it, thereby ensuring a perfect multifunction and proportional operation.
RCH/RCS – Radio Remote Control
The new-generation digital radio remote control, exclusively compatible with the Fassi product, with wide graphic display to remotely control the functions of the crane and, optionally, the vehicle and the outriggers. It automatically researches the available frequency and allows for continuous interaction between operator and crane.
FS – Flow Sharing
A system that proportionally distributes the oil from the pump to all manoeuvres simultaneously. It allows the operation of more functions at the same time by distributing the available oil flow proportionally to the desired functions and at the desired speed guaranteeing the perfect multifunction ability of the hydraulic distributor.
D900 – Digital Multifunction Distributor Bank
OTC – Oil Temperature Control
Temperature control device electronically controlled, thanks to the analogic temperature sensor fitted inside the oil cooler, is capable of maintaining an optimal temperature of the hydraulic system even in the most stressful condition of use. The temperature value is shown on the user control panel and radio control handle display.
GAS – Grab Automatic Shake
Automatic and adjustable shake system which enables the gradual emptying of the grab by operating through radio remote control. This gradual operation is fulfilled even at high speeds thanks to the automatic control of the grab opening and closing. Moreover, the system efficacy is guaranteed also in case of multiple manoeuvres and it is not affected by Flow Sharing or dynamics.
OHT – Outrigger Hydraulic Tilt
System which enables the tilt of hydraulically tiltable outriggers through hydraulic servomotor or servoram. Operating the specific tap, oil flow is diverted from the outrigger to the actuator and the ram manoeuvre is easily controlled by the operator, without the need to apply any force.
S800 – Multifunction Distributor Bank
Multifunction distributor bank ideal for the application on small-medium range cranes, with specific spools set up in relation with the characteristics of the crane functions.
S900 – Multifunction Distributor Bank
High performances multifunction compensated distributor bank with very high “load-sensing” proportional multifunction ability; all crane functions are perfectly controlled, proportional and smooth. Ideal for the application on heavy range cranes.
FSC/H – Fassi Stability Control/High
System that detects the left and right working areas of the vehicle body and manages the lifting moment limiting device for two working zones. The system also manages different activation levels for the lifting moment limiting device, according to the combination between the positions of crane and supplementary outriggers.
Gallery
Download area

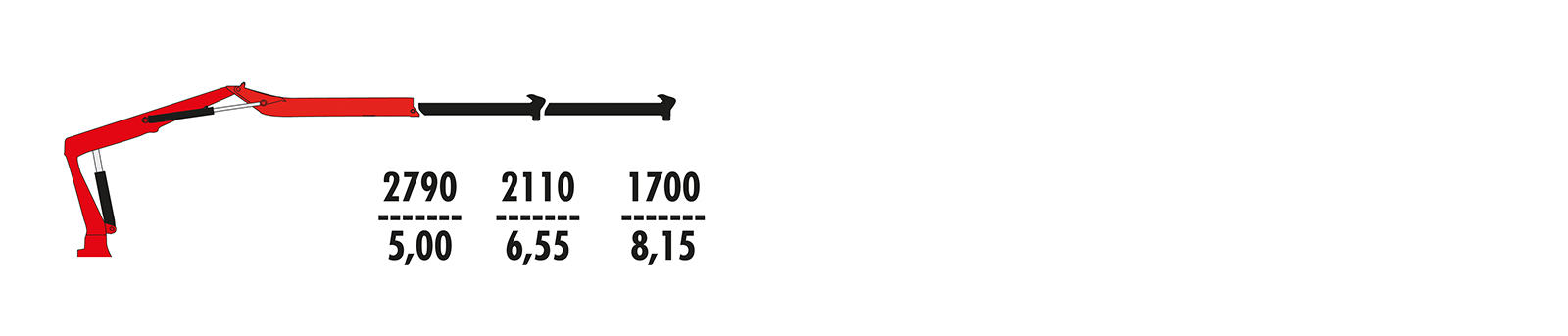

Maximum hydraulic reach
